Product Code: PP244

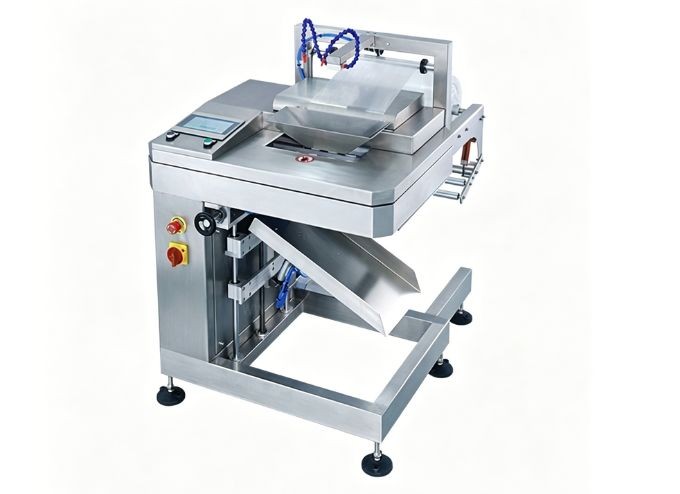

This automatic tube film form fill seal packaging machine uses PE tube film as raw material, dedicated to manufacturing large collective bags for packaging batches of small finished sachets. It can be fitted with different dosing devices to suit diverse packaging requirements. Capable of full-automatic operation, it handles granule, paste and liquid products efficiently, ideal for secondary collective packaging of small sachet goods with outstanding versatility.
Related Video
This packaging machine apply for PE tube film, which is designed to produce large collective bags for packing multiple small finished sachets inside. Configure the different dosing device for various product packaging, the machine supports fully automatic packaging for a wide range of products including granule, pastes and liquids.
Features
l Tube Film pouch form fill seal
l Stainless steel 201/SS304 construction

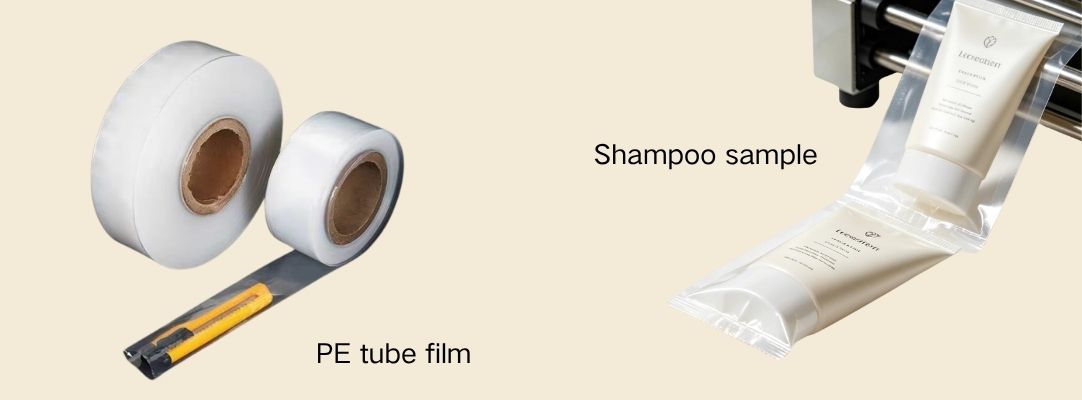

l Apply for PE tube film
l Quick, tool less pouch changing over
l PLC setting up for pouch length change, without changing of component for pouch width
l Pulse PE film sealing device enable more stable sealing quality
l Configure the different dosing device for various product packaging
l Horizontal Discharge Conveyor
l Penumatic Vibration Device
l Penumatic Timing Hopper
l Counting Function
l Hole Punching Device
l Bag Mouth Flattening Function
l Counting / Infeeding Conveyor
Advantages
l For big bag secondary packaging for sachets or sticks
l Small occupation,user-friendly design
Technical Specification
| Parameter Description | 1T-LT-400 |
| Max Film Width(mm) | 350 |
| Pouch Size-Length(mm) | 70-500 |
| Pouch Size-Width(mm) | 60-350 |
| Standard Sealing Width(mm) | 1 |
| Packaging Speed(Sachets/min) | 5-15 |
| Power Consumption(kW) | 0.7 |
| Approximate Net Weight(kg) | 165 |
| Dimension(mm) | 1150*885*1160 |
| Power Requirement(V/Hz) | 220V 50/60HZ |
| Compress Air Requirement | 0.6 |
| Compress Air Consumption | 0.3 |
