Product Code: PP312A-2FIC
Model PP312A-2F1C features 2-head servo follow-up filling, manual pre-capping and auto capping for 40–55 BPM production.
Related Video
Suitable for filling free-flowing, viscous liquids and pastes, compatible with narrow-mouth bottles fitted with pre-threaded caps including spray caps, pump heads, round caps and duckbill caps.
Features
lApply for liquid products, such as viscous liquids, pasty products, or free-flowing liquids
lApply for bottles with small mouths and pre-threaded caps, such as spray caps, pump heads, round caps, and duckbill caps

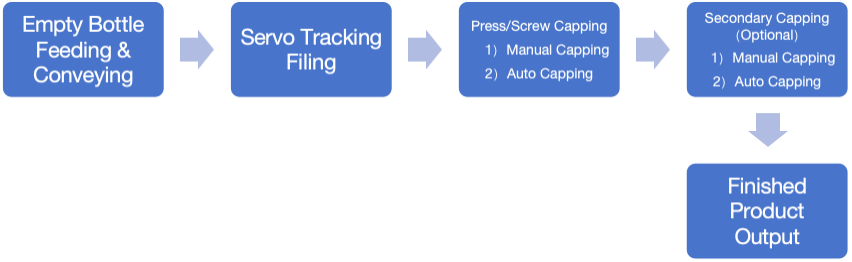

l Automatic continuous motion filling and then capping processes
l Compatible with a certain range of bottles of different shapes and sizes
lConfigured servo gear pump for filling, easy to adjust the filling volume
l PLC & touch screen HMI control
l Stainless steel 304 construction for main parts
l Stainless steel 304 construction for product touching parts
l Servo motor speed control conveyor
l No bottle, no filling interlock
l No cap no capping interlock
l Filling hopper with level sensor, low level alarm, and automatic stop
lAutomatic servo driven 4-wheel cap screwing device
lAutomatic servo-driven tracking cap screwing device
lAutomatic servo-driven cap pressing device

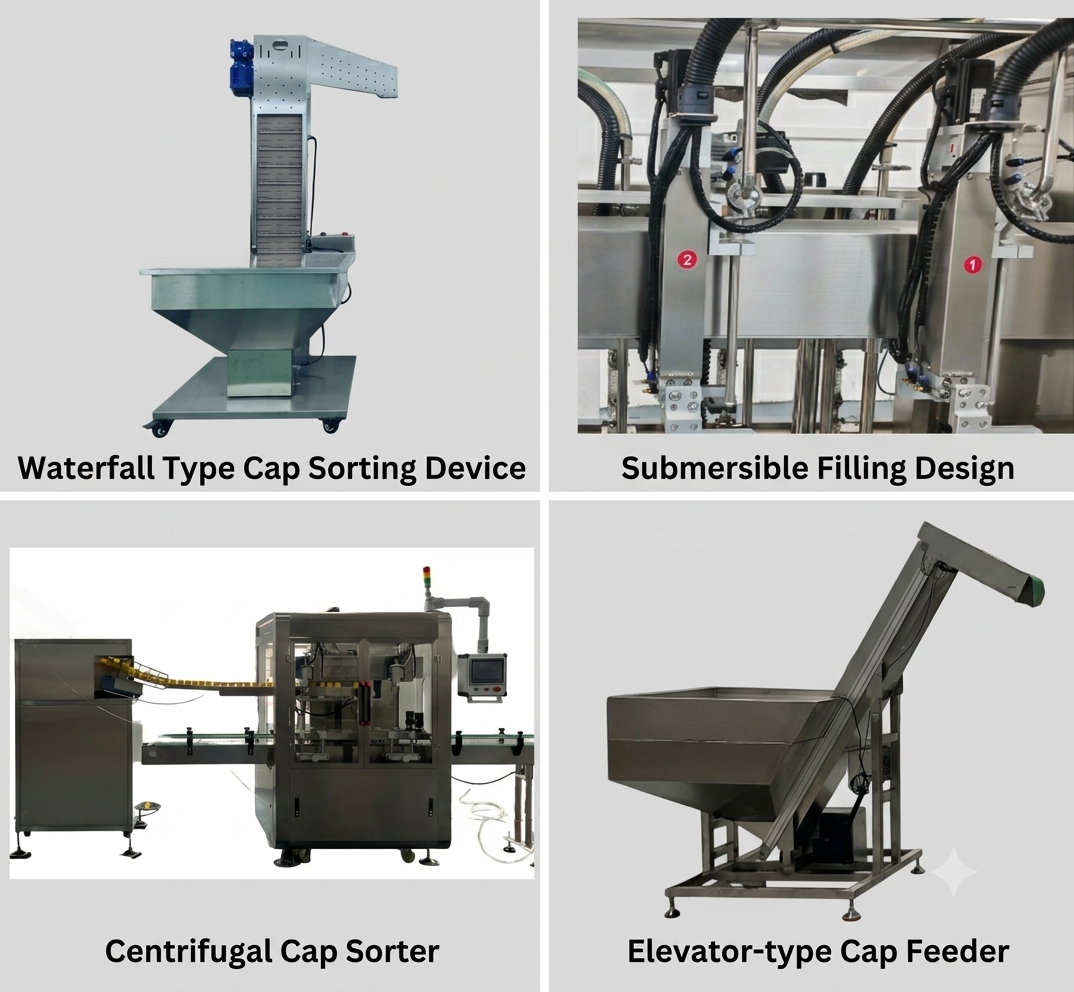

lWaterfall type cap sorting device
lSubmersible filling design
lElevator-type cap feeder
lCentrifugal cap sorter

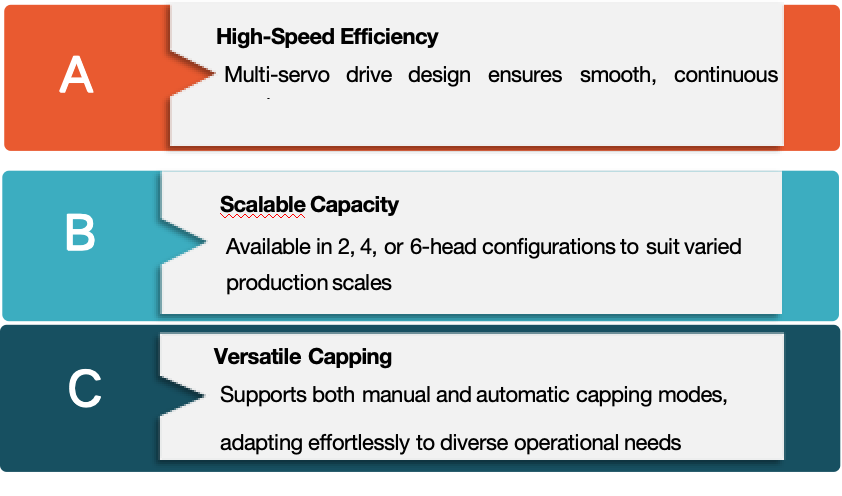

Advantages
Technical Specification
Catalogue/PP312 | PP312A-2F1C | PP312A-6F4C |
Filling Method | Contiguous | Contiguous |
Filling Pump | Servo-driven 2-head | Servo-driven 6-head |
Cap Screwing Method | Intermittent | Contiguous |
Capping Head | 4-wheel capping | 2-head screw capping |
Cap Pressing Method | NA | Contiguous |
Pressing Head | NA | 2-head press capping |
Filling Speed | Approx. 40-55 BPM | Approx. 80-120 BPM |
Filling Range | 200ml-5000ml(pump configuration based on actual project) | |
Filling Precision | ≤±1% for liquid products, ≤±2% for viscous products | |
Hopper Capacity | 150L | 300L |
Power Supply | AC380V, 3P, 50/60Hz, 7kW | AC380V, 3P+N+E, 50/60Hz, 15kW |
Compressed Air Supply | 0.6-0.8MPa | |
