Product Code:PP354-12D28S;PP354-12D42S
This machine adopts 12mm rollers with 2-layer or 3-layer structure, capable of sorting sachets at a rate of 400 to 600 sachets per minute.

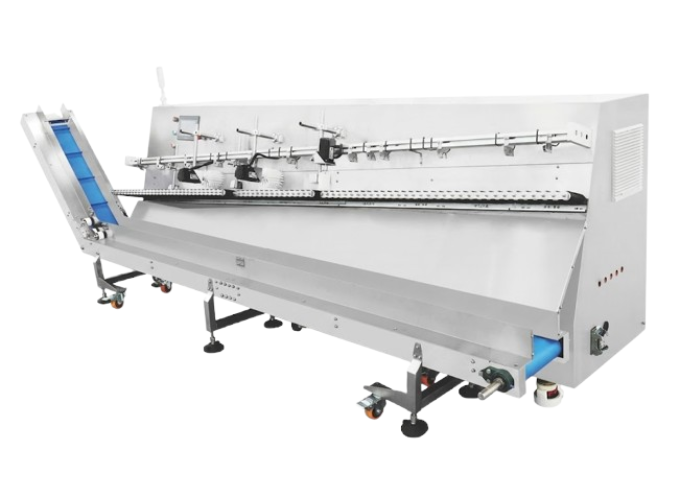

PP354A Intelligent Sorting Machine is a professional equipment integrating storage, feeding and bag handling functions, which can sort disordered sachets with length of 84-290mm, with a speed range of 80-600 bags/min, and features small footprint and compact appearance.
Related Video
Apply for sorting and arranging for sachets or bags, integrated storage, feeding, bag handling – compact footprint and appearance
Workng Processes
Features
l Sorting and arranging for sachets or bags, integrated storage, feeding, bag handling – compact footprint and appearance
l Cabinet-style with built‑in transmission – safe operation, easy cleaning, no sanitary dead corners
l Modular design for easy maintenance and troubleshooting
l PLC and touchscreen HMI control
l Optional for versatile feeding device (return bins, pre-hoppers, belt conveyors) with high customizability to suit any production need
l Anti-fingerprint coated frame, 4mm steel structure – sturdy, durable, and neat
l 29mm large diameter rollers, suitable for large‑sized products
l Patented arc shaped inclined feeding – stable and reliable handling
l Multi axis servo intelligent control – high‑speed precision, high automation
l Split roller design for quick product changeover
l Photoelectric sensors for real‑time motion monitoring and feedback
l Fully automatic dispersing, sequencing, and spacing – no manual intervention
l Multiple configurations – standalone or integrated with cartoning/bagging lines
l Synchronous belt drive, gear transmission noise below 70dB – low‑noise design
l Plexiglass protective cover for safe and sanitary operation
l Optional alignment, same‑face, and rejection devices to meet diverse arranging needs
l Return bins for sachets storage
l Direction orienter for aligns products in the same direction
l Surface turner for orients products to the same face/side
l Erecting device for erecting sachets to the upright position
l Spacing conveyor for adjusting product pitch via variable-speed rollers
l Accumulation hopper for collecting and temporarily buffers counted products for downstream processing
Advantages
lEquipped with arc-shaped climbing sorting conveyor featuring patented arc sorting structure to guarantee stable material handling performance.
lFitted with rollers of minimum 12 mm diameter – the smallest roller size available on the market – enabling stable sorting and conveying of small pouches and preventing pouch jumping.
lAdopts one photoelectric sensor to control eight rollers and adjust roller speed, effectively lowering the probability of package overlapping.
lDifferential speed unit eliminates overlapping, trailing and skewed packages. Three detection points with fiber optic sensors perform real-time inspection and trigger automatic rejection of defective packages.
lSynchronous gripping robot arm is driven by a maglev motion module, fitted with Italian-imported suction cups equipped with rotation and fine-tuning adjustment functions.
Technical Specification
Catalogue/PP354-XXXX | 29D10S | 29D14S | 12D10S | 12D14S |
Roller Spec（mm） | 29 | 29 | 12 | 12 |
Servo Quantity | 10 | 14 | 10 | 14 |
Production Capacity (Bags/Min) | 80-120 | 100-200 | 80-120 | 100-200 |
Applicable Sachet Length(mm) | 145-290 | 145–290 | 85–168 | 84–168 |
Rated Power(kw) | 4.7 | 6.2 | 4.7 | 6.2 |
Machine Weight | ≈500KG | ≈650KG | ≈300KG | ≈287KG |
Channel Structure | Single-layer | Single-layer | Single-layer | Single-layer |
Catalogue/PP354-XXXX | 12D20S | 12D28S | 12D42S |
Roller Spec（mm） | 12 | 12 | 12 |
Servo Quantity | 20 | 28 | 42 |
Production Capacity (Bags/Min) | 180–300 | Max400 | Max600 |
Applicable Sachet Length(mm) | 84–168 | 84–168 | 84–168 |
Rated Power(kw) | 8.7 | 8.7 | 8.7 |
Machine Weight | ≈850KG | ≈1220KG | ≈1420KG |
Channel Structure | Single-layer | Double-layer | Triple-layer |
