Product Code: PP338

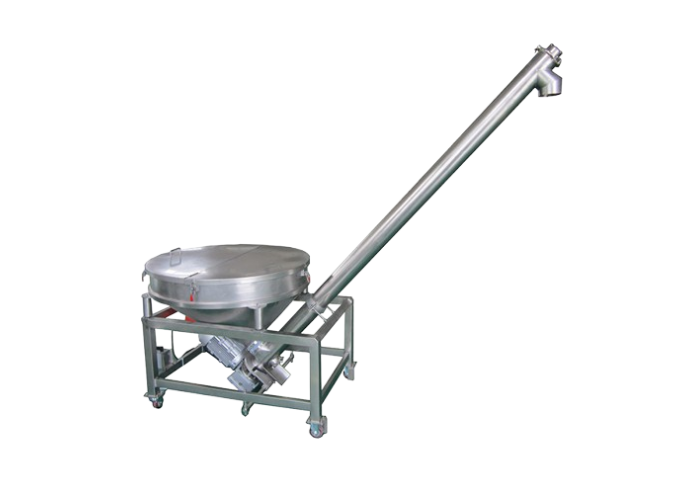

Screw feeder with round hopper design, suitable for powder and small granule conveying. Features stainless steel 304 construction, vibrating hopper for smooth feeding, and tool-less design for easy cleaning.
Related Video
Suitable For elevating powdery materials, such as flour, matcha powder, coffee powder, protein powder, etc.
Features
Apply for powder or small granule loading
Stainless Steel 304 construction for frame and products touching parts
Configure with round shape hopper with vibrator
Tool less design for easy cleaning

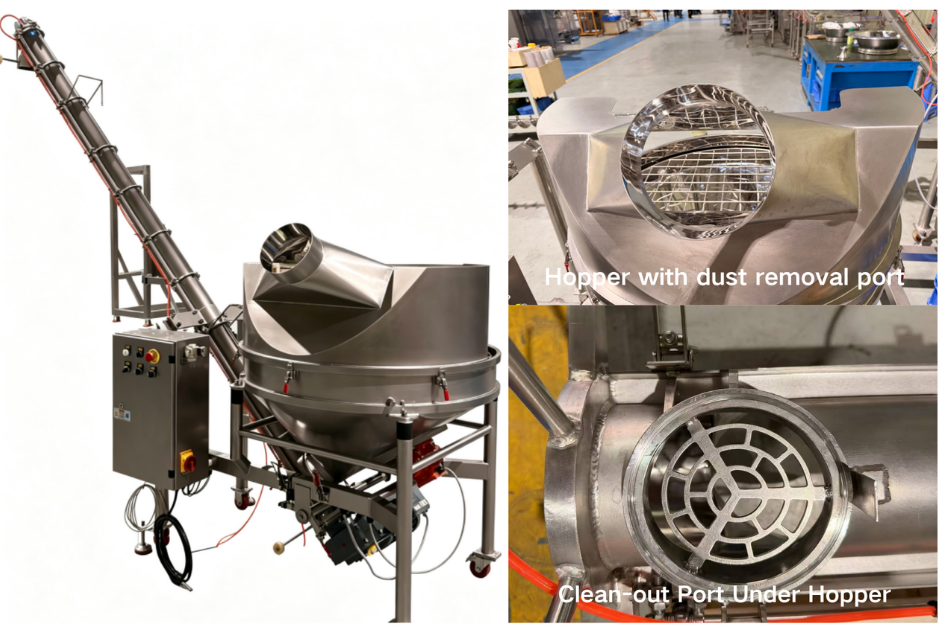

Clean out access for thorough removal of residual material
Motor-driven hopper vibration device, prevent material bridging and sticking
Air-purged bearing system for cleaning the area around the bearings by compressed air
Dust extraction hood with exhaust pipe connection

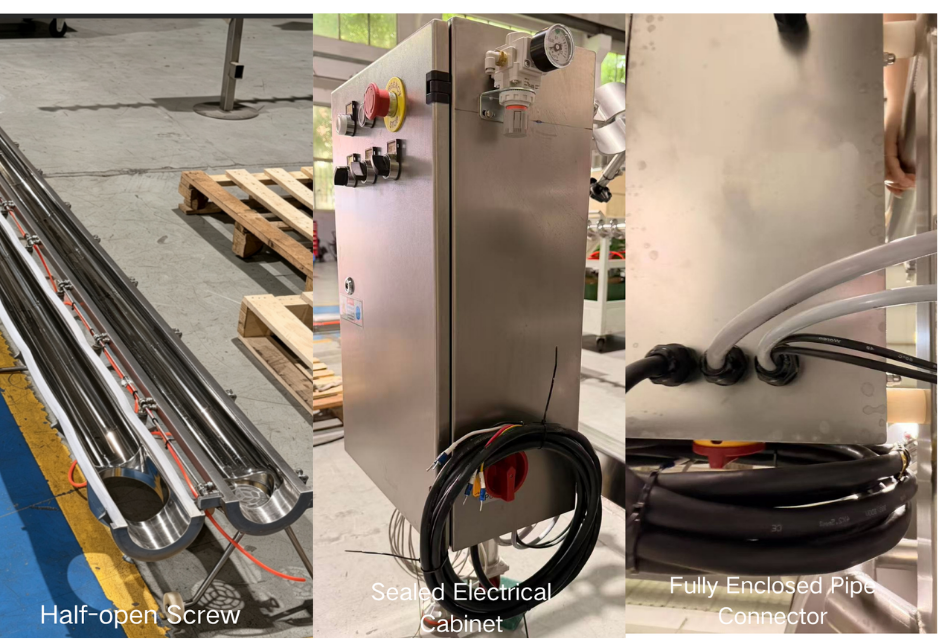

Sealed stainless steel electrical cabinet
Explosion-Proof Motors
Auger housing with semi-open design for easy cleaning
Technical Specification
Model No. | 4N338-S1 | 4N338-S3 | 4N338-S5 |
Loading Capacity | 1-2 m³/h | 2-3 m³/h | 3-5 m³/h |
Pipe Diameter | 89 mm | 114 mm | 141 mm |
Hopper Volume | 110 L | 230 L | 230 L |
Loading Height | 1650 mm | 1900 mm | 1900 mm |
Construction | SS304 | ||
Power Supply | 380VAC 3P+N+E 50HZ | ||
Feeding Vibrator | Yes | ||
