Product Code: PP204

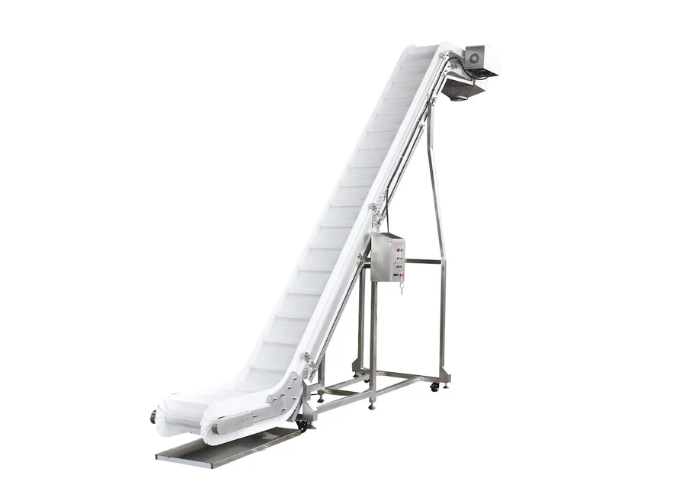

This S-shaped inclined conveyor is engineered for vertical elevation of free-flowing granular materials and irregularly shaped solid products.
Related Video
It is applied to the feeding and conveying of granular products to the dosing system, such as puffed food, cheese, salad greens, pet food and other similar materials.
Features
l Filling hopper with level sensor, low level alarm, and automatic stop
l Applicable for free-flowing granules and irregularly shaped solid products
l S-shaped structural design for space-saving vertical elevation
l Frequency-controlled variable speed drive for adjustable conveying rate
l Aviation plug quick-connector for rapid electrical installation and maintenance
l Constructed of 304 stainless steel, complying with food-grade hygiene requirements
l Variable frequency motor drive ensures stable equipment operation

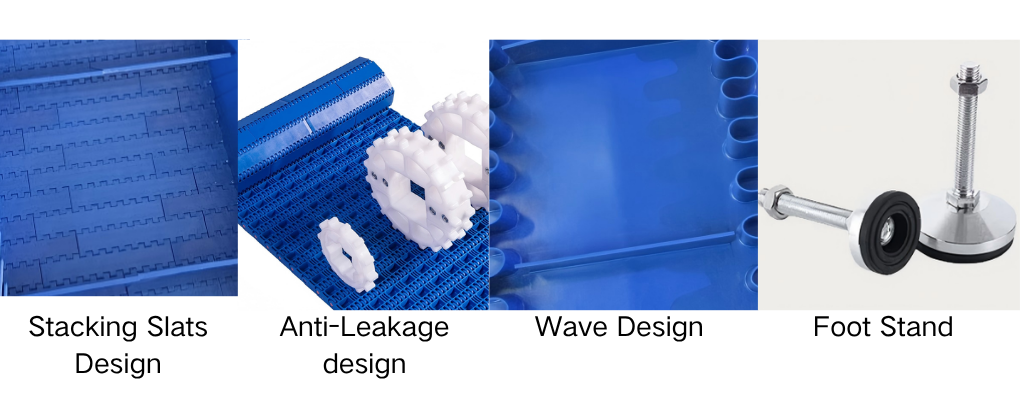

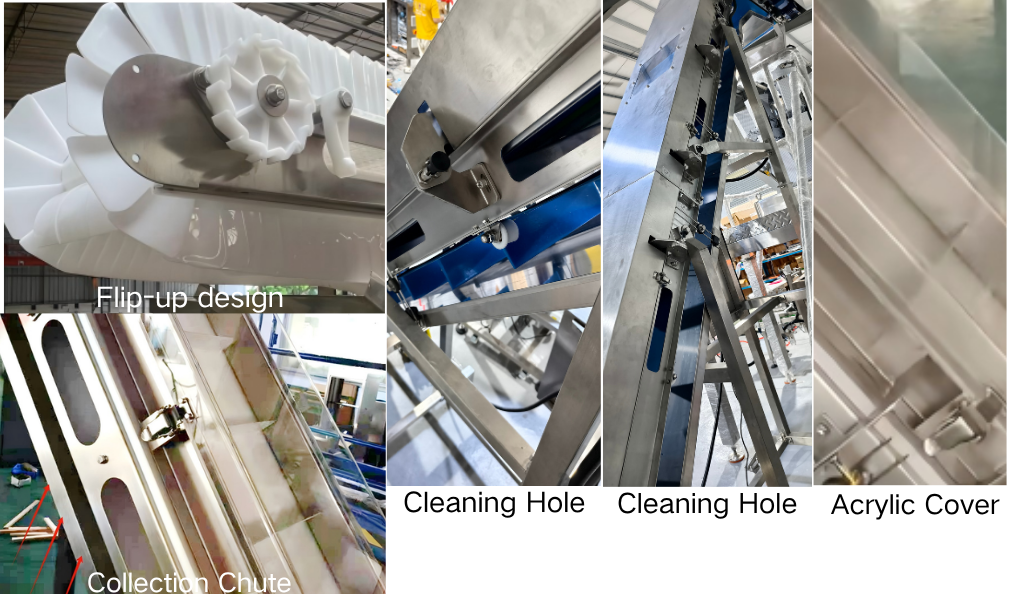

l Flip-up design avoids material residue buildup inside the conveyor
l Modular design facilitates convenient installation and routine maintenance

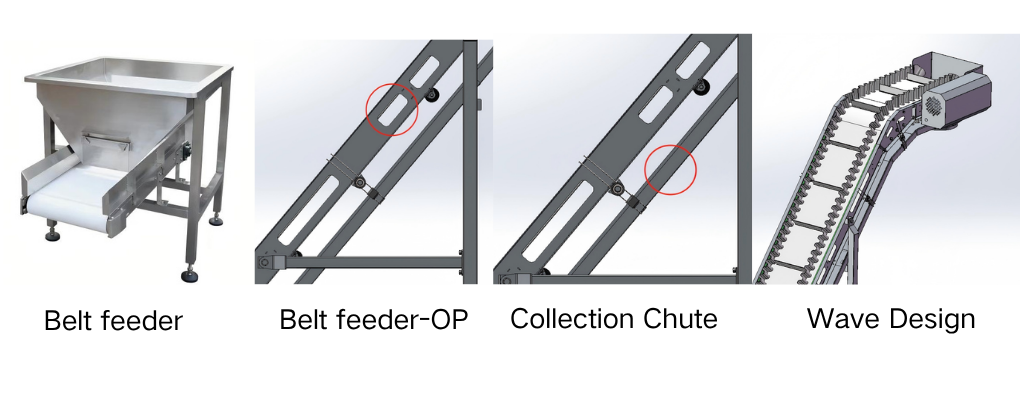

l Belt Feeder

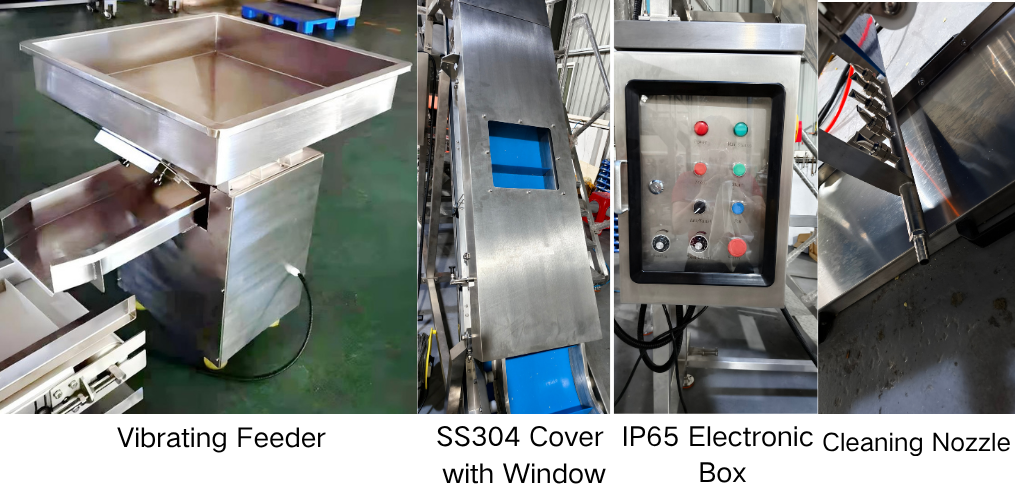

l Vibrating Feeder
l Cleaning Hole for water washing
l Cleaning Nozzle for self cleaning
l IP 65 Electronic Cabinet for water cleaning
l SS304 cover with or without window with food grade

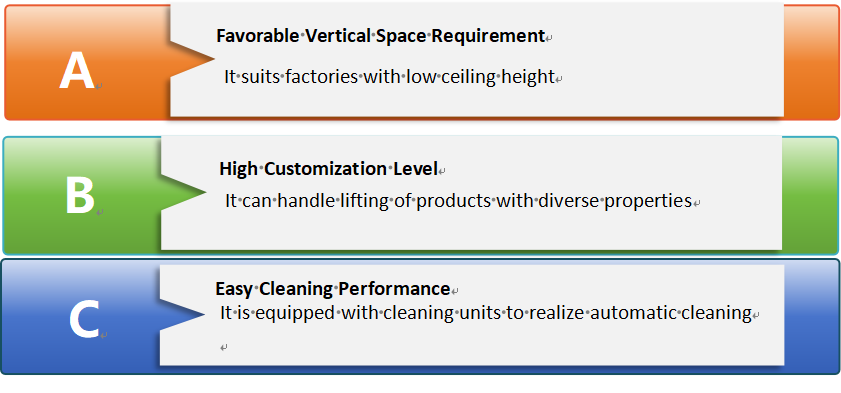

Advantages
Technical Specification
1）PP Chain Plate Conveyor Belt
Catalogue / PP204 | 5J204-xxxB | 5J204-xxxS | 5J204-xxxC | 5J204-xxxP |
Conveyor Belt Type | PP Chain Plate | |||
With Vibrating Feeder | × | |||
Remote Control | × | × | × | √ |
Water/Material Chute | × | √ | √ | √ |
Rinsing Cleaning Device | × | × | √ | √ |
Inlet Height | ＞400 mm | |||
Outlet Height | 2800–3100 mm | |||
Power Supply | 1.5 kW, AC 220V, 50Hz | |||
2）PVC Conveyor Belt
Catalogue / PP204 | 5J204-xxxB | 5J204-xxxS | 5J204-xxxC | 5J204-xxxP |
Conveyor Belt Type | PVC Belt | |||
With Vibrating Feeder | × | |||
Remote Control | × | × | × | √ |
Water/Material Chute | × | √ | √ | √ |
Rinsing Cleaning Device | × | × | √ | √ |
Inlet Height | ＞400 mm | |||
Outlet Height | 2800–3100 mm | |||
Power Supply | 1.5 kW, AC 220V, 50Hz | |||
3）PU Conveyor Belt
Catalogue / PP204 | 5J204-xxxB | 5J204-xxxS | 5J204-xxxC | 5J204-xxxP |
Conveyor Belt Type | PU Belt | |||
With Vibrating Feeder | × | |||
Remote Control | × | × | × | √ |
Water/Material Chute | × | √ | √ | √ |
Rinsing Cleaning Device | × | × | √ | √ |
Inlet Height | ＞400 mm | |||
Outlet Height | 2800–3100 mm | |||
Power Supply | 1.5 kW, AC 220V, 50Hz | |||
