Product Code: PP247
It is applicable for granule or other irregular solidity elevating.
Related Video

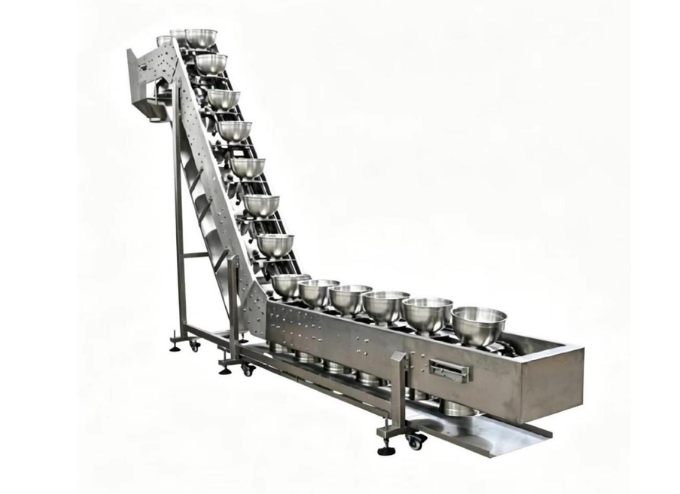

This equipment is designed for vertical lifting and feeding of granular materials, irregular lumpy solids, and liquids. It is particularly well-suited for products that cannot be handled by conventional automatic feeding systems.
Features
l Suitable for lifting granules, irregular solids and liquids
l Material of elevator made of stainless steel 304
l Material of bowl made of stainless steel 304

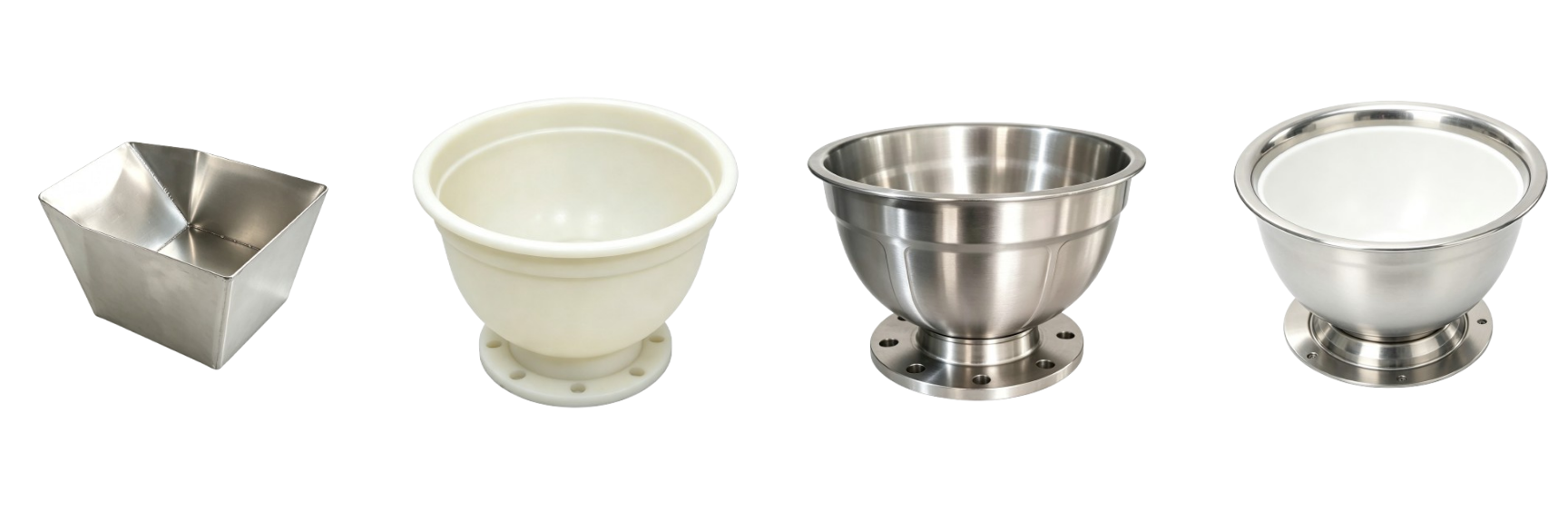

l Various types bowl designs based on products features
l Optional for double lane out feed, for higher feeding capacity
Advantages
High flexibility enables it to address a wide range of challenges inherent to conventional automated systems:
l Suits low ceiling space: Flexible bridge linking weighing meters and packaging machines
l Non-full-automatic weighing compatible products: Manual feeding support for fully automated packaging
Technical Specification
Catalogue/4K-xxxx | 3A-BTE-2-1700 | 3A-BTE-1-1300 | 3A-SBTE-34-1300
|
Volume of bow | 2 Liter | 1 Liter | 0.34 Liter |
Bowl Material | SS304 | ||
Height of loading outlet | 1700mm | 1300mm | 1300mm |
Rated Speed | 30 bowls/min | ||
Power Supply | AC220VV ‚50 HZ | ||
Capacity | 0.75kw | ||
Catalogue/4K-xxxx | 3A-BTE-2-1700T (Double-outlet model) | 3A-BTE-6-1700 |
Volume of bow | 1.4 Liter | 6 Liter |
Height of loading outlet | 1700mm | 1700mm |
Rated Speed | 30 bowls/min | |
Power Supply | AC220VV ‚50 HZ | |
Capacity | 1.4kw | 0.75kw |
