Product Code:PP220

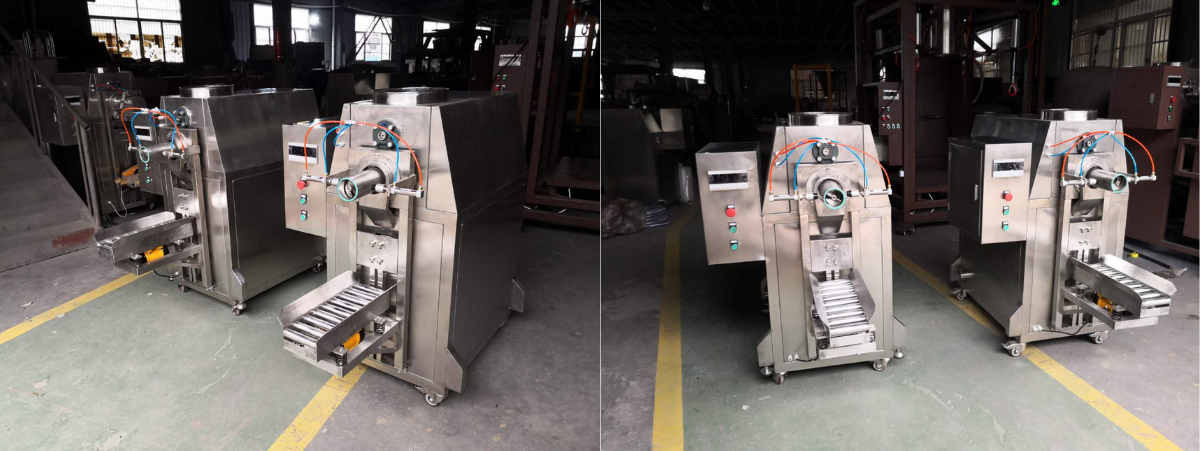

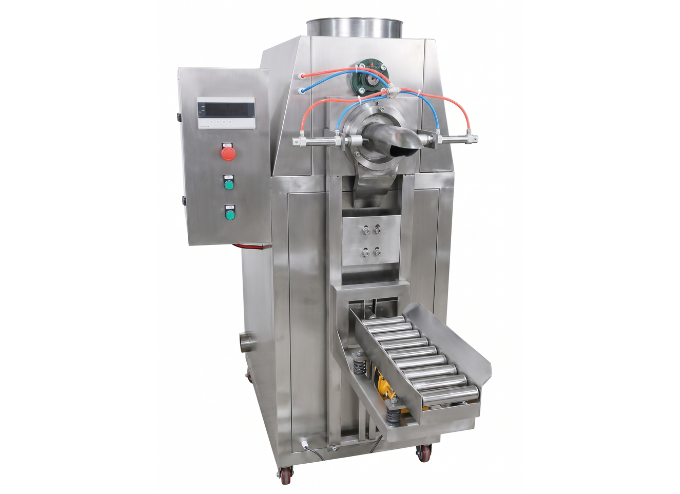

Screw filling machine for valve bags, designed for powder materials with weighing measurement and stainless steel 304 construction.
Related Video
This machine is designed for quantitative valve bag packaging of powdery and fine granular materials, suitable for chemical industry products such as calcium carbonate, graphite, cement, lime and mineral powder, food and agricultural products including starch, flour, sugar, cocoa powder, grains and feed, as well as pharmaceutical raw materials, detergents and additives used in pharmaceutical and daily chemical industries.

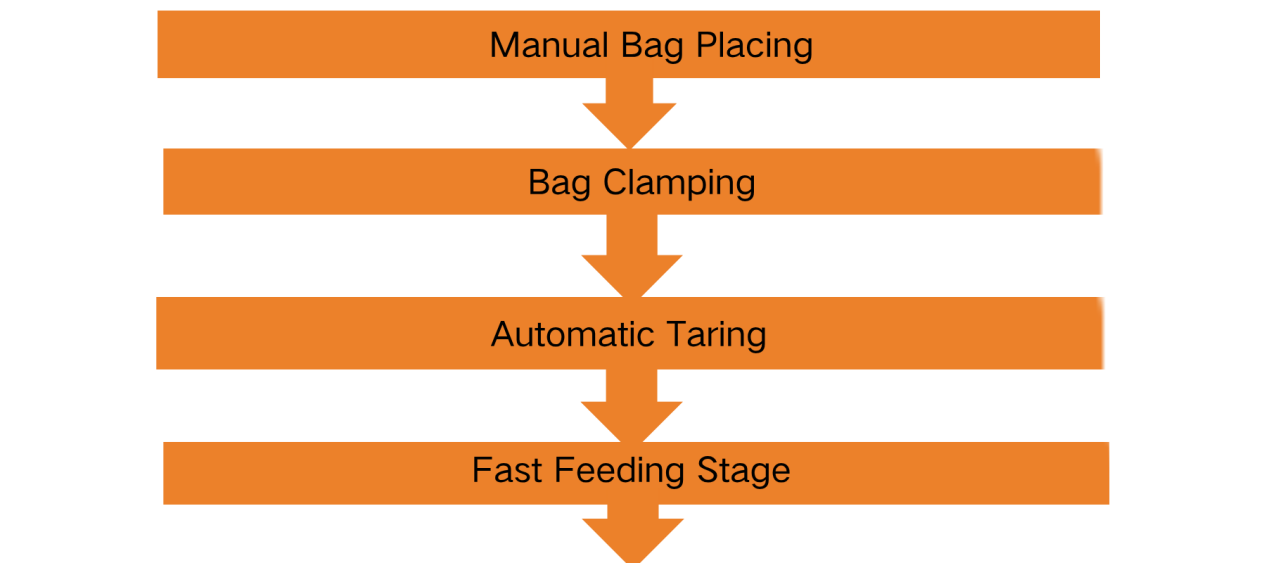

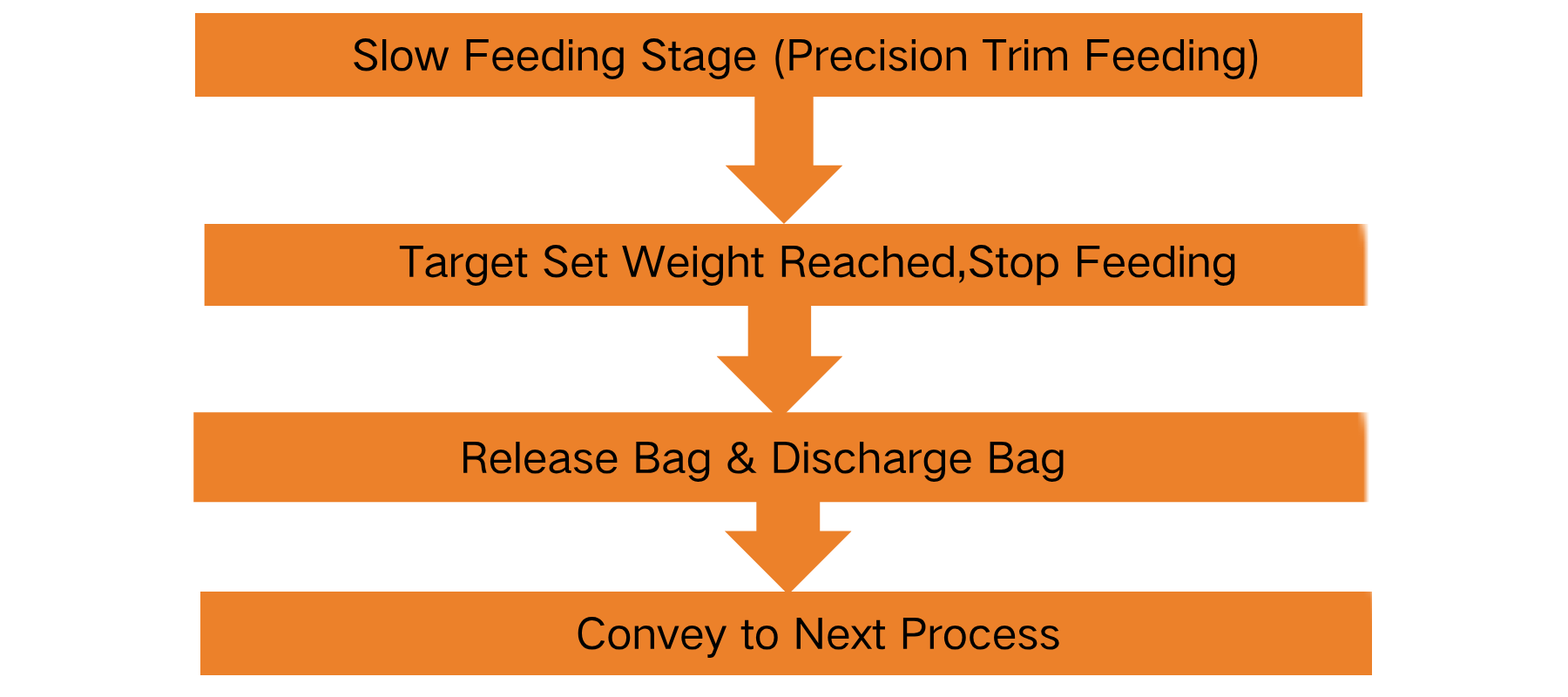

Workng Processes

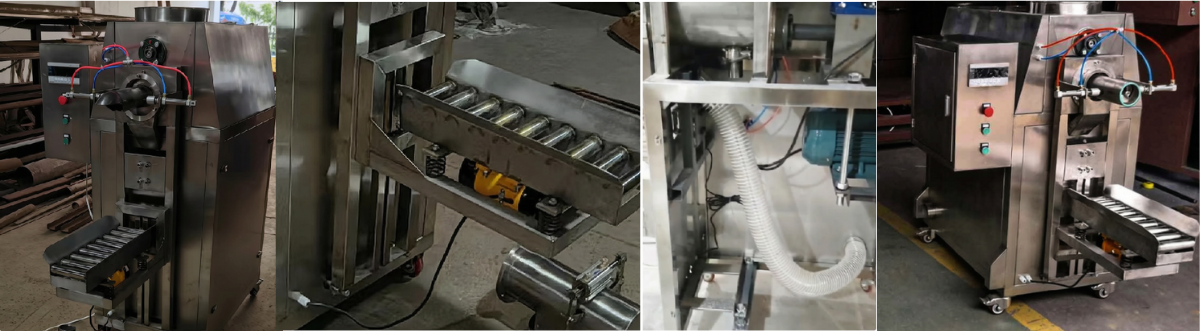

Features
l Apply for valve bag screw fill with powder by way of weighing measurement
l Painted frame for motors mounting
l Stainless steel 304 for surface and product touching parts
l Rubber coating support and casters
l High precise load cell and high-performance processor
l Adjustable filling speed by control of frequency convertor
l Dust collecting interface
l Height adjustable bag support
l Modular controller with simple setting for different batch
l 3 stages of filling speed setting‚ faster and better accuracy
l Intelligent automatic tare‚ zero setting and simple initial weight calibration
l Mechanical screw end seal design‚ no powder leak to bearing
l Height adjustable and vibrating bag support
l Anti-blocking impeller infeed interface
l Compatible with both valve bags and open-mouth bags
Advantages
l High Precision with Intelligent Weight Control
Equipped with a high-precision load cell and 3-stage variable speed control via frequency converter, combined with intelligent auto-tare and zero tracking
l Powder-Specific Design for Superior Durability
Mechanical screw end seal effectively prevents powder leakage into bearings. SUS304 stainless steel, offering excellent corrosion resistance and easy cleaning.
l Flexible Operation and Easy Integration
Modular controller for quick storage and recall of different batch parameters,adjustable bag support and casters, easy to accommodate various bag sizes and move within the production line
Technical Specification
lVB Series
Catalogue/3U-VB-XX | 3U-VB-50 | 3U-VB-50T | 3U-VB-50D | 3U-VB-50DT |
Filling Range (kg) | 10–50 | |||
Filling Speed (bags/min) | 1–5 | 2–10 | ||
Filling Accuracy (±%) | 0.1–0.5 | |||
Number of Spouts | 1 | 2 | ||
Bag Height (mm) | 300–1000 | |||
Bottom Vibration | No | Yes | No | Yes |
Anti‑bridging Device | No | Yes | No | Yes |
Valve/Open-mouth Dual-use | No | |||
Power Supply | 380V, 3Phase, 50Hz | |||
Power Consumption (kW) | 5 | 10 | ||
Air Consumption (m³/min) | 0.1 | 0.15 | ||
lVOB Series
Catalogue/3U-VOB-XX | 3U-VOB-50 | 3U-VOB-50T |
Filling Range (kg) | 10–50 | |
Filling Speed (bags/min) | 1–5 | |
Filling Accuracy (±%) | 0.1–0.5 | |
Number of Spouts | 1 | |
Bag Height (mm) | 300–1000 | |
Bottom Vibration | No | Yes |
Anti‑bridging Device | No | Yes |
Valve/Open-mouth Dual-use | Yes | |
Power Supply | 380V, 3Phase, 50Hz | |
Power Consumption (kW) | 5 | |
Air Consumption (m³/min) | 0.1 | |
