Product Code:PP191

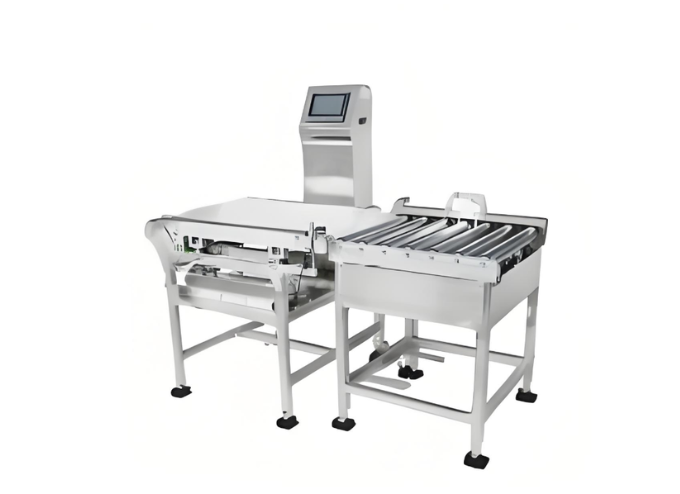

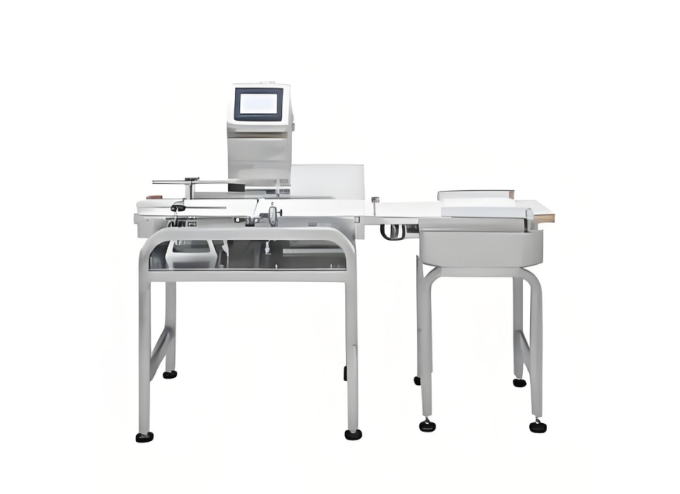

Dynamic check weigher designed for high-speed in-motion weighing of packaged products, featuring stainless steel reinforced structure,suitable for food, pharmaceutical, chemical and daily chemical industries.
Related Video
Apply for high-precision, in-line weight checks on every product and automatically rejects out-of-tolerance items to ensure consistent quality.
Features
l Mainframe stainless steel reinforced structure, waterproof design
l Equipped with high-precision load cells based on advanced DSP technology
l With automatic weighing compensation and zero tracking
l Configure with product presets, easy to edit and recall
l Quickly reject and recall substandard products
l Configure Touch screen, friendly operation interface
l Customized conveying length and width

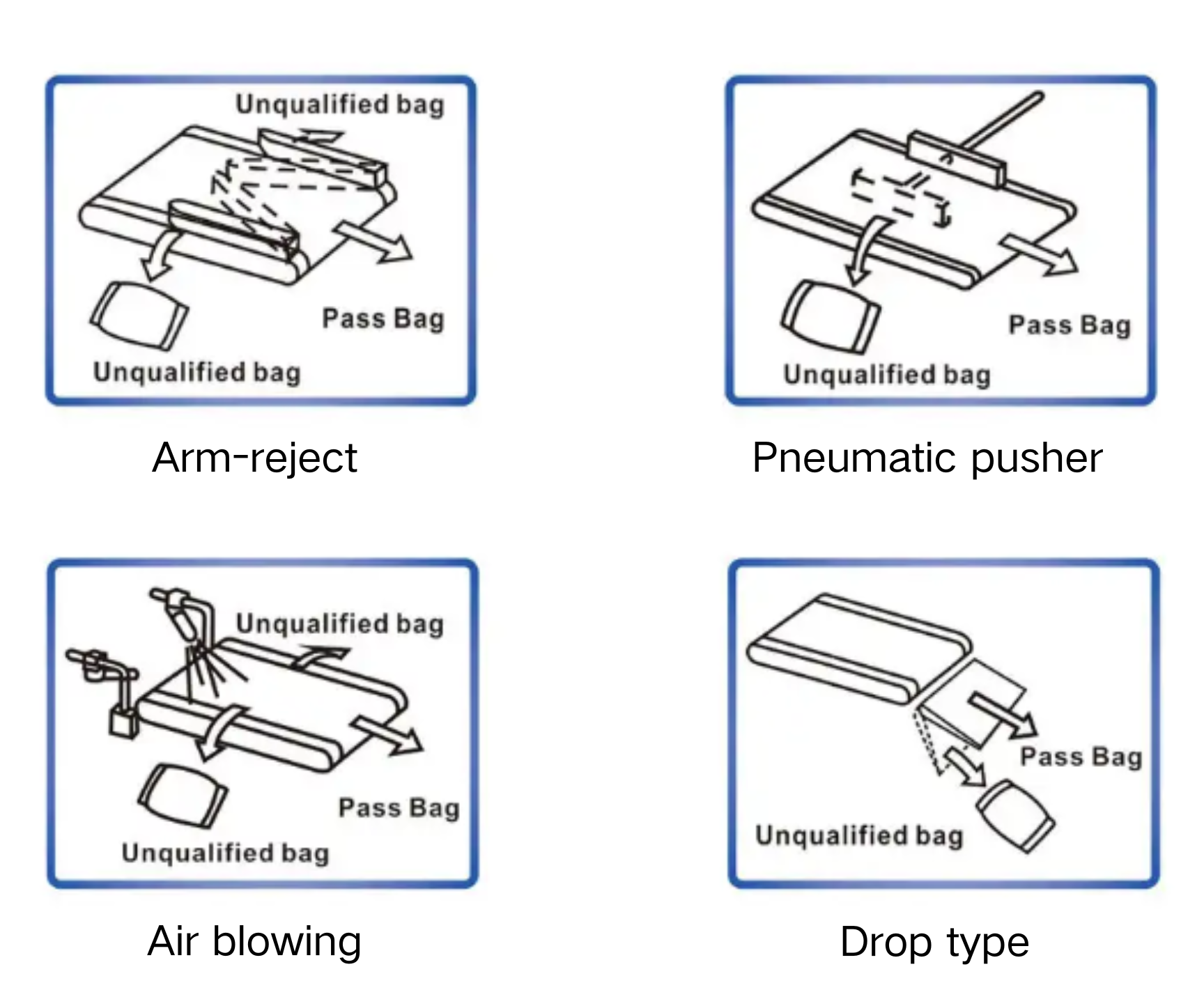

l Multiple rejection devices (air blast, pusher, drop-type)
l Data communication interfaces (Ethernet, serial, USB)
l Stainless steel 304 or 316L construction for sanitary applications
l Additional inspection modules (metal detection, X-ray)
Technical Specification
Catalogue/5Y191-CXXX | 5Y191-C100 | 5Y191-C200 | 5Y191-C1000 |
Max Capacity (g) | 100 | 200 | 1000 |
Max Package Size W×L(mm) | 100×200 | 100×330 | 220×450 |
Mainframe Material | SUS304 | ||
Load Cell Type | DSP-based high-precision | ||
Rejection method |
Air blowing |
Air blowing | Air blowing/Flap/ Pneumatic swing rod/ Pneumatic push rod |
Operation Interface | Touchscreen | ||
Catalogue/5Y191-CXXX | 5Y191-C2000 | 5Y191-C3000 | 5Y191-C6000 | 5Y191-C30000 |
Max Capacity (g) | 2000 | 3000 | 6000 | 30000 |
Max Package Size W×L(mm) | 300×450 | 400×650 | 400×650 | 500×860 |
Mainframe Material | SUS304 | |||
Load Cell Type | DSP-based high-precision | |||
Rejection method | Air blowing/Flap/ Pneumatic swing rod/ Pneumatic push rod | Pneumatic push rod/ Drop type | Pneumatic push rod/ Drop type | Pneumatic push rod |
Operation Interface | Touchscreen | |||
