Product Code:PP183-A

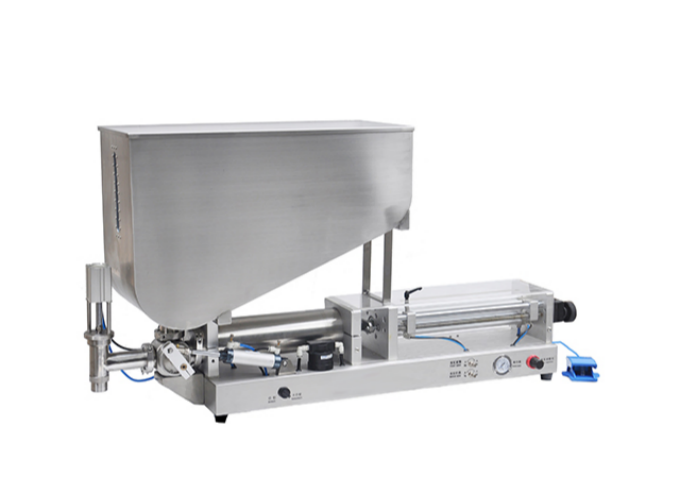

Designed for quantitative filling of Liquids and pastes. Contact components are made of 316 stainless steel.
Related Video
Apply for the filling of normal Liquid or viscous Liquid, integrates with packing machines to form an automated packing line.
|
|
|
Ketchup | Salad Dressing | Honey |
|
|
|
Oil | Face Cream | Laundry Detergent |
Features
Standard features
l Apply for normal Liquid and viscous Liquid filling
l Type of Pump: Piston Pump
l Products touching parts: Stainless steel 316
l Structure and surface: Stainless steel 304
l Drive mode: Pneumatic
l Easy assembly design, convenient for cleaning
l Filling nozzle height is adjustable
l Quantitative filling/Foot pedal controlling mode
l Filling speed is adjustable
Optional features
l Material distributing device，one screw loading mto two auger filling machines
l Upgrade to product touching parts to SUS 316 for the parts orignally use SUS 304
l Semi-Ball type Anti-dropping Device for free of flow powder stopping and discharging
l Centrifuge Disk Anti-dropping Device for good fluidity ratio to prevent free fall of materials
l Configure the weighing hopper for weight-based metering when the material density changes
l Floor-standing, adjustable filling height
l Equipped with PLC control, touch screen, independently working as semi-auto powder dosing machine

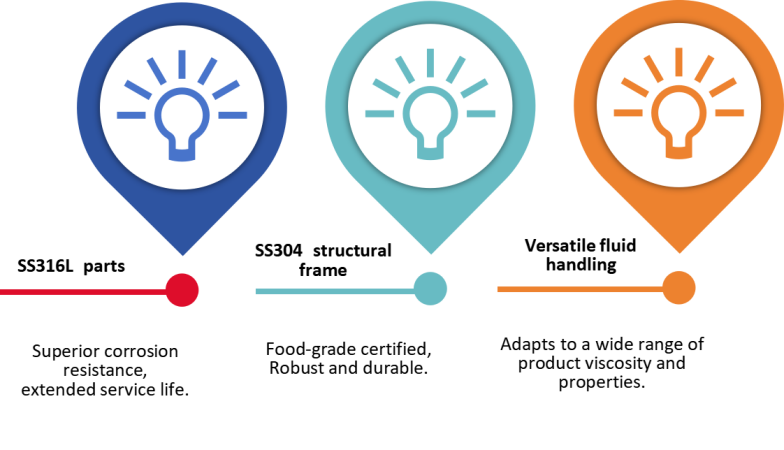

Advantages
Technical Specification
Catalogue/3B183-GYXX | 3B183-GY60 | 3B183-GY120 | 3B183-GY250 | 3B183-GY500 |
Filling Product Liquid | Liquid | |||
Filling Range (ml) | 5 ~ 60 | 10 ~ 120 | 25 ~ 250 | 50 ~ 500 |
Filling Precision | Approx.±1% | |||
Storage Capacity | NA | |||
Catalogue/3B183-GYXX | 3B183-GY1000 | 3B183-GY2500 | 3B183-GY5000 |
Filling Product Liquid | Liquid | ||
Filling Range (ml) | 100 ~ 1000 | 250 ~ 2500 | 500 ~ 5000 |
Filling Precision | Approx.±1% | ||
Storage Capacity | NA | ||
Catalogue/3B183-GGXX | 3B183-GG60 | 3B183-GG120 | 3B183-GG250 | 3B183-GG500 |
Filling Product Liquid | Liquid /Paste | |||
Filling Range (ml) | 5 ~ 60 | 10 ~ 120 | 25 ~ 250 | 50 ~ 500 |
Filling Precision | Approx.±1% for Liquid Approx.±2% for paste | |||
Catalogue/3B183-GGXX | 3B183-GG1000 | 3B183-GG2500 | 3B183-GG5000 |
Filling Product Liquid | Liquid /Paste | ||
Filling Range (ml) | 100 ~ 1000 | 250 ~ 2500 | 500 ~ 5000 |
Filling Precision | Approx.±1% for Liquid Approx.±2% for paste | ||
