Product Code:PP181

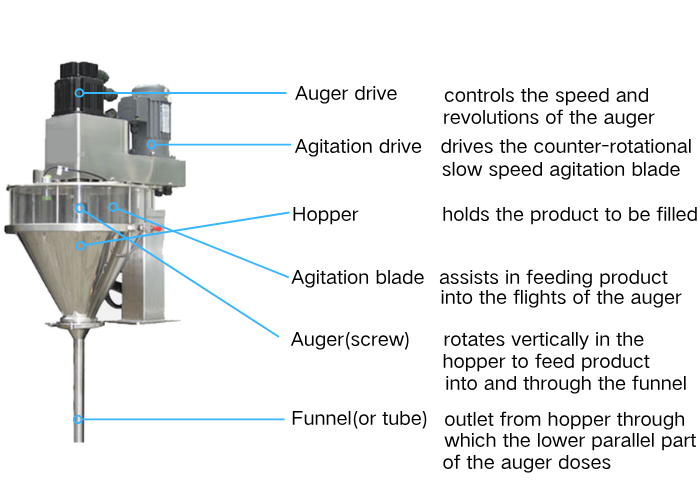

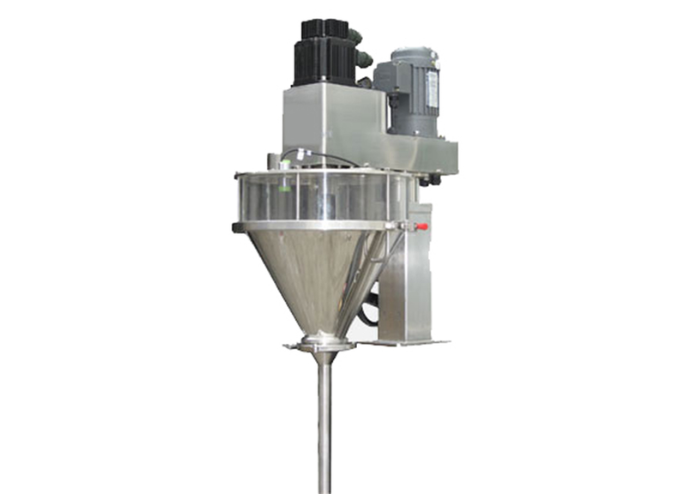

This servo-driven auger filler precisely doses powders and fine granules. Features include a transparent quick-assembly hopper, adjustable auger height.
Related Video
Apply for the dosing of various powder, such as Matcha powder, milk powder, coffee powder, flour, etc.
Features
l It is applicable for dosing powder
l Servo motor driving‚ more accurate dosing‚ faster speed
l Transparent hopper‚ operation visible
l Quick assembly hopper‚ easy for cleaning
l Non-floor type‚ adjustable filling height
l Fully constructed by stainless steel 304 for products touching parts
l Configured with powder level sensor
l Material distributing device，one screw loading mto two auger filling machines
l Upgrade to product touching parts to SUS 316 for the parts orignally use SUS 304
l Semi-Ball type Anti-dropping Device for free of flow powder stopping and discharging
l Centrifuge Disk Anti-dropping Device for good fluidity ratio to prevent free fall of materials
l Configure the weighing hopper for weight-based metering when the material density changes
l Floor-standing, adjustable filling height
Advantages
l Servo motor drive – high precision, low waste, and reliable repeatability
l Built-in powder level sensor – real-time monitoring, automatic alerts, no downtime

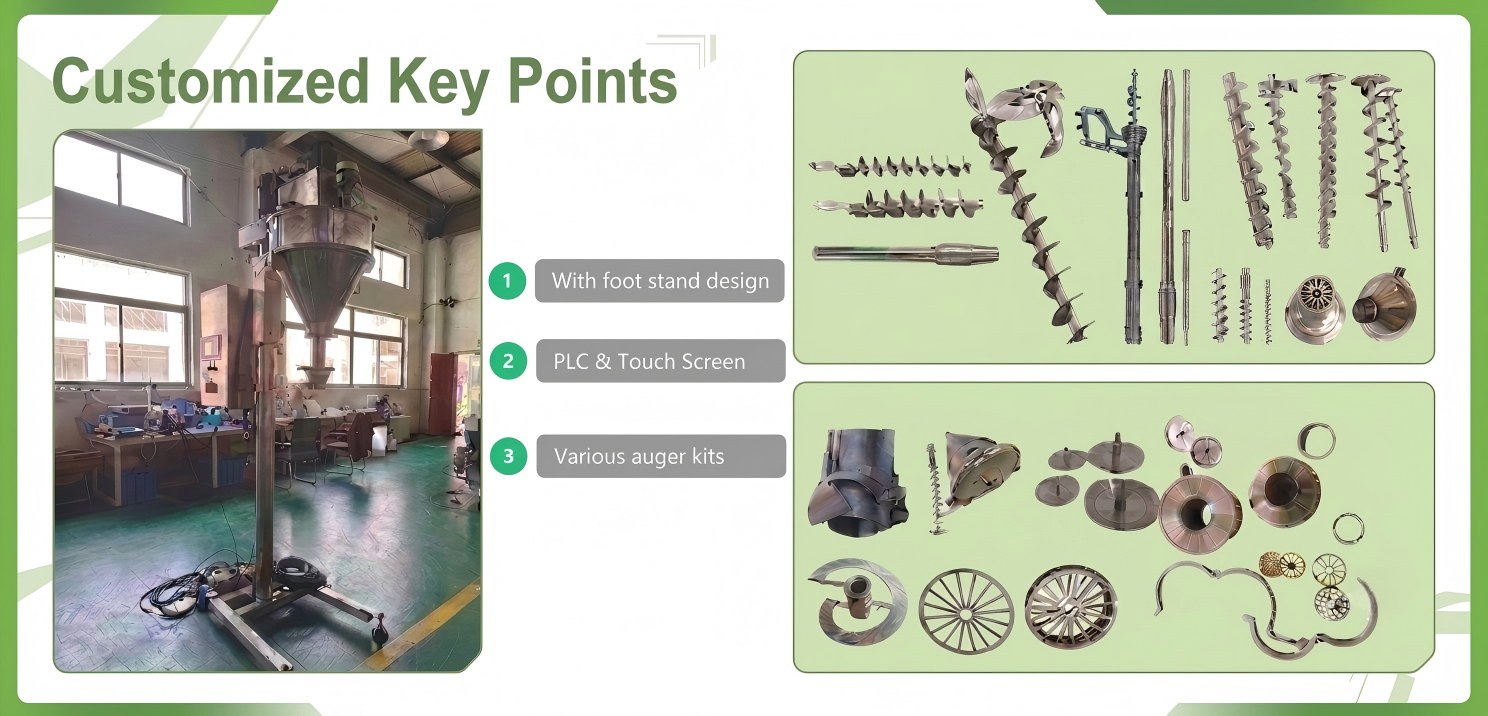

l Customizable hopper and screw options – flexible configurations for different powder types and production scales
Technical Specification
Catalogue/4N181-XXX | 1A315B | 1A326B | 1A335B |
Filling Range(g) | 1-100 | 1-500 | 1-500 |
Hopper Volume(L) | 15 | 26 | 35 |
Filling Accuracy (±%) |
100g‚≤±2% | ≤100g‚≤±2%; 100-500g‚≤±1%; ≥500g‚≤±0.5% | ≤100g, ≤±2%; 100-500g,≤±1% ≥500g,≤±0.5% |
Filling Speed (cycles/min) | 40-120 | 40-120 | 40-120 |
Power Requirement | 380VAC 3P 50Hz | 380VAC 3P 50Hz | 380VAC 3P 50Hz |
Catalogue/4N181-XXX | 1B350B | 1B360B | 1A326B-2 |
Filling Range (g) | 10-2000 | 4000 / 6000 / 8000 | 1–500 |
Hopper Volume (L) | 50-Standard | 60-Standard | 45-Standard |
Filling Accuracy (±%) | ≤100g‚≤±2%; 100-500g‚≤±1%; ≥500g‚≤±0.5% | ±1-3% | ≤100g‚≤±2%; 100-500g‚≤±1%; ≥500g‚≤±0.5% |
Filling Speed (cycles/min) | 40–120 | 8–15 | 40–120 |
Power Supply | 380VAC 3P 50Hz | 380VAC 3P 50Hz | 380VAC 3P 50Hz |
