Product Code:PP284B

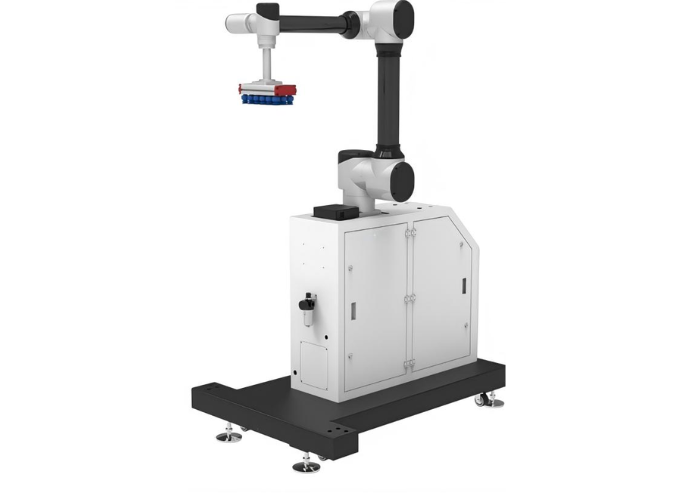

Automatic Palletizer featuring servo-driven precision, and flexible compatibility with various case dimensions and pallet patterns.
Related Video
Widely applied in the food and beverage industry for the palletizing of s, film-wrapped beverage multipacks, PET bottles, food bags, and barreled oil, as well as in the chemical industry for handling raw material bags, paint pails, paint cans, and ink drums.

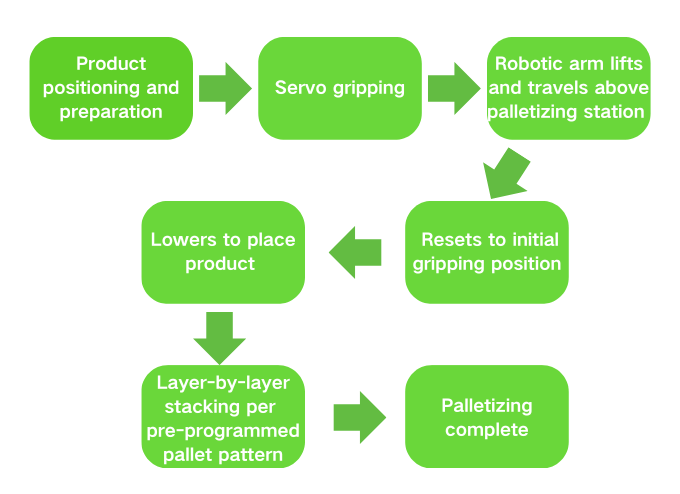

Workng Processes
Features
l Highly sensitive capacitive touch screen can generate a palletizing plan by directly inputting the material size according to the guidance
l No programming required, one-click start. Set a new path within 5 minutes subject to the working skill
l High compatibility. It can be applied to boxes of different sizes and different palletizing structure changes
l Visualized stacking type helps operators better observe the effect and rationality of the stacking type, and set a new path in 5 minutes
l Low consumption and high configuration. Servo control, precise positioning
l Optional laser radar protection electronic fence or grating protection fence, with high reliability and safety
l Roller conveying and positioning mechanism,palletizing with dual-conveyor feeding;the robot enables dual feeding and double-stack palletizing
l Stainless steel enclosures,upgrading carbon steel enclosures to 304 stainless steel enclosures
l Reinforcement of vacuum suction cup end of arm,adapt to high-temperature or low-temperature working environments
l Safety fence, physical protection for robot palletizing

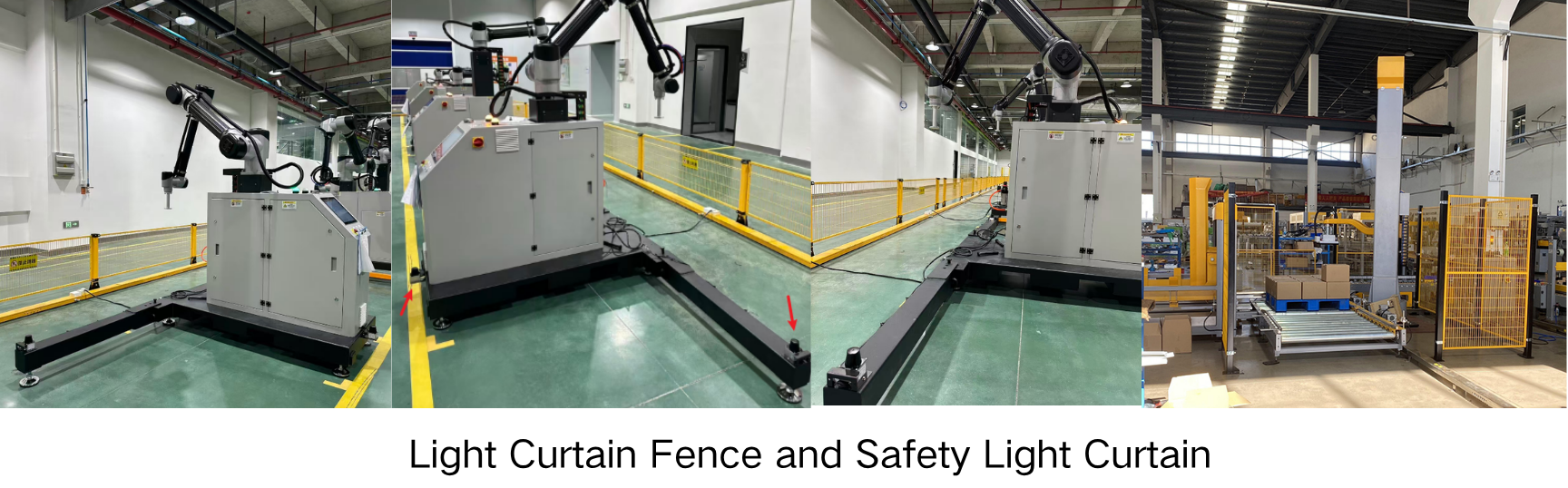

l Safety light curtain with safety fence, electronic protection at the entrance

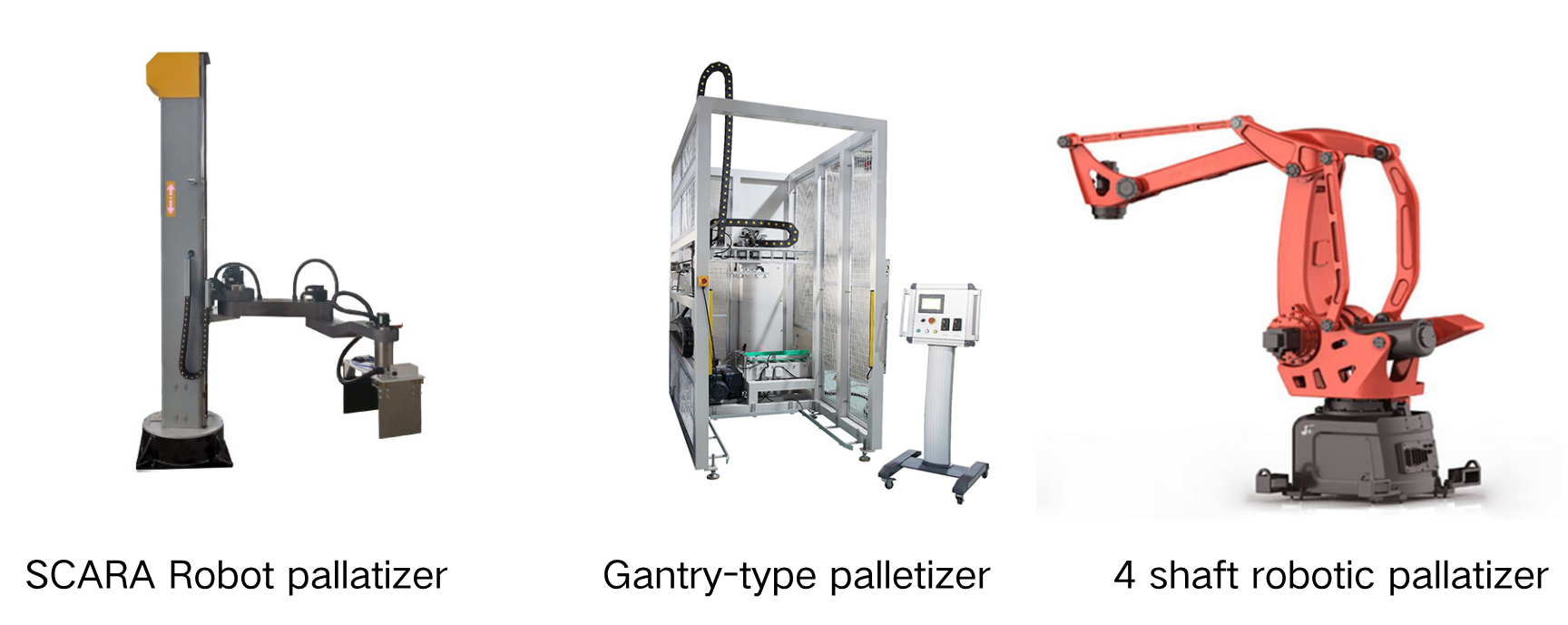

l Optional for various types pallatizer design, such as 4 shaft robotic,SCARA Robot,Gantry-type servo palletizer
l Customizable 600-800mm lifting ranges

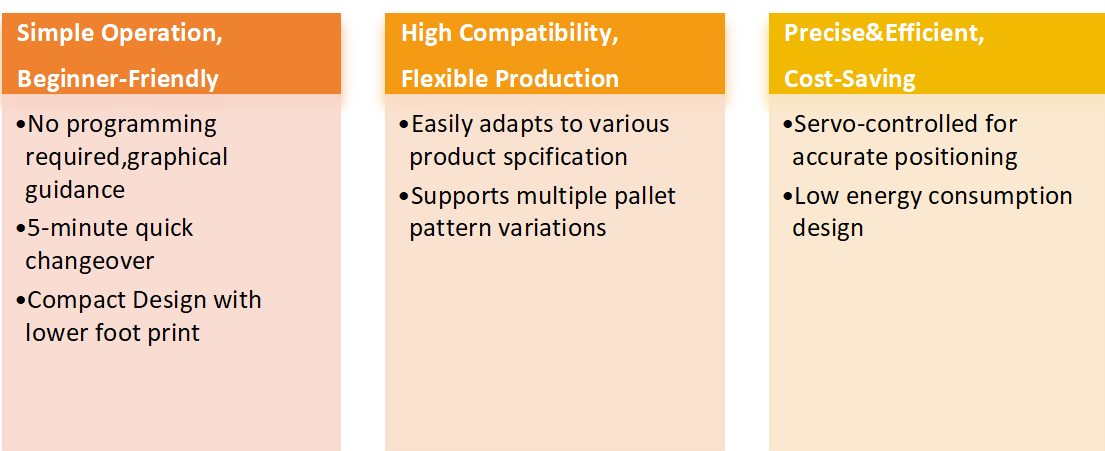

Advantages
Technical Specification
Catalogue/WP-XX | WP-30L | WP-30 | WP-30S | WP-50XL | WP-50L | WP-50 | WP-50S |
Load (kg) | 20 | 25 | 30 | 35 | 40 | 45 | 50 |
Palletizing Speed (boxes/min) | 8-12 | 8-10 | 6-8 | 4-6 | |||
Working Radius (mm) | 1880 | 1680 | 1480 | 2180 | 1980 | 1780 | 1580 |
Palletizing Height (mm) (Including pallet height) | Max 2550 | Max 2350 | Max 2150 | Max 2850 | Max 2650 | Max 2450 | Max 2250 |
Machine Height(mm) | 1800-3300 | 1800-3000 | |||||
