Product Code:PP316

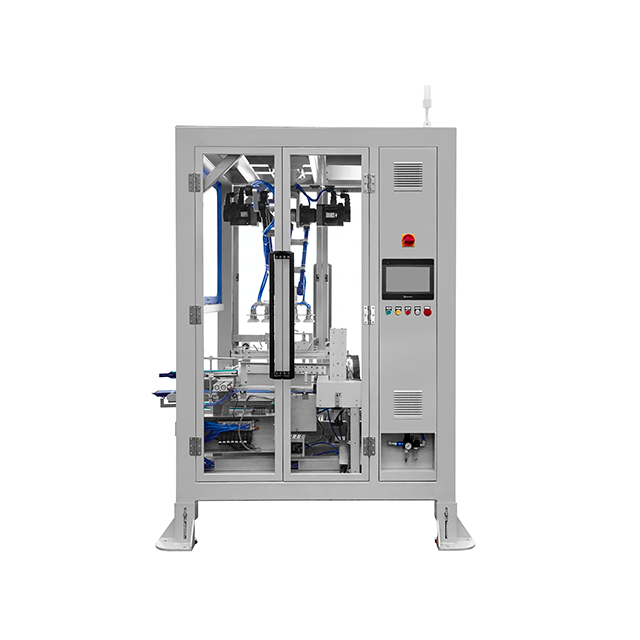

This series of top-loading case packers is designed for automatic picking and placing of products (cartons, bags, bottles, etc.) into cases.
Related Video
This system automatically loads bulk products or small-packaged finished items into transport packaging such as cardboard cases and plastic containers according to preset arrangements and quantities, enhancing packaging efficiency and standardization while replacing labor-intensive repetitive tasks. It is widely applied in the food and beverage, pharmaceutical, daily chemical, and consumer goods industries.
Food And Beverage |
|
Daily Chemical |
|

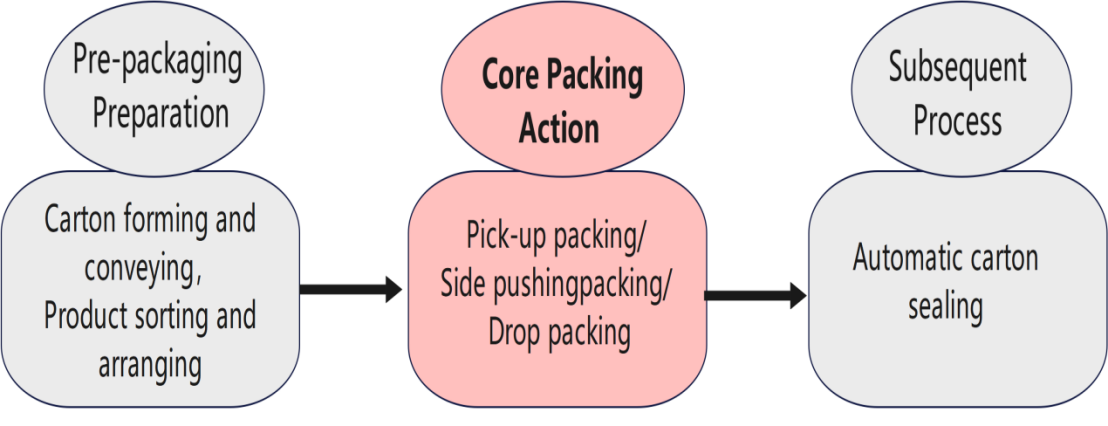

Workng Processes
Features
l Heavy-duty welded tubular steel frame, painted finish
lVacuum-based pick‑up device as standard; custom grippers optional
lTool-less, quick changeover for product and case size
lDirect connectivity to vertical case erector and case sealer for complete line integration
lHigh per-pick payload capacity (up to 15 kg or more, depending on model)
lOptional for case erecting machines, case-sealing machines, and complete packaging lines comprising an integrated sorting and conveying device
lOptional full-line control system enables synchronized automated operation of conveyors, belt systems, uncasing, and casing processes.
lVarious packing way,such as Delta Robotic,Servo Pick n Place,2 Axis Robot multiple packaging for options
lOptional for integrating check weigher for rejecting....
|

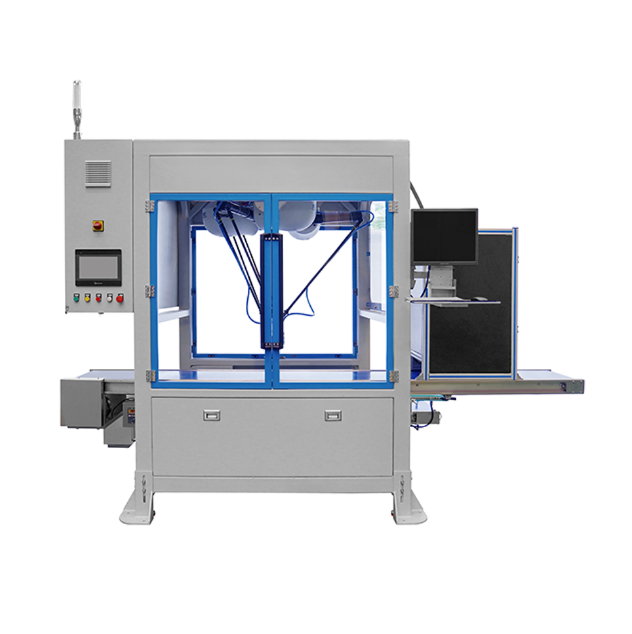

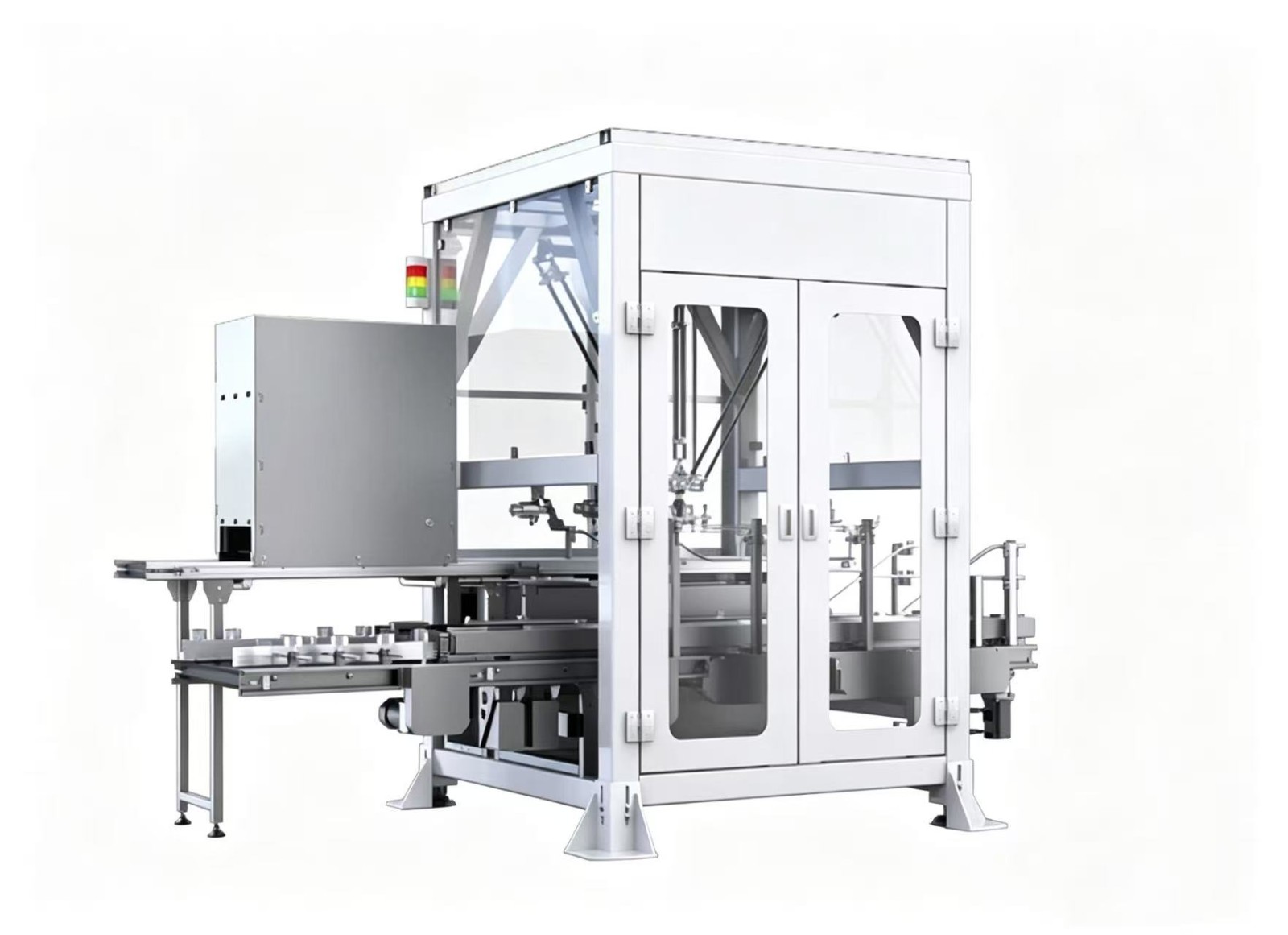

Delta Robotic Type |
2 Axis Robot Type |
Technical Specification
Parameter | Delta Robotic | Delta Robotic Lite |
Packing Method | Delta Robotic | |
Number of Axes | 4 | |
Max Payload | 15 KG | 5 KG |
Work Space | D×H = 1100×320 mm | D×H = 800×230 mm |
Repeat Precision | ±0.05 mm | |
Power Supply | 380VAC 3P+N+E 50Hz | |
Parameter | Specification |

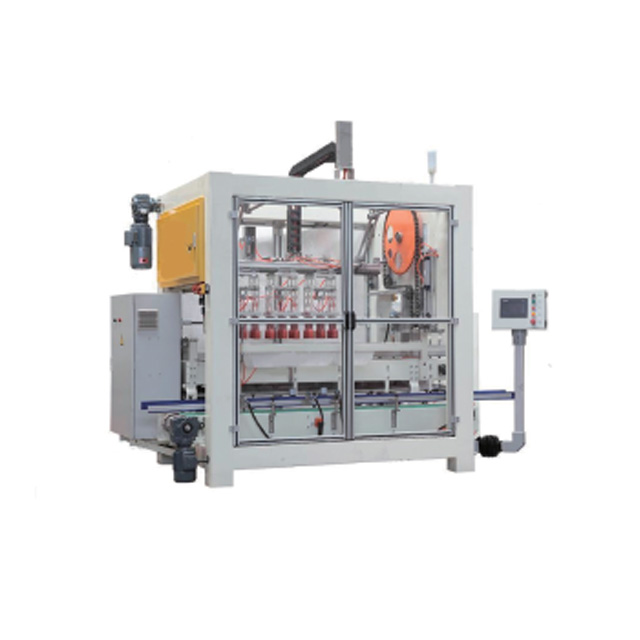

Packing Method | Servo Pick & Place |
Max Payload | 15 KG |
Case Dimension | 250×150×120 ~ 400×300×300 mm |
Case Packaging Speed | ≤ 6 picks per minute |
Power Supply | 380VAC 3P+N+E 50Hz |
Parameter | Standard 2-Axis Robot | Customized PP316-2AR-1300 |
Packing Method | 2 Axis Robot | |
Number of Axes | 2 | |
Rated Payload | 5 KG | 20 KG |
Work Space | W×H = 800×230 mm | D×H = 1300×520 mm |
Repeat Precision | ±5 mm | ±0.2 mm |
Standard Cycle Rate | — | 20 picks/min |
Power Supply | 380VAC 3P+N+E 50Hz | |
