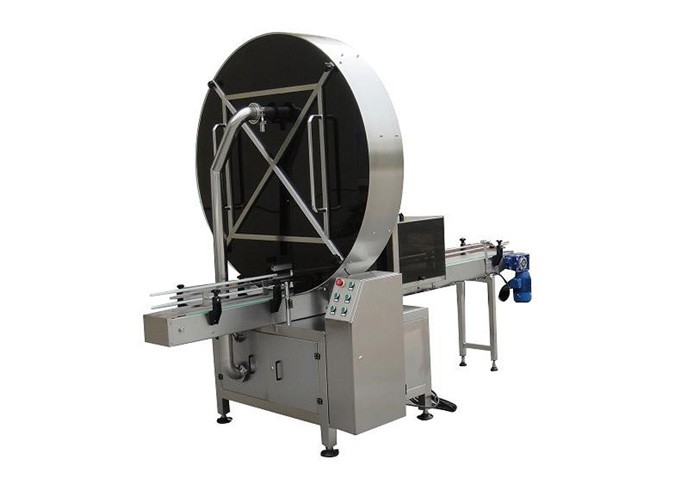

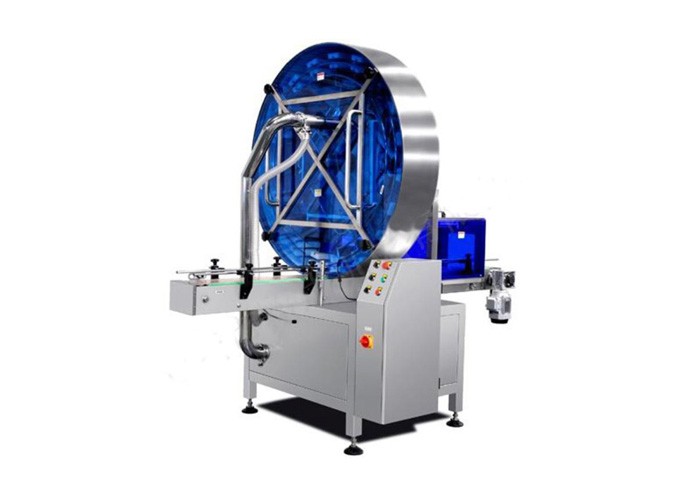

Empty Can Air Cleaning and UV-Sterilization Machine
  • Empty Can Air Cleaning and UV-Sterilization Machine
  • Empty Can Air Cleaning and UV-Sterilization Machine
Empty Can Air Cleaning and UV-Sterilization MachineEmpty Can Air Cleaning and UV-Sterilization Machine

Empty Can Air Cleaning and UV-Sterilization Machine


    Product Code: PP333


    This machine applies for empty can cleaning by air blowing , to ensure that no impurities inside the can.

    Mostly it applied to canned products, such as Milk powder line which requested high standard cleaning performance.


Inquire Now
Product Introduction


Application


This machine applies for empty can cleaning by air blowing , to ensure that no impurities inside the can.

Mostly it applied to canned products, such as Milk powder line which requested high standard cleaning performance.


Following are the reference style of packaging


Low Level Bulk Depalletizer

Working Processes



  • When cans get into the machine, the UV light will turn on for sterilizing, at the same time, the air blowing working to blow off the impurities.

  • UV Sterilization and impurities cleaning are finished by one station, avoiding the secondary pollution.



Features


Standard Features



1) Stainless steel 304 construction for frame and other main parts

2) Frequency converting motor driven

3) PLC and touch screen control

4) No magnetism design, pure mechanical can turning

5) Compared with strong magnetism design, no magnetism ensure the metal impurities cleaning thoroughly and completely

6) Combined with UV sterilization function

7) Tool less for can size change over

8) Compact structure, small footprint



Technical Specification



Working Speed1-45 cans/minute, Speed able to adjust as request
Applicable Can SizeDiameter 75-150 mm, Height 80-200mm
UV light  7 Sets
Power Consumption1.8kw
Power Supply380V, 50HZ, 3 Phases


Empty Can Air Cleaning and UV-Sterilization Machine

Due to the special design of the fixing kit, it’s applicable for various cans size in a particular rang.

No need to change over the kits when working with cans in different size.


Related Accessories


In order to form a production line, the corresponding filling, sealing machines are necessary accessories.

Low Level Bulk Depalletizer




Low Level Bulk Depalletizer
