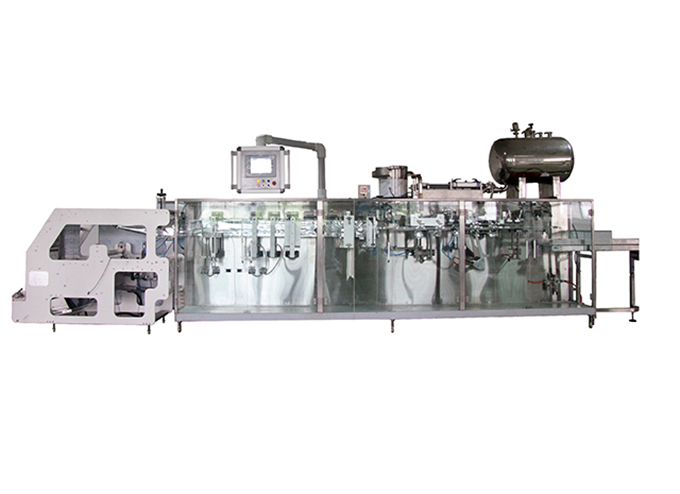

Horizontal Corner Spout Pouch Form Fill Seal Machine Series
  • Horizontal Corner Spout Pouch Form Fill Seal Machine Series
Horizontal Corner Spout Pouch Form Fill Seal Machine Series

Horizontal Corner Spout Pouch Form Fill Seal Machine Series


    Product Code:PP217C


    This machine is applicable for packing powder, granule, liquid in form of corner spout pouch, with different patterns of sealing, which include processes of flat pouch or stand up pouch forming, product dosing, filling, corner spout installation and sealing.

Inquire Now
Product Introduction



Application


This machine is applicable for packing powder, granule, liquid in form of corner spout pouch, with different patterns of sealing, which include processes of flat pouch or stand up pouch forming, product dosing, filling, corner spout installation and sealing.


IssueApplication Description

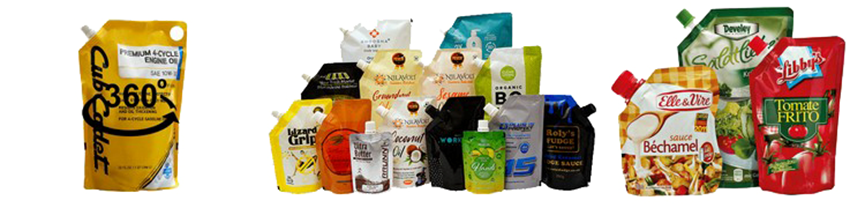

Applicable PouchCorner spout flat pouches, corner spout stand up pouches, or other irregular shaped corner spout pouches.
Applicable ProductsConfigure with different dosing devices, capable to pack with liquid, powder or granule, such as juice, jam, ketchup, mayonnaise, baby puree, engine oil, motor oil, detergent etc.
Applicable Packaging

Material

Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL /CPP etc.




Working Processes

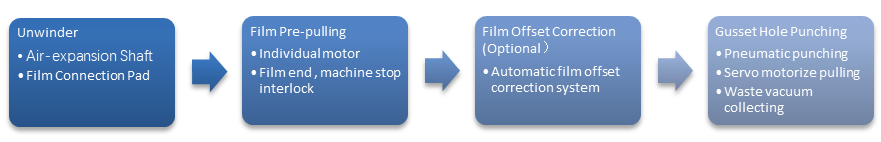

Film Unwinding Process




Note: the gusset hole punching process applies for stand-up pouch

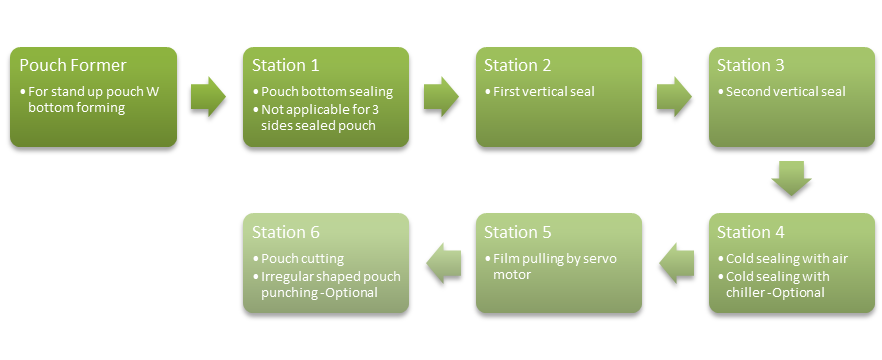

Pouch Forming Process

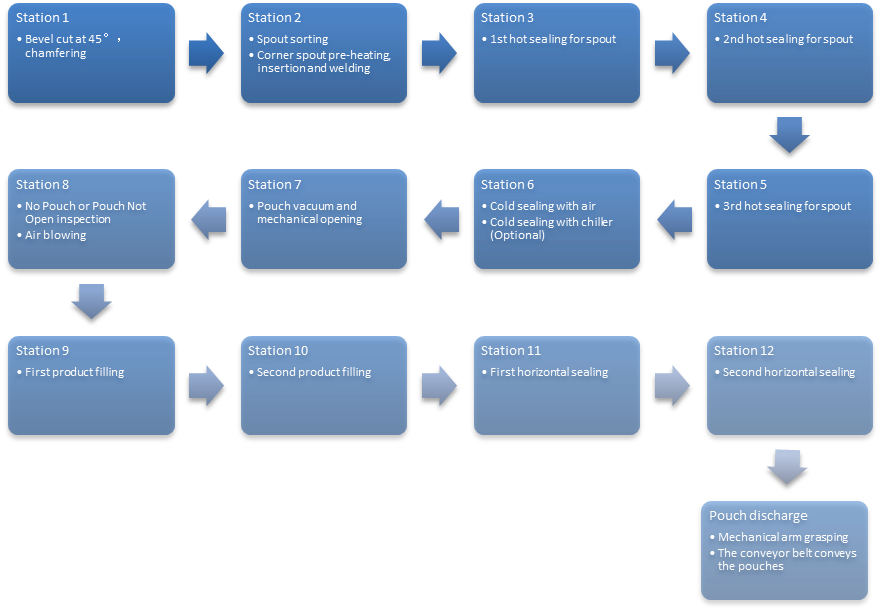

Pouch Filling Sealing Process



Note:

1)The product filling process can be 1 to 4 station according to project requirement

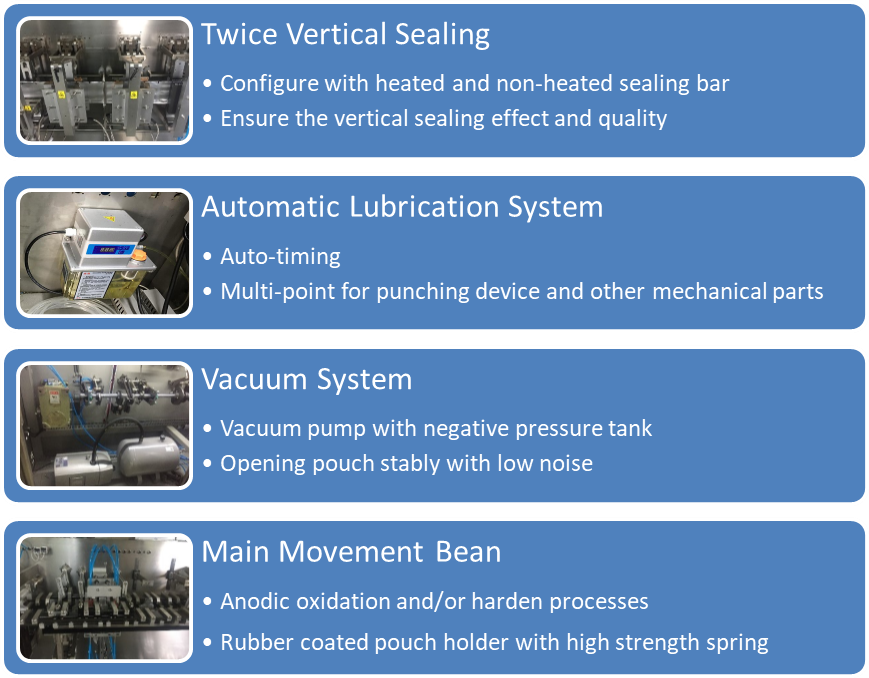

Features


Standard Features


1)Stand up pouch form fill, corner spout installation and seal

2)Rigid carbon steel structure with plastic spraying process and covered by stainless steel 304

3)Anodic oxidation and/or harden aluminum for main movement beam and pouch holding bars

4)Stainless steel 304 for product touching parts

5)PLC & Touch Screen HMI Control

6)Intelligent PID temperature controller

7)Servo motor for film pre-pulling and bottom hole punching

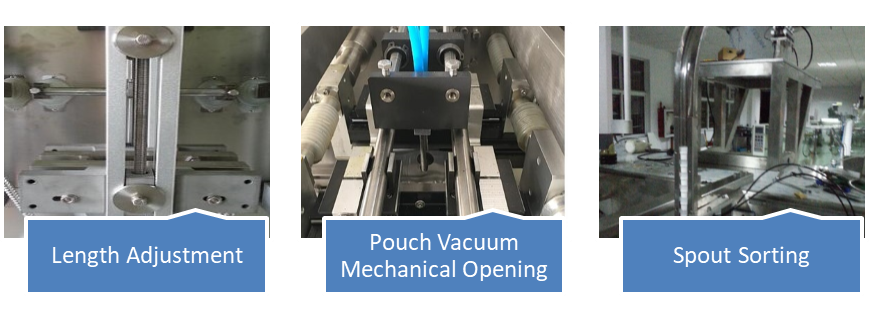

8)Easy pouch length adjustment

9)Twice product filling, twice vertical sealing and twice horizontal sealing processes

10)Once pre-heating, three times pressurized heat sealing, once cold sealing, used for corner spout installing and sealing

11)Pouch vacuum and mechanical opening

12)Vacuum system powered by vacuum pump with negative pressure tank

13)Individual pressure tank for different compress air supplies

14)Pouch not open completely, no fill and seal interlock

15)Central lubrication system for punching device and other key mechanical parts

16)Visual Protective Cover

17)Cold Embossing type coding


Optional Features


1)Flat corner spout pouch

2)Irregular shaped Corner spout pouch

3)Stainless steel 316 for product touching parts

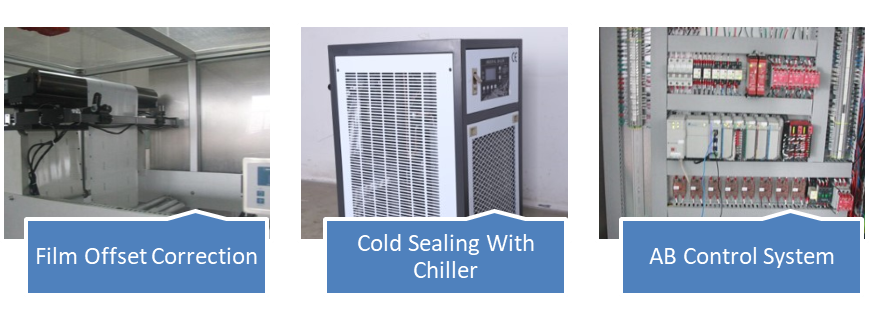

4)Automatic film offset correction system

5)Ribbon, inkjet or laser coding

6)Cold sealing with chiller

7)AB Control System



Advantages




Technical Specification



Type 1G-xxxx

HMS-1600XC

HMS-3200XC

Packaging Speed35-45 pouches/min35-45 pouches/min
Lanes1 Pouch/cycle1 Pouch/cycle

Vertical Sealing Station

22
Pouch Size-Length100-270 mm100-400 mm
Pouch Size-Width 80-160mm 80-250mm
Film Pulling DrivenServo MotorServo Motor
Power Consumption12kw13kw
Power RequirementAC 380V 50/60HZAC 380V 50/60HZ



Type 1G-xxxx

HMS-1600DXC

HMS-3200DXC

Packaging Speed60-80 pouches/min60-80 pouches/min
Lanes2 Pouch/cycle2 Pouch/cycle

Vertical Sealing Station

22
Pouch Size-Length100-270 mm100-280 mm
Pouch Size-Width 80mm 80-130mm
Film Pulling DrivenServo MotorServo Motor
Power Consumption13kw14kw
Power RequirementAC 380V 50/60HZAC 380V 50/60HZ


Related Links


Following is the related video links on our Youtube site


Horizontal Top Spout Pouch Form Fill Seal Machine Series


If need more support , please contact us at : cs@gloex.com.cn
