Product Code: PP217E

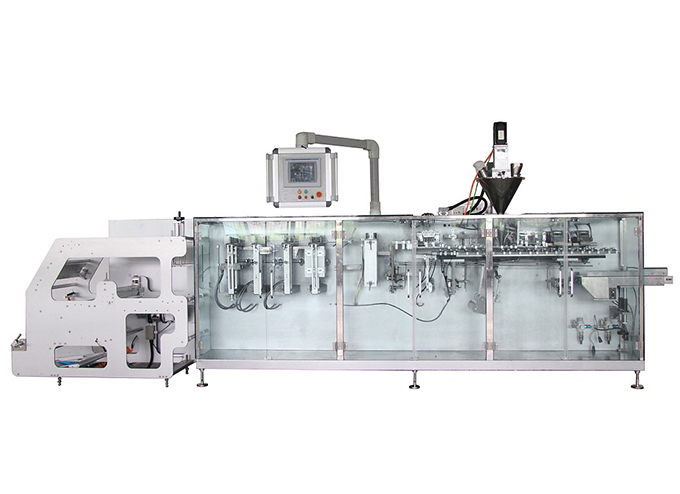

This machine is applicable for packing powder, granule, liquid in form of ziplock pouch, with different patterns of sealing, which include processes of zipper installation, stand up pouch forming, product dosing, filling and sealing
This machine is applicable for packing powder, granule, liquid in form of ziplock pouch, with different patterns of sealing, which include processes of zipper installation, stand up pouch forming, product dosing, filling and sealing.
| Issue | Application Description |
| Applicable Pouch | Stand up pouches with zipper, flat pouches with zipper, or other irregular shape pouches with zipper. |

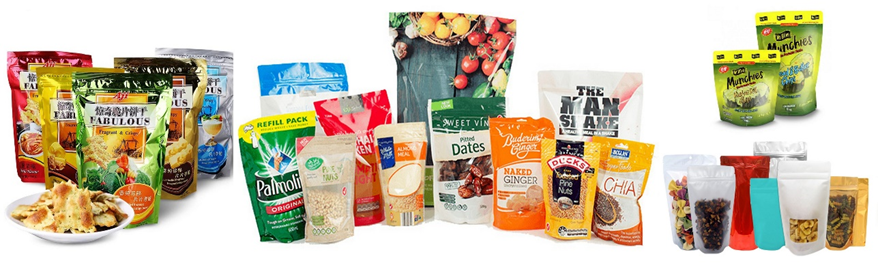

| Applicable Products | Configure with different dosing devices, capable to pack with liquid, powder or granule, such as biscuits, chips, cereal, nuts, milk powder, ground coffee, coffee beans, etc. |
| Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL /CPP etc. |

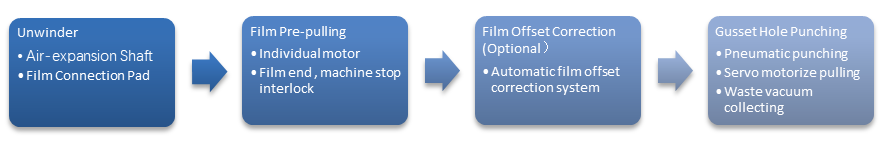

Film Unwinding Process
Note: the gusset hole punching process applies for stand-up pouch

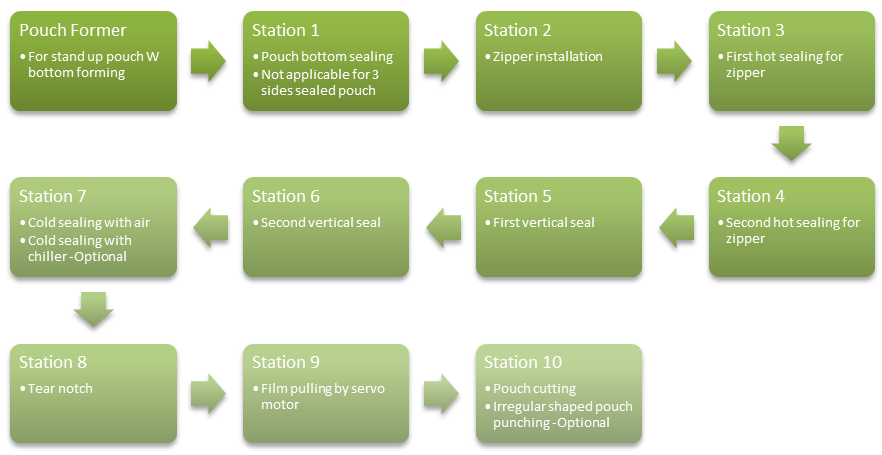

Pouch Forming Process

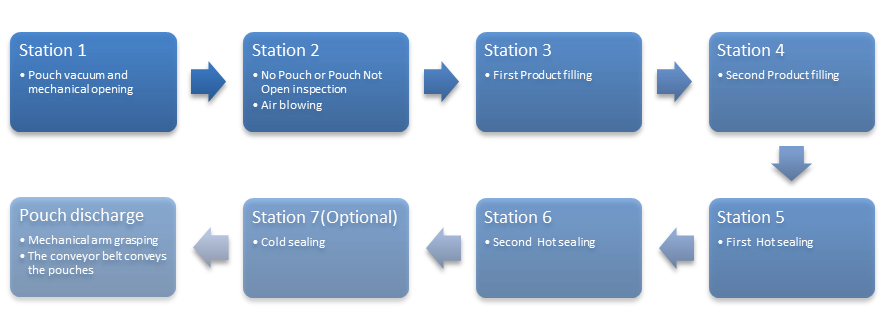

Pouch Filling Sealing Process
Note: The product filling process can be 1 to 4 station according to project requirement
Standard Features
1)Stand up pouch with zipper form fill and seal
2)Rigid carbon steel structure with plastic spraying process and covered by stainless steel 304
3)Anodic oxidation and/or harden aluminum for main movement beam and pouch holding bars
4)Stainless steel 304 for product touching parts
5)PLC & Touch Screen HMI Control
6)Intelligent PID temperature controller
7)Independent zipper setting device, detection alarm for zipper
8)Zipper opening by installation
9)Servo motor for film pre-pulling and bottom hole punching

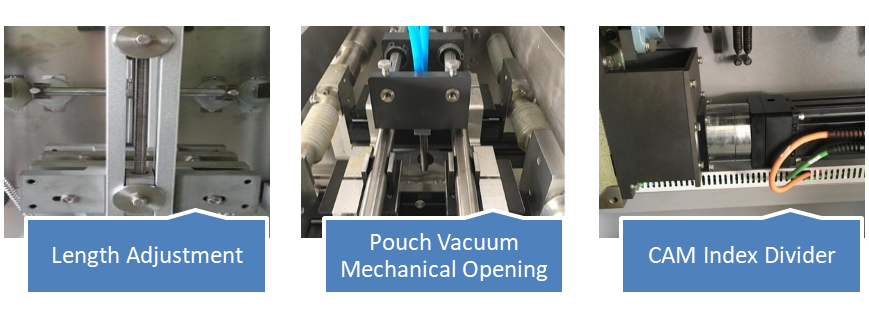

10)Easy pouch length adjustment

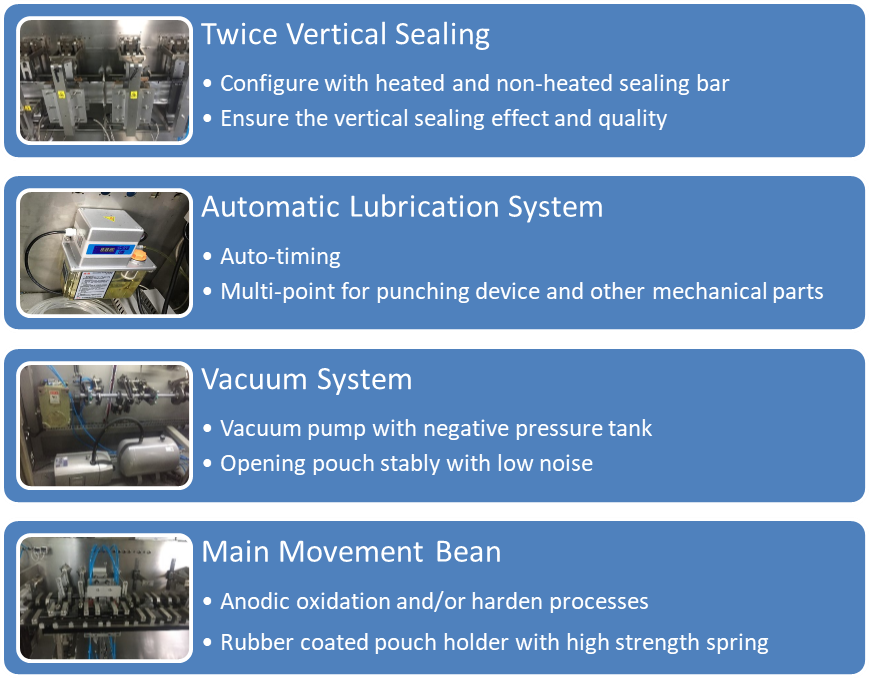

11)Twice product filling, twice vertical sealing processes
12)Pouch vacuum and mechanical opening
13)Vacuum system powered by vacuum pump with negative pressure tank
14)Individual pressure tank for different compress air supplies
15)Pouch not open completely, no fill and seal interlock
16)Central lubrication system for punching device and other key mechanical parts
17)Visual protective cover
18)Cold embossing type coding
Optional Features
1)Flat pouch with zipper
2)Irregular shaped pouch with zipper
3)Stainless steel 316 for product touching parts

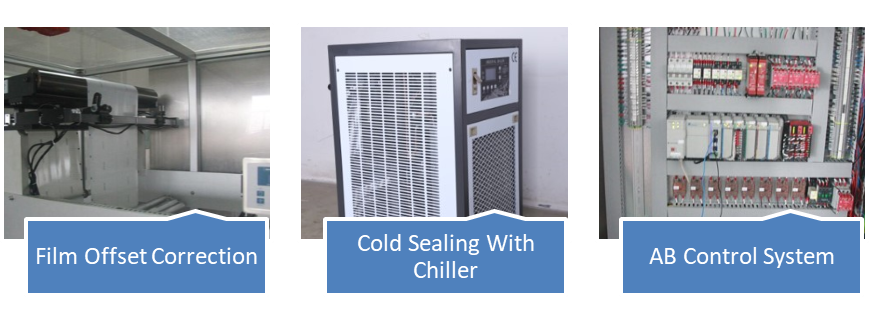

4)Automatic film offset correction system
5)Top aligned cutting
6)Close the zipper after filling
7)Ribbon, inkjet or laser coding
8)Cold sealing with chiller
9)AB Control System
| Type 1G-xxxx | HMK-1600SZ | HMK-2000SZ | HMK-3000SZ |
| Packaging Speed | 40-60 pouches/min | 40-60 pouches/min | 40-60 pouches/min |
| Lanes | 1 Pouches/cycle | 1 Pouches/cycle | 1 Pouches/cycle |
| Vertical Sealing Station | 2 | 2 | 2 |
| Pouch Size-Length | 80-270 mm | 100-320 mm | 100-400 mm |
| Pouch Size-Width | 60-180 mm | 80-220 mm | 80-320 mm |
| Film Pulling Driven | Servo Motor | Servo Motor | Servo Motor |
| Power Consumption | 10 kw | 10 kw | 10 kw |
| Power Requirement | AC 380V 50/60HZ | AC 380V 50/60HZ | AC 380V 50/60HZ |
| Type 1G-xxxx | HMK-1600DSZ | HMK-2000DSZ | HMK-3000DSZ |
| Packaging Speed | 60-80 pouches/min | 60-80 pouches/min | 60-80 pouches/min |
| Lanes | 2 Pouches/cycle | 2 Pouches/cycle | 2 Pouches/cycle |
| Vertical Sealing Station | 2 | 2 | 2 |
| Pouch Size-Length | 80-135 mm | 100-160 mm | 100-200 mm |
| Pouch Size-Width | 60-90 mm | 80-110 mm | 80-160 mm |
| Film Pulling Driven | Servo Motor | Servo Motor | Servo Motor |
| Power Consumption | 12 kw | 12 kw | 12 kw |
| Power Requirement | AC 380V 50/60HZ | AC 380V 50/60HZ | AC 380V 50/60HZ |
Following is the related video link on our YouTube site.
Horizontal Ziplock Pouch Form Fill Seal Machine Series
If need more support, please contact us at: cs@gloex.com.cn
