Product Code:PP295
Combines the functions of mixing, lifting, and material transfer in a single system delivering dust-free powder handling.
Related Video
Designed for powder raw material blending and homogeneous mixing in pharmaceutical formulation preparation, as well as ideal for processing milk powder, seasonings, nutritional supplements, and similar powder materials, ensuring dust-free mixing and transfer throughout the entire operation.
Features
l Function and Application Scenarios: Integrates the functions of mixing, lifting, and material transfer. It is suitable for the mixing of powdery loose materials in fields such as pharmaceuticals, food, and fine chemicals, and is an ideal solution for dust - free powder production
l Safety Protection: Ensures safety with infrared photoelectric sensors and has intelligent protection functions. The equipment will not operate when the photoelectric switch is not reset, the hopper is not in place, or not locked
l Operation and Automation: The touch - screen operation is convenient, and the degree of automation is high. During operation, after the hopper is assembled with the main unit, the lifting system automatically pulls the rotating system to the mixing position. After mixing is completed, it descends, and the printer prints the records
l Parameter Storage: Can store multiple sets of material process parameters for easy retrieval
l Equipment Configuration: One main unit can be equipped with multiple hoppers to meet diverse mixing requirements and support the closed - loop transportation of materials
l Include 1 set of Mixing Hopper with SUS316L construction
l Multiple hopper sizes – available in 1000L, 600L, and other capacities to match throughput requirements
l Adjustable speed drive – optional drive systems for different material characteristics
l Explosion-proof configuration – explosion‑proof motor and electrical controls for flammable or explosive powder environments
l Automatic weighing system – integrated online weighing for precise batch loading
l Remote monitoring interface – PLC data acquisition ready for MES integration

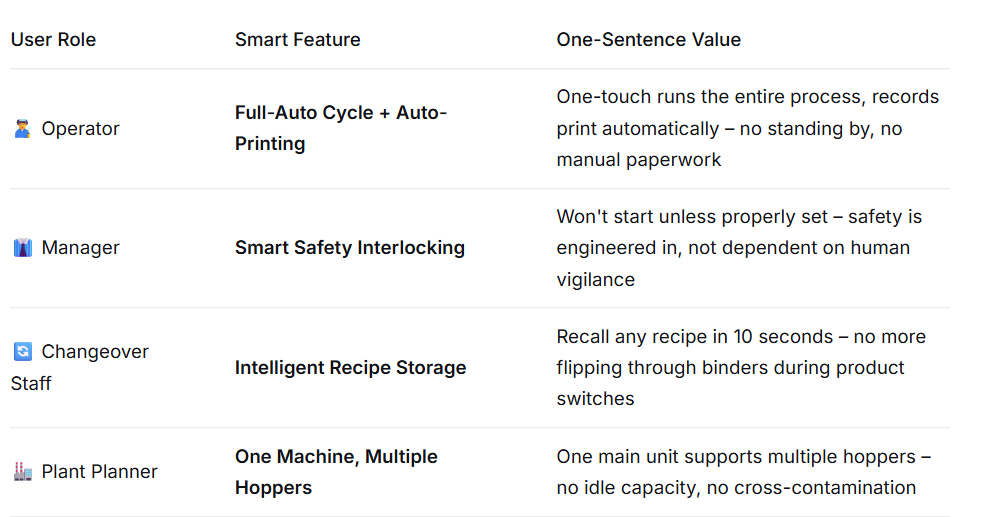

Advantages
Technical Specification
Catalogue/PP295B-XXX | 1000 | 600 |
Hopper Volume (L) | 1000 | 600 |
Maximum Net Load (kg) | 500 | 300 |
Loading Coefficient | 50% – 80% | |
Mixing Uniformity (%) | ≥99 | |
Operating Speed (r/min) | 3 – 12 | 3 – 15 |
Operating Time (min) | 1 – 59 | |
Total Power (kW) | Approx 8 | Approx 5.5 |
