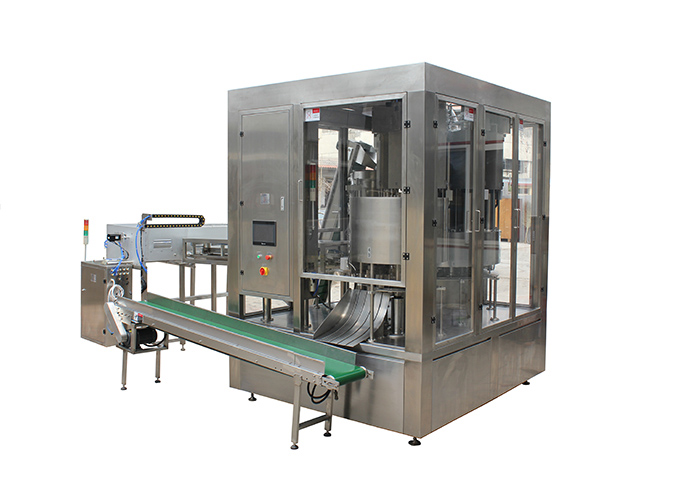

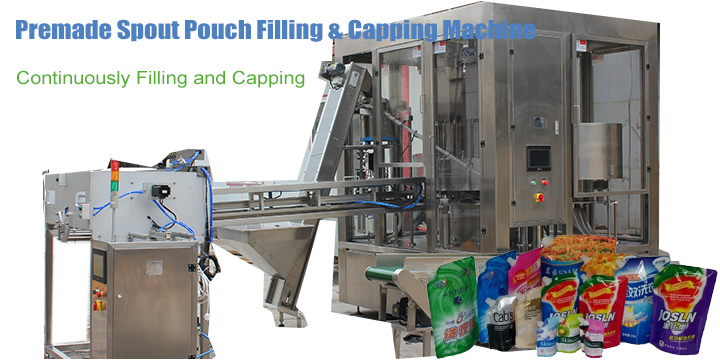

High Speed Rotary Premade Spouted Pouch Continuous Fill Cap Machine
  • High Speed Rotary Premade Spouted Pouch Continuous Fill Cap Machine
High Speed Rotary Premade Spouted Pouch Continuous Fill Cap Machine

High Speed Rotary Premade Spouted Pouch Continuous Fill Cap Machine


    Product Code : PP194


    This machine is a high speed model , running with constinuous movement method, and applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular, flat ,stand up pouch or gusset pouch etc. which include processes of premade spout pouch feeding, liquid dosing, filling, spout capping

Inquire Now
Product Introduction


Application


This machine is applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular, flat ,stand up pouch or gusset pouch etc. which include processes of premade spout pouch feeding, liquid dosing, filling, spout capping, the detail application description as following table:


Issue Application Description
Applicable Pouches

Spout Position: Top center spouted pouch, or corner spouted pouch

Pouch: Flat pouch, stand up pouch, special shaped pouch

Applicable Products

Normal liquid or viscous liquid such as:

Food Industry:

 Edible Oil

 Dressings – Ketchup, Mayonnaise, Mustard

 Water

 Liquid eggs

 Sauce

 Drinks -Juice, soybean milk

Non-Food Industry:

 Synthetic oil

 Industrial soap

 Paint

 Shampoo, lotion

 Liquid Detergent

Applicable type of capAnti-opening / screwing cap with dual hanging slot etc.

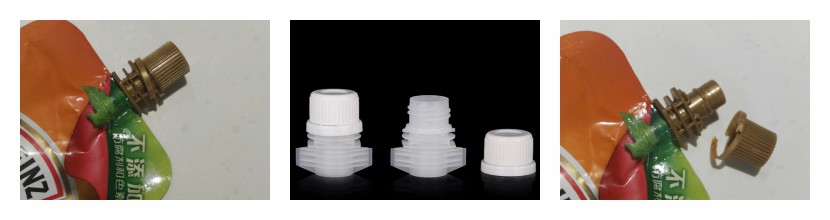

Reference photo of cap

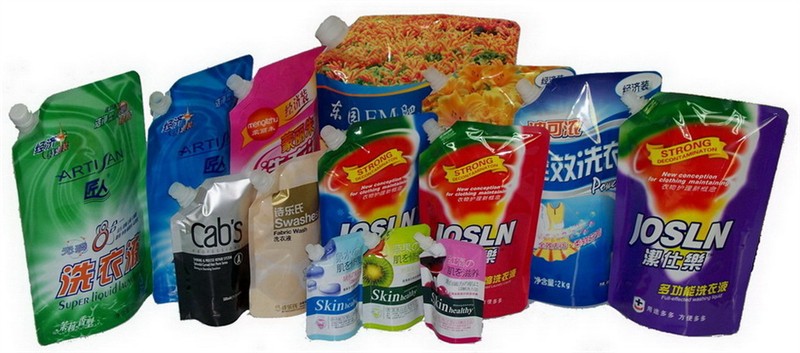

Following are the reference style of pouches




Features



Standard Features


Stainless steel 304 and duralumin for structure and surface

Product touching parted constructed by stainless steel 316

PLC & HMI Control Integrated, easy for operation and troubleshooting

Equipped with frequency converting motorized system to enable excellent performance of driving

Wide range of pouch size adaption

Premade spout pouch feeding, liquid dosing, filling, spout capping

Include the automatic devices of cap loading , sorting , pre-capping and capping

It is applicable for filling liquid in premade spout pouch and capping, applies various type spout pouches, regular or irregular, flat or stand up pouch etc.



Advantages



Practically, compared with other types of pouch form, filling sealing machine or other premade pouch filling and sealing machine, this vertical type machine with its advantages as indicated in the following table:


NoAdvantageDescription
1Fill Cap MethodContinuously, other than Intermittent
2Pouch size adaption

1)Quick changeover to another pouch size

2)Easy handling of jumbo flexible pouches

3Pouch type adaption

Apply for various types of pouch like

1)Flat pouch, stand up pouch, gusseted pouch

2)Regular or Irregular pouch

4

Spout position adaption

1)Top center spout

2)Corner spout



Technical Specification


1)Application:Viscous liquid

2)Packaging Range(ml):900-3000

3)Turntable:4

4)Packing Speed (Pouches/min):60-100

5)Filling Accuracy:+/-0.5%

6)Power Consumption(kW):5.0

7)Power Requirement:380V 50/60HZ

8)Compress Air Requirement(Mpa) :0.65

9)Compress Air Consumption(m3/min):1.0

10)Liquid Level Control Device(set):1

11)Capping and Pre-capping device(set):1

12)Pouch Feeding Device(set):1

13)Approximate Net Weight(kg):5000

14)Final Product Discharge Conveyor Length(mm):3000

15)Dimension(mm)-Length of Pouch Feeder:2200

16)Dimension(mm)-main machine:2300*2100*3000


Video Links


Click the following links to browse the related video on our Youtube site


https://www.youtube.com/playlist?list=PLoI3FEOZ6j4PTgb5XamsOisrEl7bT_Sl1
