Product Code: PP109
This 2-in & 2-out pakcing machine is ideal for businesses seeking high-speed, flexible, and dependable packaging automation.
This packaging machine is suitable for a wide range of products: granules (nuts, frozen fruit, candy, pet food), powders (flour, coffee powder, seasoning, protein powder), and liquids (honey, sauce, ketchup, juice).

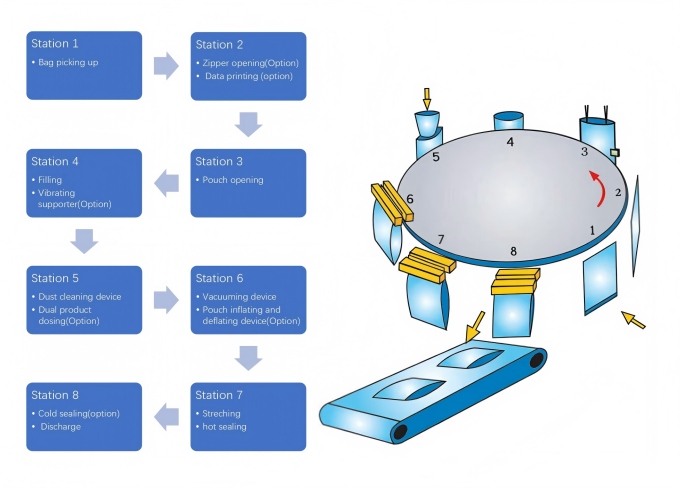

1）8-station design to meet complex packaging process requirements, apply for flat pouch as standard‚ stand up pouch‚ zipper bag at option
2）Configured with different dosing devices‚ capable to pack liquids‚ powder‚ granule‚ or other irregular solidity materials
3) PLC touch screen control‚ easy to operate‚ easy for troubleshooting
4) PID temperature control system for reliable sealing effect
5) Single shaft transmission‚ accurate operation‚ high reliability‚ easy maintenance
6) Multi-mechanical transmission station‚ accurate stroke‚ reliable operation
7) High-strength and high-precision frame‚ higher precision‚ high-strength cam‚ more stable operation
8) Configured with vacuum pump system for pick up and open bag‚ reduce the air consumption of the whole system‚ energy saving and noise reduction
9) Synchronous bag width adjustment device‚ 1 rotating wheel adjustment controls all stations to fit with new bag width.
10) Optionally‚ horizontal bag feeding , centralized self-lubricating system‚ with small lubricating oil tanks and distribution pipes‚ easy maintenance
11) No bag opening‚ no filling and sealing interlock
12) No filling‚ no sealing interlock
Advantages

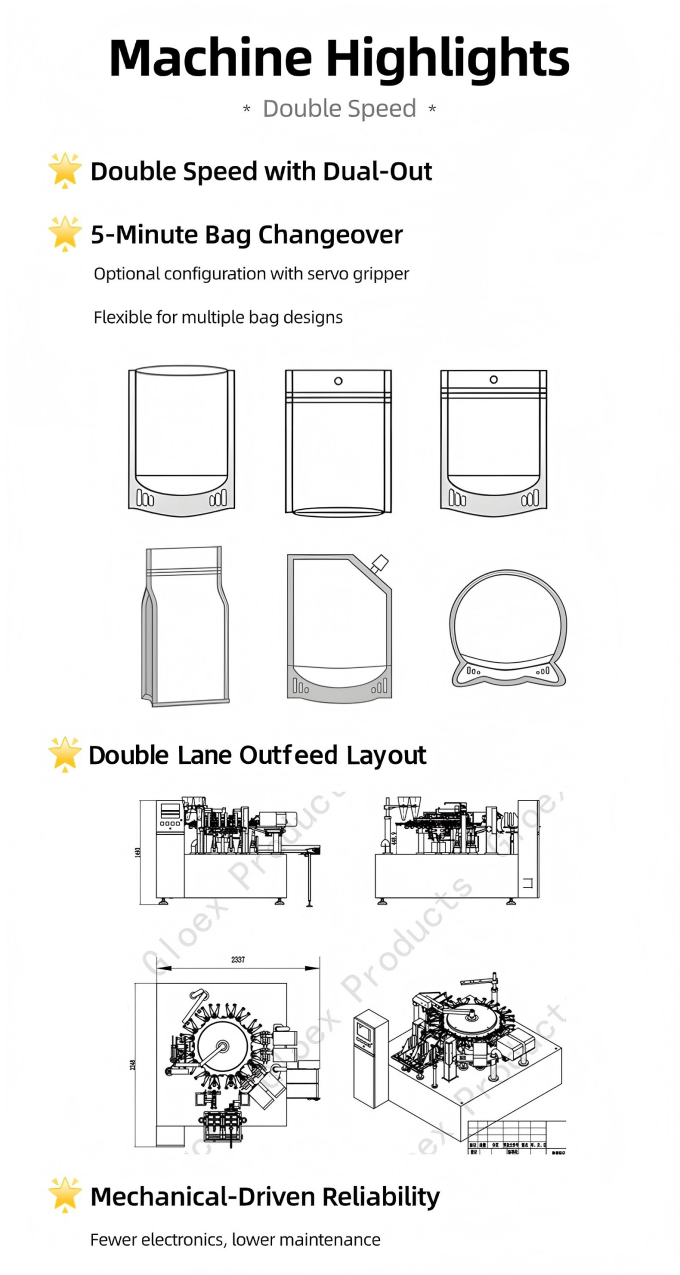

This packaging machine features dual-out design for double speed, 5-minute quick bag changeover for maximum flexibility, 8 working stations for versatility, and mechanical-driven reliability with fewer electronics for lower maintenance.
