Product Code:PP350A

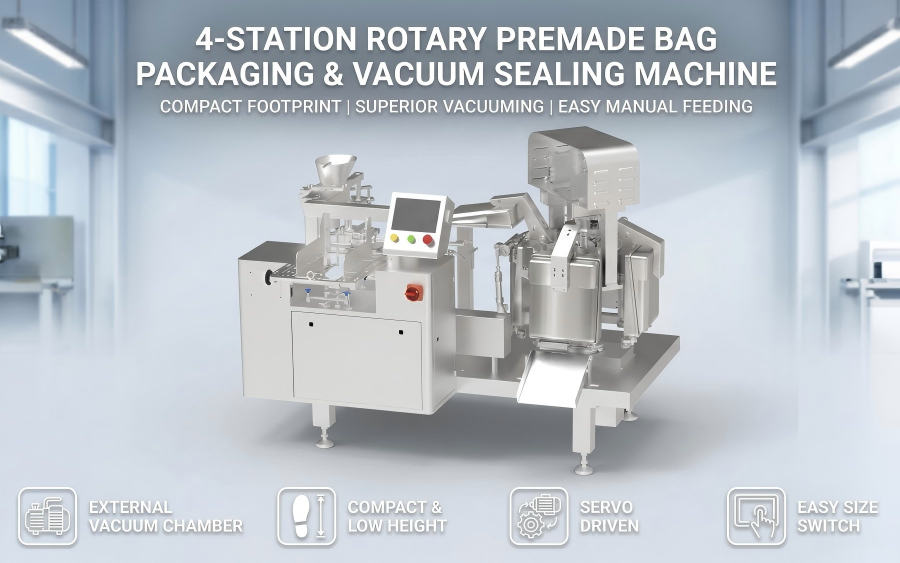

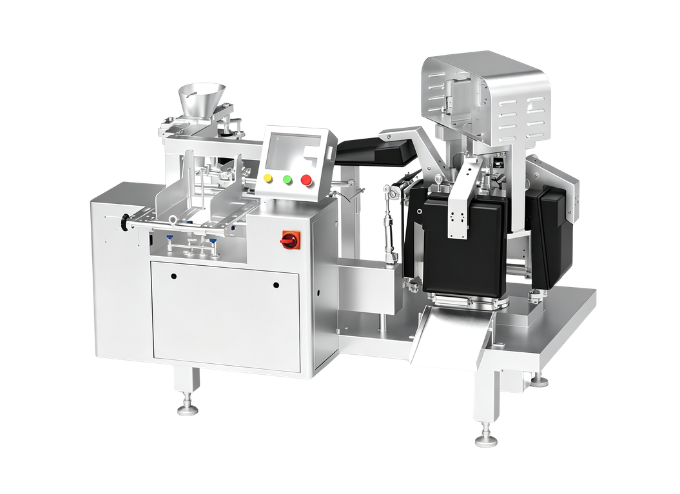

This rotary servo-driven premade pouch packaging machine features a four-station configuration.Configure vacuum chamber to meet vacuum packaging requirements.
Related Video
For vacuum packaging of seafood, bean products, vegetables, and other foods. 4-station rotary servo premade pouch machine with 304 stainless steel frame, vacuum chamber and electric jaw adjustment unit, supports rapid pouch size changeover.

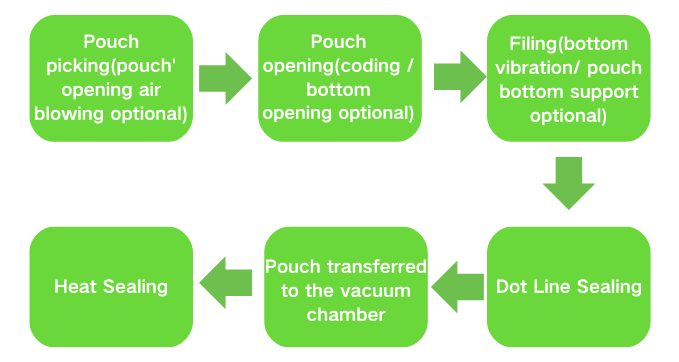

Working Processes
Features

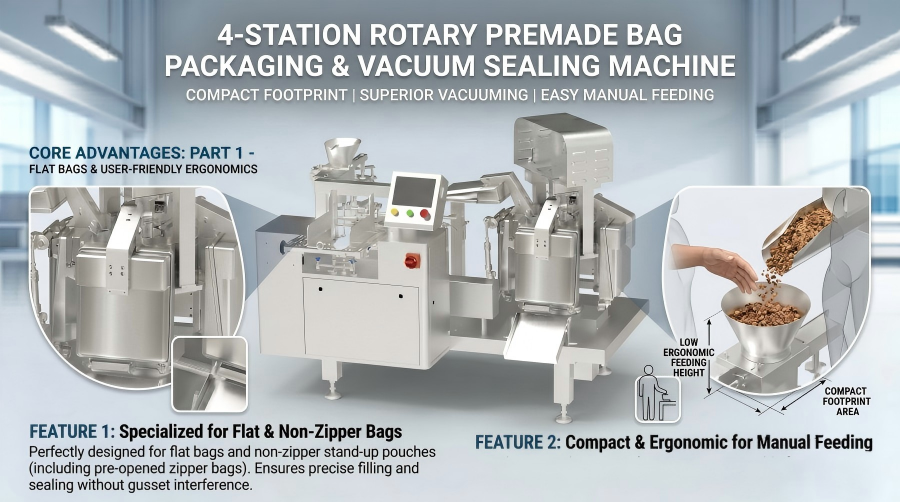

l Suitable for flat bags and non-zipper stand-up pouch filling and sealing
l Mainframe and surfaces made of stainless steel 304
l Product contact parts made of stainless steel 304
l Fully servo-controlled system ensures reliable, fast, and precise operation
l Electric clamps adjustment, for quick and easy switching between bag sizes
l Integrates 4 independent vacuum chambers with a pneumatic transfer mechanism; centralised control synchronises with the packaging unit for fully automatic vacuum packaging
l Servo motor output torque monitored to detect trapped material, ensuring neat and consistent seal quality
l Rated electrical components available for harsh or hazardous environments
Advantages
l Smart Bag opening
Servo-controlled bag opening verified by negative pressure, if a bag fails to open,the material dispensing is halted immediately.
l Strict Interlock Interventions
No bag opening = No filling & No sealing.Absolute precision in avoiding material waste.
l Empty Bag Recirculation
Advanced detection ensures empty bags are recirculated automatically, so only properly filled products enter the vacuum unit.
l Comprehensive Alarms
Built-in fault diagnosis program with distinct audible and visual alerts displayed directly on the HMI.
Technical Specification
Catalogue/PP350A-XXX | 4200 | 4300 | 4/4-200V | 4/4-300V |
Number of Stations | 4 | 4 + 4 Vacuum Chambers | ||
Bag Width Range (mm) | 80 – 200 | 160 – 300 | 120 – 200 | 180 – 300 |
Bag Length Max (mm) | 380 | 450 | 300 | 450 |
Applicable Bag Types | Flat & non-zipper stand-up | |||
Mainframe Material | SS304 | |||
Control System | Servo + PLC with HMI | |||
Bag Opening Verification | Negative-pressure detection | Servo-controlled + negative-pressure detection | ||
Empty Bag Recirculation | Yes | |||
Clamp Adjustment | Electric (tool-less) | |||
Optional Vacuum Unit | No | Yes (4 chambers) | ||
