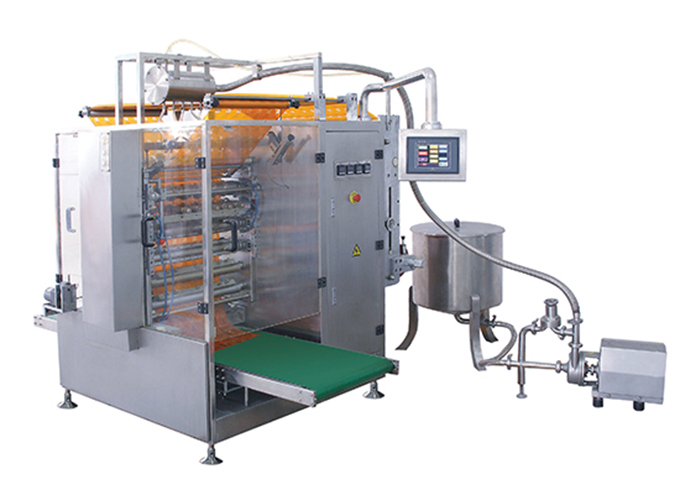

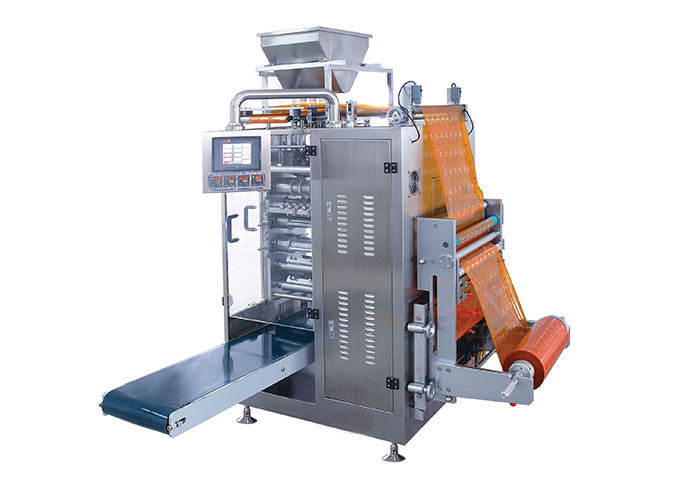

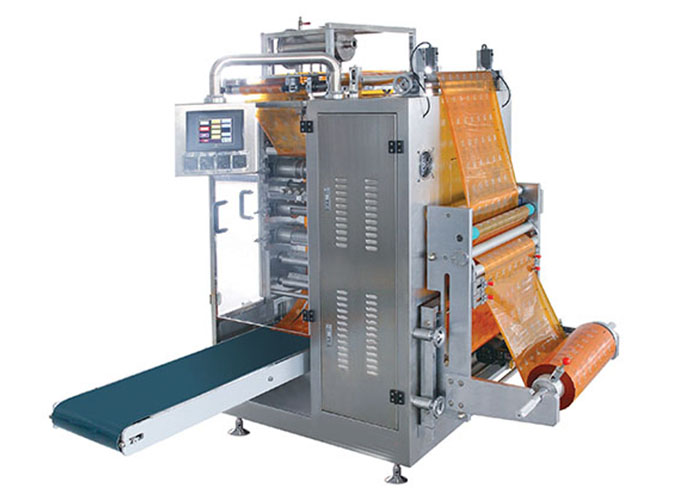

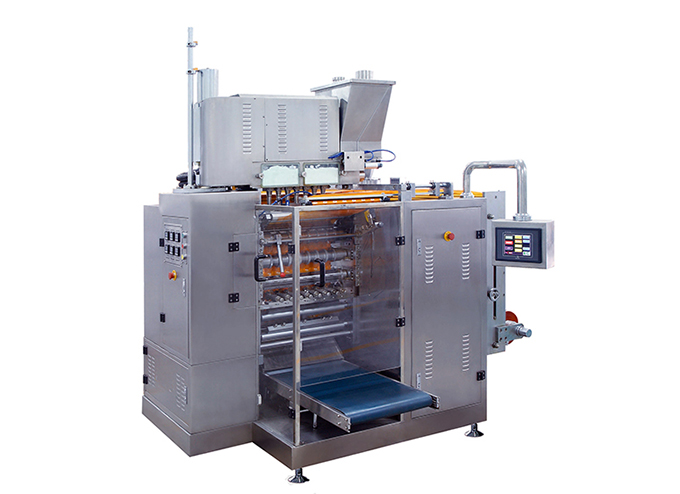

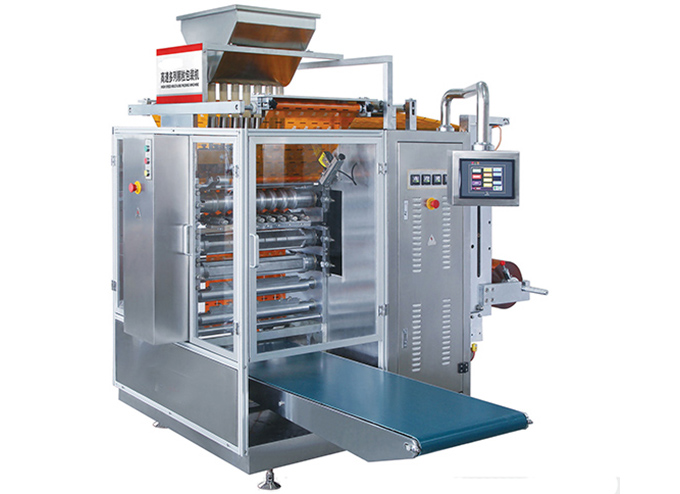

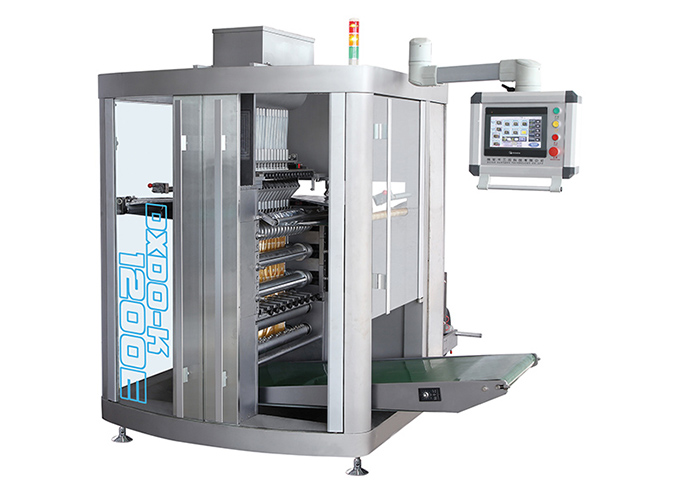

Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
  • Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine
Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal MachineAutomatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine

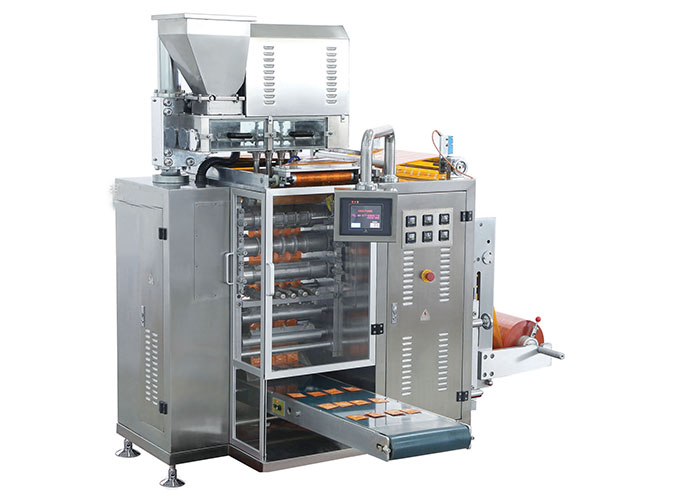

Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine


    Product Code: PP230


    This machine is applicable for dosing powder, granule or liquid and sealing in form of 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting

Inquire Now
Product Introduction


Application


This machine is applicable for dosing powder, granule or liquid and sealing in form of 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting. the detail application description as following table:


IssueApplication Description
Applicable Sealing Style4 sides sealing
Applicable ProductsConfigure with different dosing devices, capable to pack with liquid, powder or granule

Applicable Packaging

Material

Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL/PE etc.


Working Process

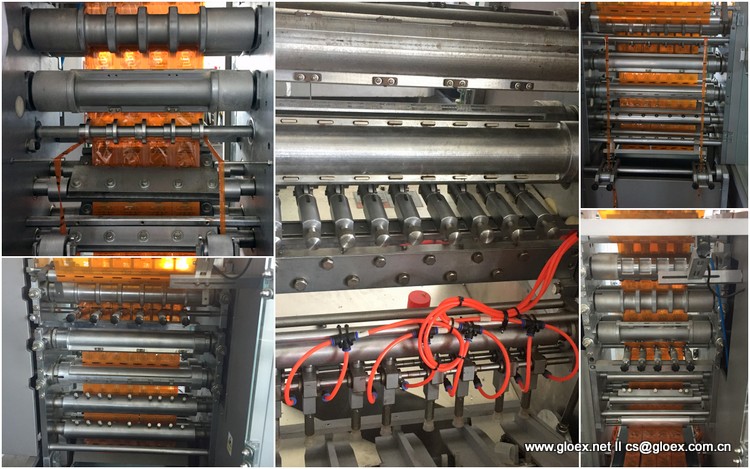

The working processes include: The machine pull laminate packaging film to the film splitting devices, and the film split into specific lanes, then go through the sealing mould to seal longitudinal side and first horizontal side, in the meanwhile, the dosing device dose the product into the sachet through the open side, then will do the last side sealing and cutting off. Upon the different product



Features


Standard Features



     PLC & HMI Touch Screen Control

     Intelligent PID temperature controller

     3 heating section design with temperature balance adjustment system

     Servo motorized sub-processes

     Automatic sachet length adjustment

     Film edge trimming and collecting

     Embossing type coder integrated

     Out-feed conveyor

     Powered film unwind with film tension control

     Automatic film tracking’

     Seal cooling device

     Film slitters and sachet forming rollers-set per sachet size

     Stainless steel 304 construction with sand blasting process



Optional Features

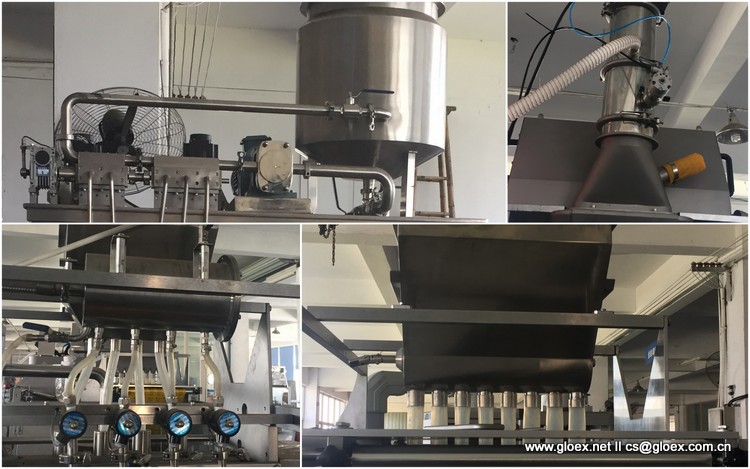

     Multi-lane volumetric filler, servo auger filler or servo liquid fillers

     Stainless steel 316 for product touching parts

     Straight or zigzag cut

     Tear Notch

     Hot stamp, inkjet, or thermal transfer printer

     String sachet cut

     Empty sachet detection and rejection

     Dust suction

     Static elimination

     In-feed system

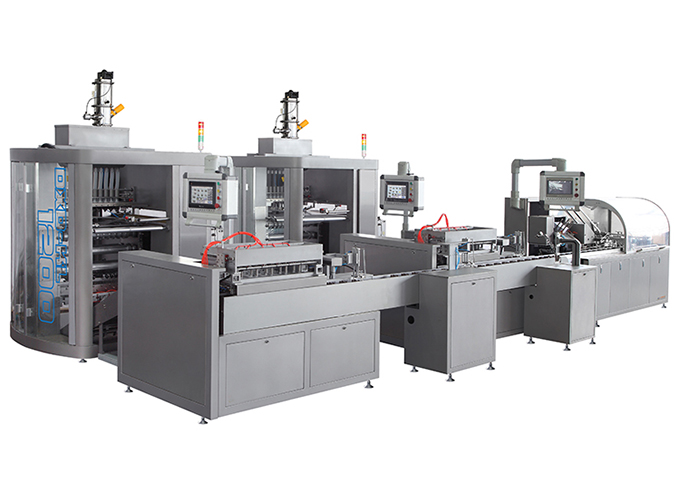

     Robotic pick-and-place unit and automatic cartoning solutions



Technical Specification



Catalogue/3Z-xxx-E5009001200
Sachet Size-Length(mm)

50-300/Liquid

50-120/Solid

50-300/Liquid

50-120/Solid

50-300/Liquid

50-120/Solid

Sachet Size-Width(mm)32-10532-10532-105
LanesCustomizeCustomizeCustomize
Film Width(mm)5009001200
Packing Speed(CPM)30-6030-6030-60
Power RequirementAC380 3P/50HZ AC380 3P/50HZAC380 3P/50HZ
Power Consumption(kW)101215
Max Outer Diameter of Film Roll (mm)300300300
Inner Diameter of Film Roll (mm)757575
