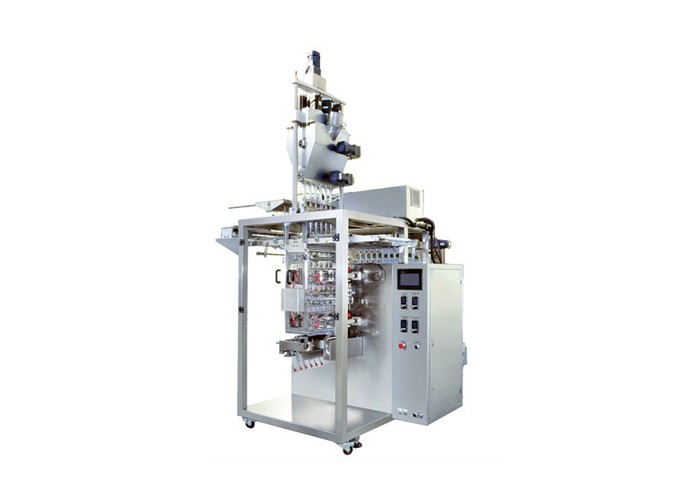

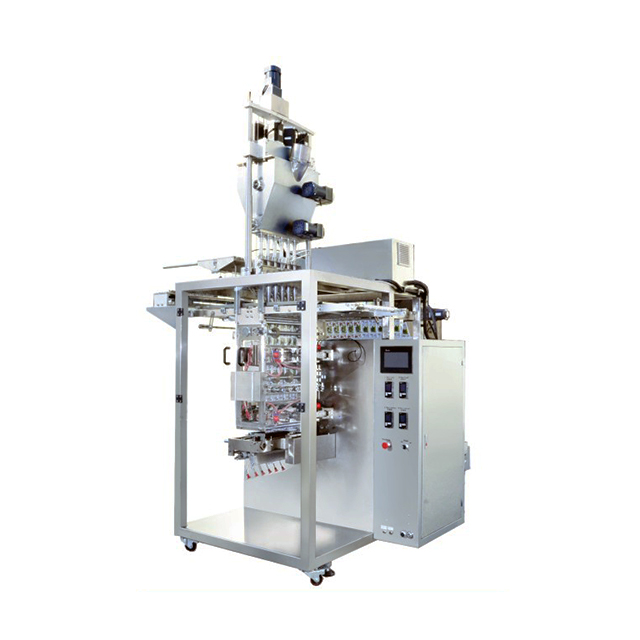

Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine
  • Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine
Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine

Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine


    Product Code: PP157A


    This machine is applicable for dosing powder products and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


Inquire Now
Product Introduction

Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine

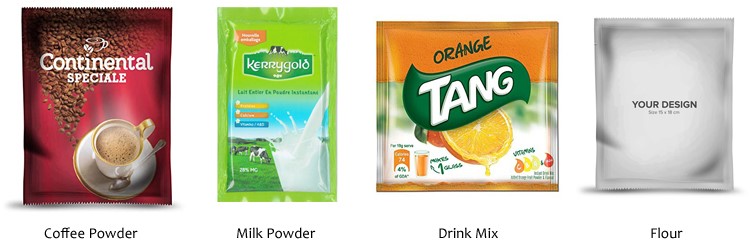

Application


This machine is applicable for dosing powder products and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine

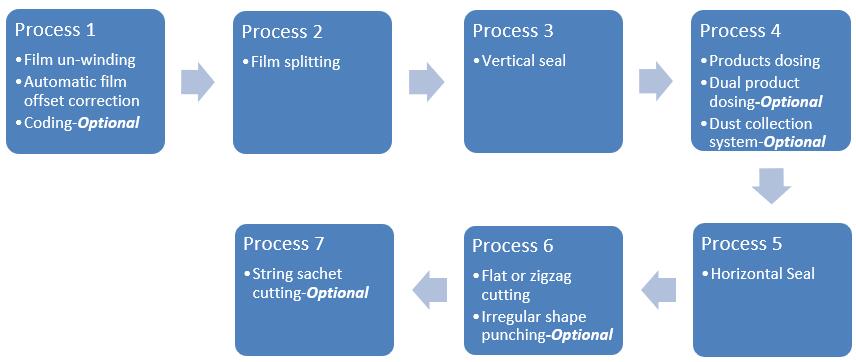

Working Process

Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine



Features

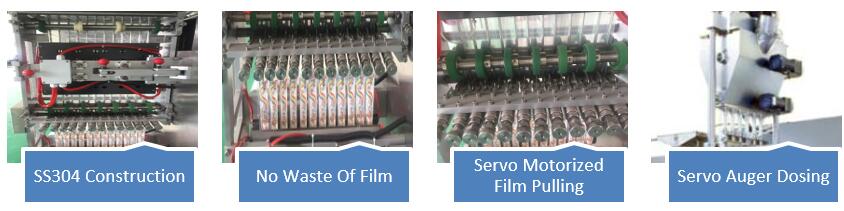

Standard Features



•     Mainly stainless-steel 304 construction

•     Stainless-steel 304 for product touching parts

•     No waste of film design, no reserved film edge required

•     PLC & Touch screen HMI control

•     Servo motorized film pulling configuration

•     Pneumatic piston pumps dosing for each lane with manual dosing range adjustment

•     Intelligent PID temperature controller

•     Door open and machine stop interlock

•     No packaging film and machine stop interlock


Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine

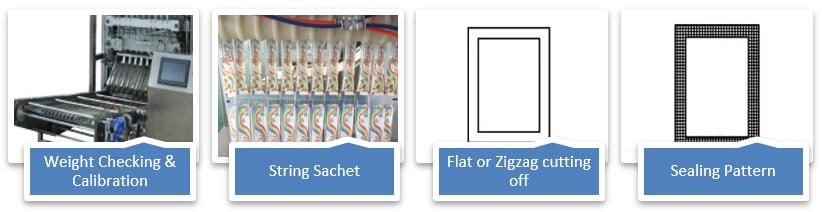

Optional Features



•     Stainless Steel 316 for product touching parts

•     Sealing pattern

•     Flat or Zigzag cutting off

•     Round and other irregular shape cutting off

•     String sachets

•     Tear notch

•     Embossing, ribbon, inkjet or laser coding

•     Dual products dosing

•     Double layer tube and Dust collection system

•     CIP connectable

•     Grouping conveyor with/without sachet weight checking, rejecting and target weight calibration

•     Sachet counting system

•     Cartoning or bagging system


Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine

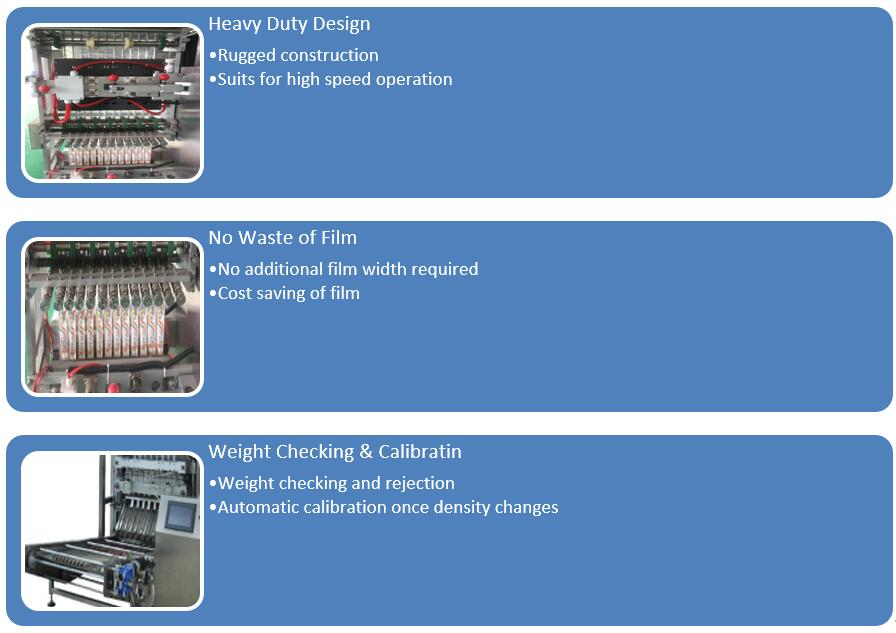

Advantages

Automatic Multi-Lane Intermittent Powder Sachet Form Fill Seal Machine


Technical Specification


Type 4W-xxx480SF680SF880SF1080SF
Dosing MethodServo augersServo augersServo augersServo augers
Packaging Speed35-45 sachets/min/lane35-45 sachets /min/lane35-45 sachets /min/lane35-45 sachets /min/lane
Max film width480 mm680 mm880 mm1080mm
Lanes3-7 lines5-12 lines5-14 lines5-14 lines
Filling Accuracy+/- 1-2%+/- 1-2%+/- 1-2%+/- 1-2%
Filling Range1-50 g1-50 g1-50 g1-50 g
App Air Supply0.3 CBM/min, 0.6 Mpa0.4 CBM/min, 0.6 Mpa0.6 CBM/min, 0.6 Mpa0.85 CBM/min, 0.6 Mpa
Power Consumption2.7 kw3.3 kw3.6 kw4.2kw
Power Supply380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz


Note:

1)         The speed of packaging subject to the filling volume, size of sachet, characteristic of powder and accuracy requirement

2)         The filling accuracy subject to the packaging speed, filling volume and characteristic of powder


Related Links



Following is the link of video playlist on our Youtube site


Automatic Multi-Lanes 4-Side Sealed Sachet Form Fill Seal Machine


If need more information , please contact us at: cs@gloex.com.cn
