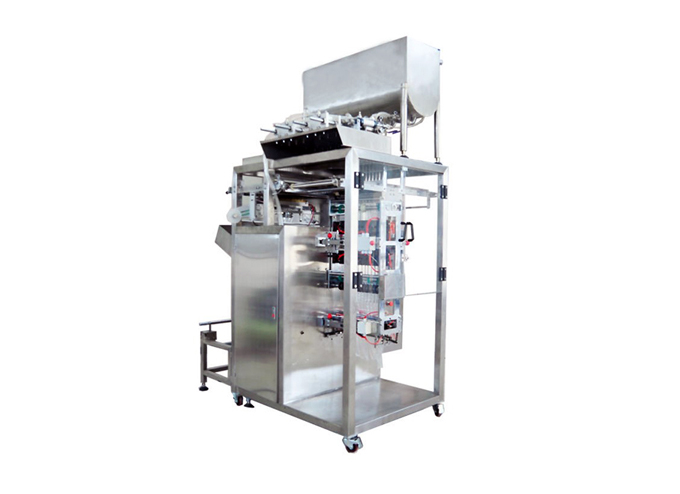

Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine
  • Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine
Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine

Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine


    Product Code: PP157B


    This machine is applicable for dosing liquid, semi-liquid products and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.



    By configure with different accessories, suitable for food, cosmetic, medicine packing such as ketchup, chocolate, mayonnaise, olive oil, chili sauce, honey, drinks, jelly, medicine, shampoo, cream, lotion etc.


Inquire Now
Product Introduction

Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine

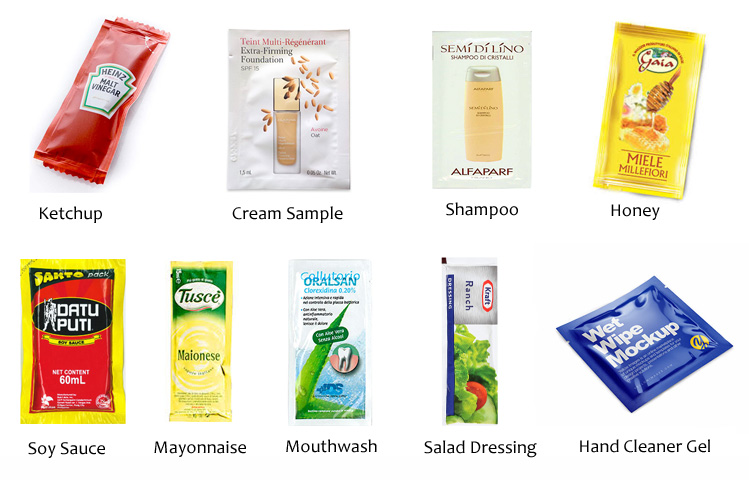

Application


This machine is applicable for dosing liquid, semi-liquid products and sealing in form of sachet, with 4 side sealing style, include the sachet forming, product dosing, filling and sachet sealing processes, in different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.



By configure with different accessories, suitable for food, cosmetic, medicine packing such as ketchup, chocolate, mayonnaise, olive oil, chili sauce, honey, drinks, jelly, medicine, shampoo, cream, lotion etc.

Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine

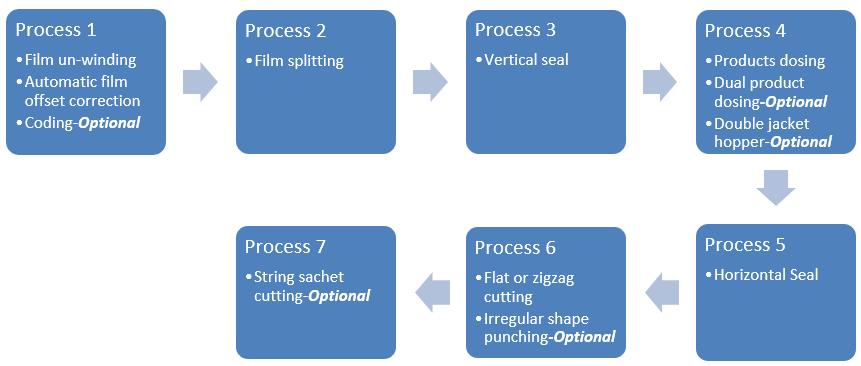

Working Process

Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine



Features

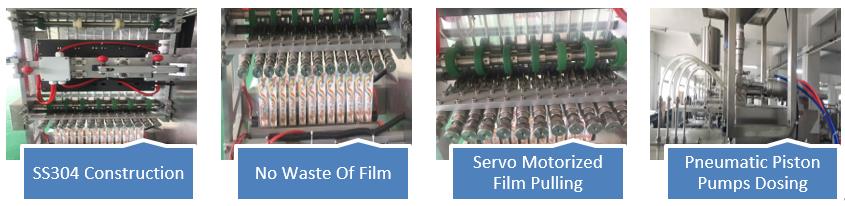

Standard Features



•     Mainly stainless-steel 304 construction

•     Stainless-steel 304 for product touching parts

•     No waste of film design, no reserved film edge required

•     PLC & Touch screen HMI control

•     Servo motorized film pulling configuration

•     Pneumatic piston pumps dosing for each lane with manual dosing range adjustment

•     Intelligent PID temperature controller

•     Door open and machine stop interlock

•     No packaging film and machine stop interlock


Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine

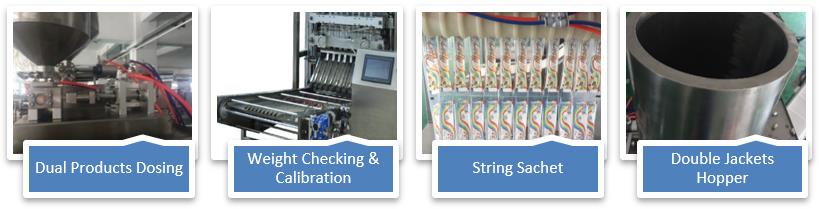

Optional Features



•     Stainless Steel 316 for product touching parts

•     Sealing pattern

•     Flat or Zigzag cutting off

•     Round and other irregular shape cutting off

•     String sachets

•     Tear notch

•     Embossing, ribbon, inkjet or laser coding

•     Dual products dosing with double layer tube

•     Servo motorized pumps

•     CIP connectable and/or double jacket heat insulation hopper

•     Grouping conveyor with/without sachet weight checking, rejecting and target weight calibration

•     Sachet counting system

•     Cartoning or bagging system


Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine

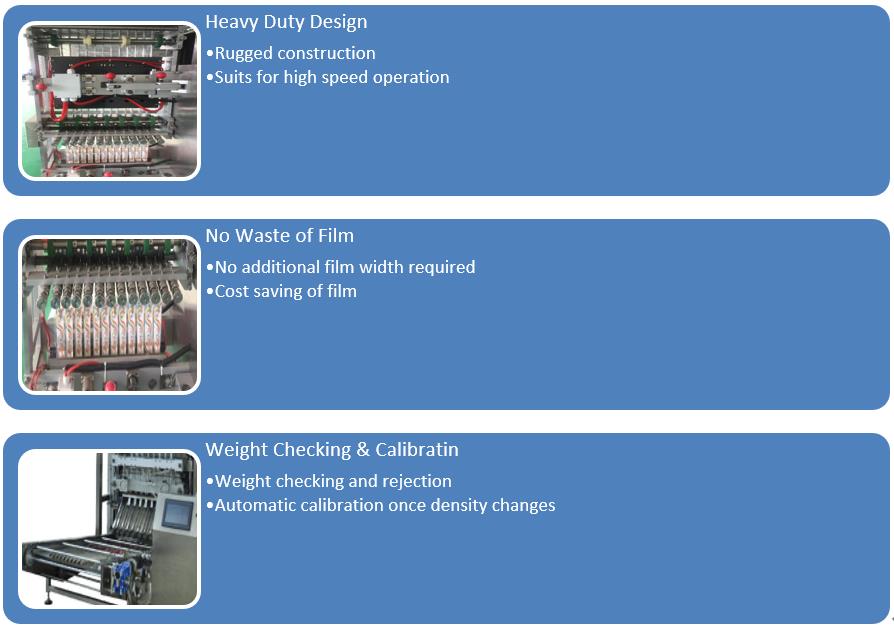

Advantages


Automatic Multi-Lane Intermittent Liquid Sachet Form Fill Seal Machine


Technical Specification



Type 4W-xxx480SY680SY880SY1080SY
Dosing MethodPiston pumpsPiston pumpsPiston pumpsPiston pumps
Packaging Speed35-45 sachets/min/lane35-45 sachets /min/lane35-45 sachets /min/lane35-45 sachets /min/lane
Max film width480 mm680 mm880 mm1080mm
Lanes3-7 lines5-12 lines5-14 lines5-14 lines
Filling Accuracy+/- 1-2%+/- 1-2%+/- 1-2%+/- 1-2%
Filling Range1-100 ml1-100 ml1-100 ml1-100 ml
App Air Supply0.3 CBM/min, 0.6 Mpa0.4 CBM/min, 0.6 Mpa0.6 CBM/min, 0.6 Mpa0.85 CBM/min, 0.6 Mpa
Power Consumption2.7 kw3.3 kw3.6 kw4.2kw
Power Supply380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz


Note:

1)         The speed of packaging subject to the filling volume, size of sachet, characteristic of liquid and accuracy requirement

2)         The filling accuracy subject to the packaging speed, filling volume and characteristic of liquid



Related Links



Following is the link of video playlist on our Youtube site


VD157A Intermittent Multi lane 4 side sealed sachet form fill seal machine


VD157C-Intermittent Multi-lane 4 side sealed sachet form fill seal machine+Sanitizer +10Lanes+500 spm


VD157D Intermittent Multi lane 4 side sealed sachet form fill seal machine+ Juice stick +12 Lanes


If need more information , please contact us at: cs@gloex.com.cn
