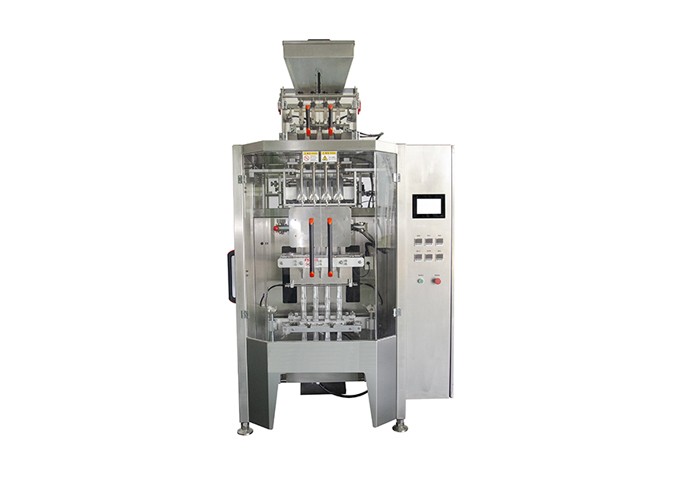

Automatic Multi-Lane Granule Stick Form Fill Seal Machine
  • Automatic Multi-Lane Granule Stick Form Fill Seal Machine
Automatic Multi-Lane Granule Stick Form Fill Seal Machine

Automatic Multi-Lane Granule Stick Form Fill Seal Machine


    Product Code: PP262C


    This machine is applicable for dosing granule and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.

Inquire Now
Product Introduction


Application


This machine is applicable for dosing granule and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


Automatic Multi-Lane Granulate Stick Form Fill Seal Machine

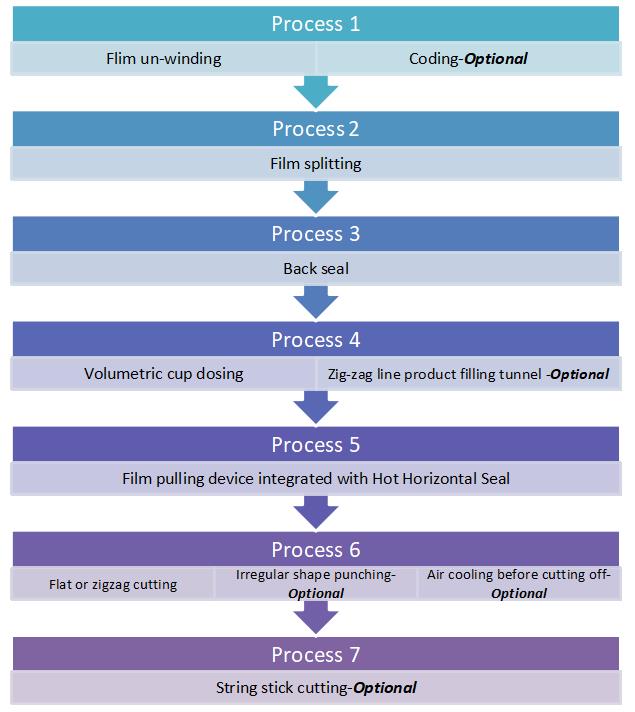

Working Processes

Automatic Multi-Lane Granule Stick Form Fill Seal Machine

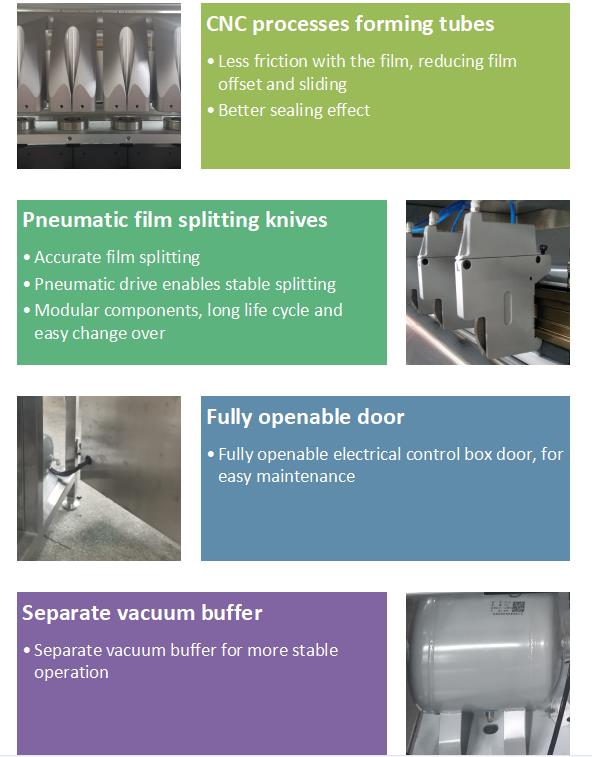

Features


Standard Features


• Mainly stainless-steel 304 construction and product touching parts

• CNC processes forming tubes with less friction with the film, reducing film offset and sliding

• Pneumatic round shaped film splitting knives, long life cycle and easy change over

• No waste of film design, no reserved film edge required

• PLC & Touch screen HMI control

• Guided servo motorized film pulling device integrated with hot horizontal seal

• Intelligent PID temperature controller

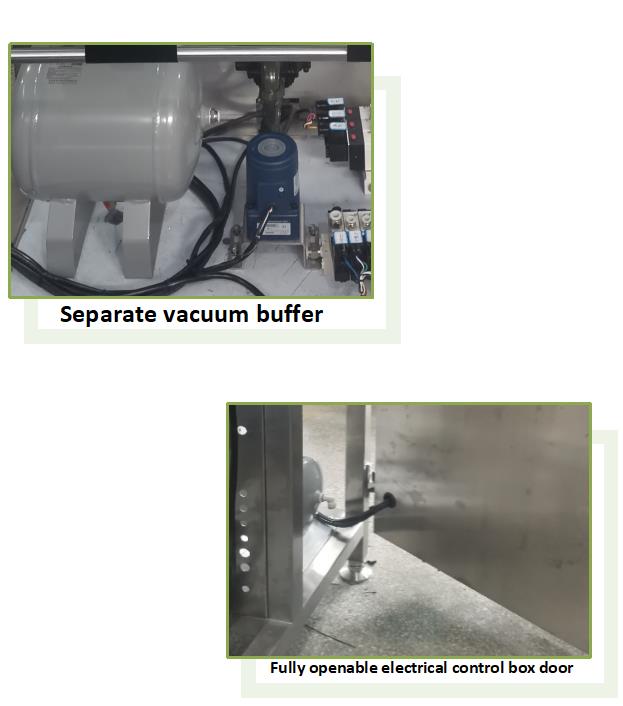

• Fully openable electrical control box door, for easy maintenance

• Door open and machine stop interlock

• No packaging film and machine stop interlock

• Separate vacuum buffer for more stable operation


Automatic Multi-Lane Granule Stick Form Fill Seal Machine

Automatic Multi-Lane Granule Stick Form Fill Seal Machine

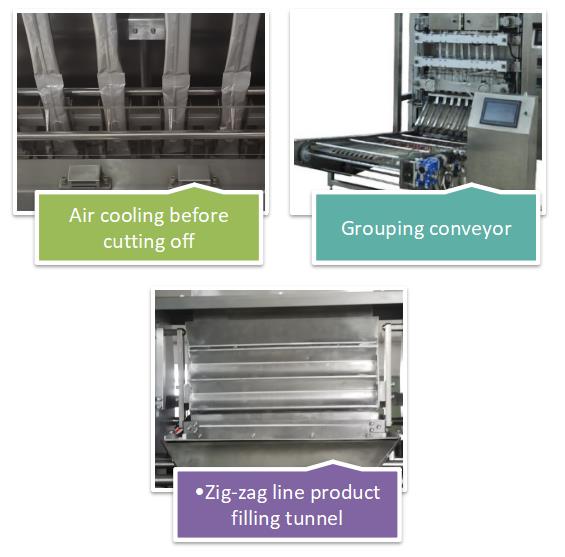

Optional Features


• Stainless Steel 316 for product touching parts

• Sealing pattern

• Air cooling before cutting off

• Flat or Zig-zag cutting off

• Round and other irregular shape cutting off

• String sticks

• Tear notch

• Embossing, ribbon, inkjet or laser coding

• Grouping conveyor

• Stick counting system

• Cartoning or bagging system

Automatic Multi-Lane Granule Stick Form Fill Seal Machine


Advantages


Automatic Multi-Lane Granule Stick Form Fill Seal Machine


Technical Specification


Type 4W-xxx4T-KB-44T-KB-64T-KB-8
Dosing MethodVolumetric CupVolumetric CupVolumetric Cup
Packaging Speed20-45 sticks/min/lane20-45 sticks/min/lane20-45 sticks/min/lane
Max film width450 mm450 mm450 mm
Lanes4 lines6 lines8 lines
Sachet Length30-170 mm30-170 mm30-170 mm
Sachet Width>=18mm>=18mm>=18mm
App Air Supply0.8Mpa, 0.8m3/min0.8Mpa, 0.8m3/min0.8Mpa, 0.8m3/min
Packaging Film RollHeat sealable laminate filmHeat sealable laminate filmHeat sealable laminate film
Power Supply220 VAC /1 Phase/ 50 Hz220 VAC /1 Phase/ 50 Hz220 VAC /1 Phase/ 50 Hz


Note:

1) The speed of packaging subject to the filling volume, size of stick, characteristic of granule and accuracy requirement

2) The filling accuracy subject to the packaging speed, filling volume and characteristic of granule

3) Need to configure with different type or set of volumetric cups to cover the full filing range, and different characteristic of granule
