Product Code: PP230

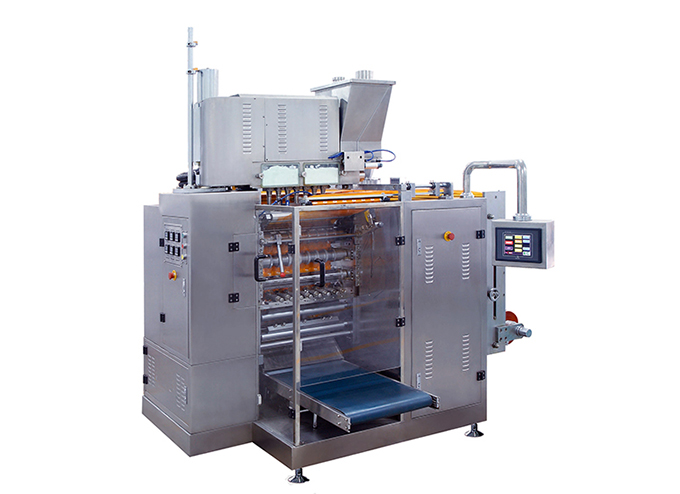

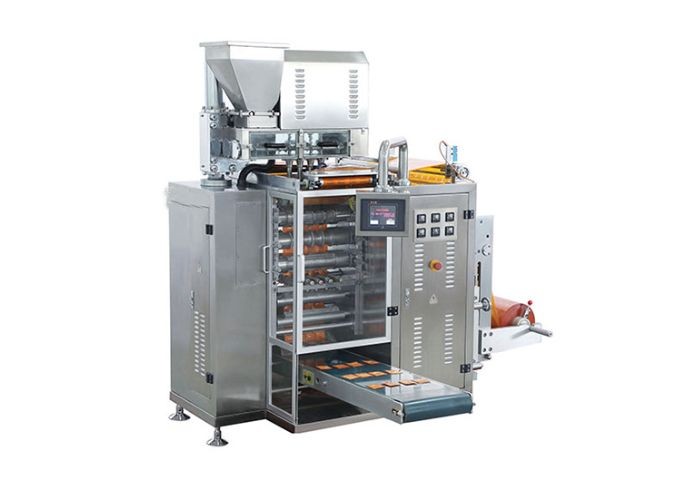

This high-speed continuous multi-lane FFS machine is specially designed for powder four-side sealed sachet packaging. It integrates pouch forming, precision auger dosing, filling and sealing in one process. Both single sachet cutting and connected string cutting are available to meet diversified production requirements.
Related Video
This machine is applicable for dosing powder and sealing in form of 4 side sealed sachet, include the sachet forming, product dosing, filling and sachet sealing processes, with single cutting or string sachet cutting. the detail application description as following table:
| Issue | Aplication Description |
| Applicable Sealing Style | 4 sides sealing |

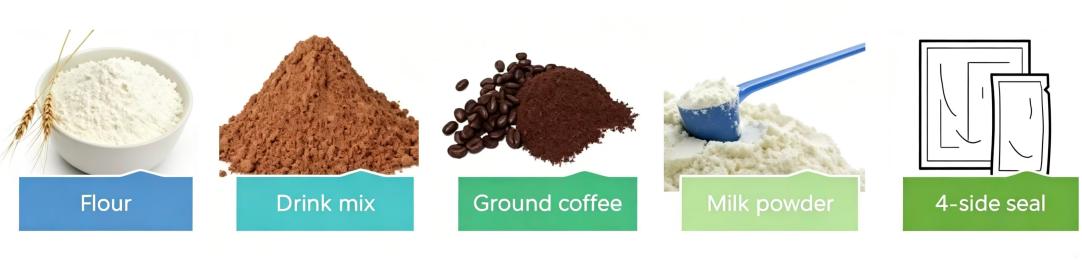

| Applicable Products | Configure with auger, capable to pack powder products(e.g. flour, drink mix, coffee powder, milk powder, etc.) |
| Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE, BOPP/VMPET/PE, PET/AL/PE etc. |
Typical applications:

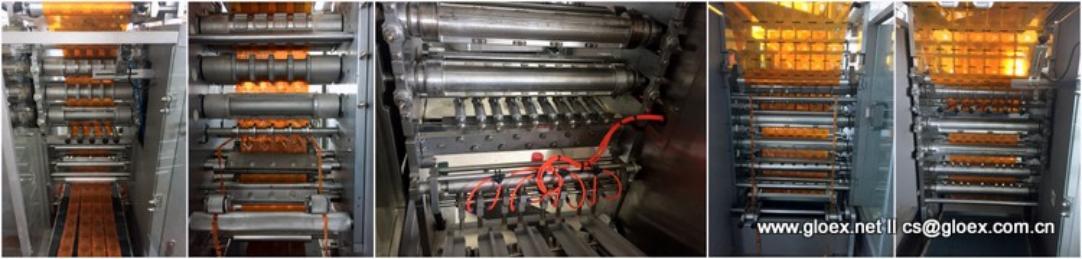

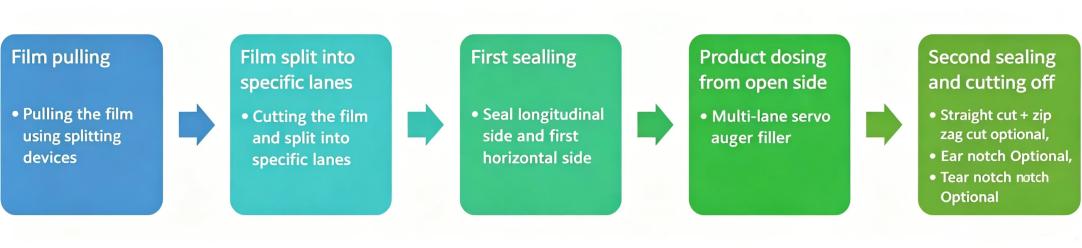

The working processes include: The machine pull laminate packaging film to the film splitting devices, and the film split into specific lanes, then go through the sealing mold to seal longitudinal side and first horizontal side, in the meanwhile, the dosing device dose the product into the sachet through the open side, then will do the last side sealing and cutting off. Upon the different product
Features
l Multi-lane servo auger filler for powder dosing
l PLC & HMI Touch Screen Control
l Intelligent PID temperature controller

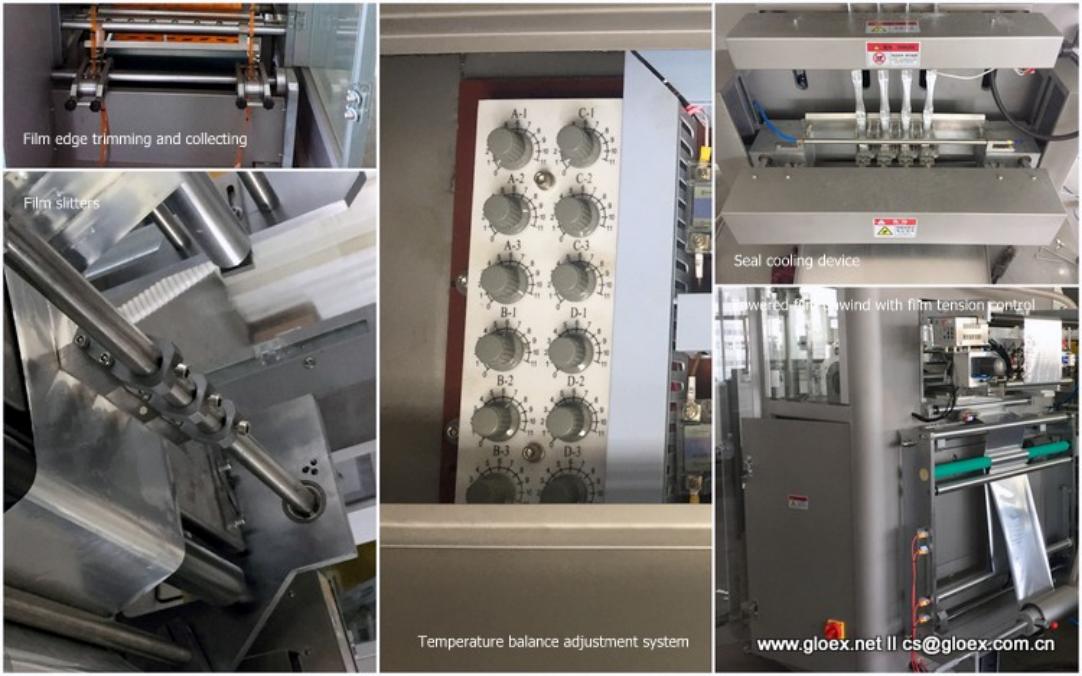

l 3 heating section design with temperature balance adjustment system
l Servo motorized sub-processes
l Automatic sachet length adjustment
l Film edge trimming and collecting
l Embossing type coder integrated
l Out-feed conveyor
l Powered film unwinding with film tension control
l Automatic film centering control
l Seal cooling device
l Film slitters and sachet forming rollers-set per sachet size
l Stainless steel 316 construction for product touching parts and 304 for other main parts
l Stainless steel 316 for product touching parts

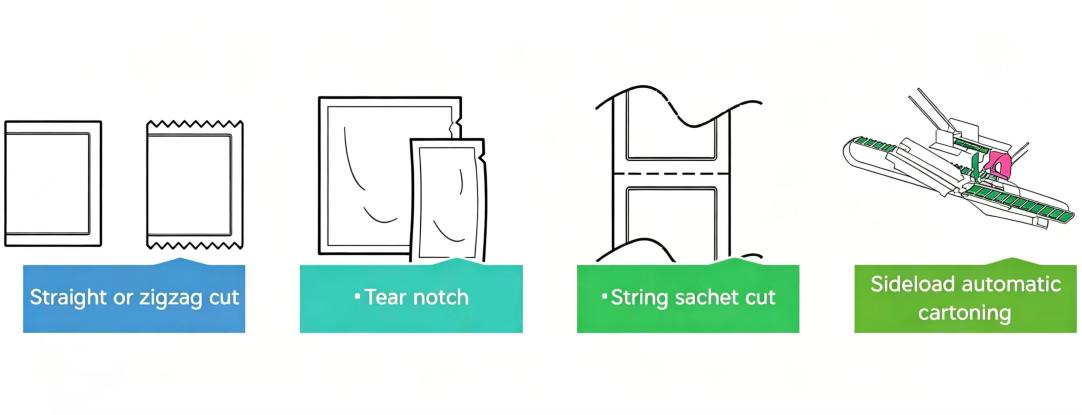

l Straight or zigzag cut
l Tear notch
l Inkjet, or thermal transfer printer
l String sachet cut
l Empty sachet detection and rejection
l Dual products dosing
l Static elimination
l In-feed system

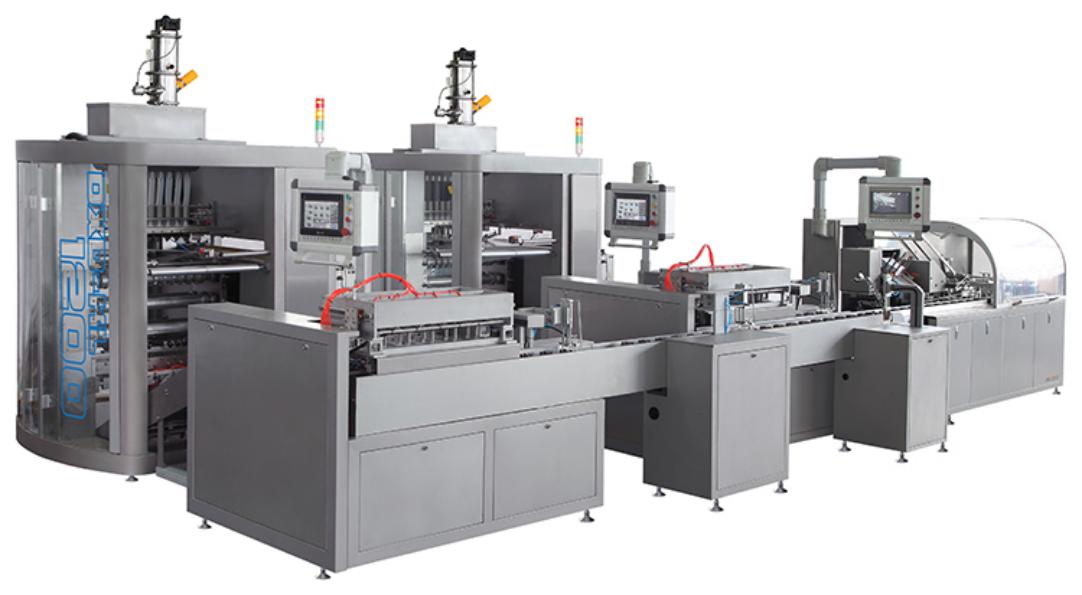

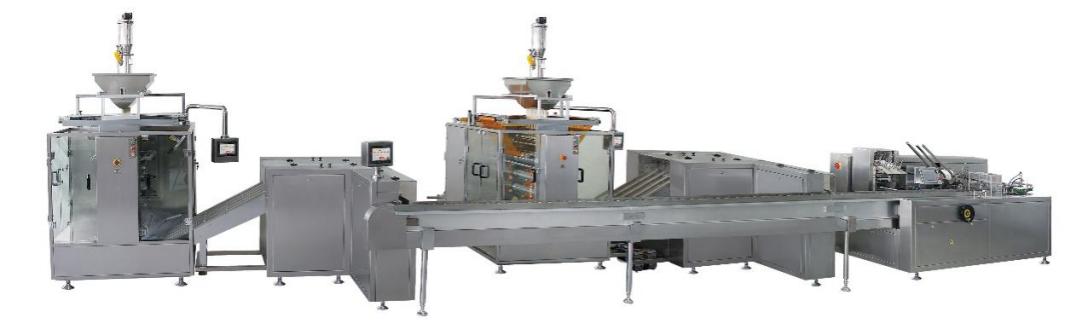

l Sideload automatic cartoning solutions
Technical Specification
| Catalogue/3Z-xxx-E | 500 | 900 | 1200 |
| Sachet Size-Length(mm) | 50-120 | 50-120 | 50-120 |
| Sachet Size-Width(mm) | 32-105 | 32-105 | 32-105 |
| Lanes | Customize | Customize | Customize |
| Film Width(mm) | 500 | 900 | 1200 |
| Packing Speed(CPM) | 30-60 | 30-60 | 30-60 |
| Power Requirement | 380VAC 3P+N+E 50HZ | 380VAC 3P+N+E 50HZ | 380VAC 3P+N+E 50HZ |
| Power Consumption(kW) | 10 | 12 | 15 |
| Max Outer Diameter of Film Roll (mm) | 420 | 300 | 300 |
| Inner Diameter of Film Roll (mm) | 75 | 75 | 75 |
