Product Code: PP178E

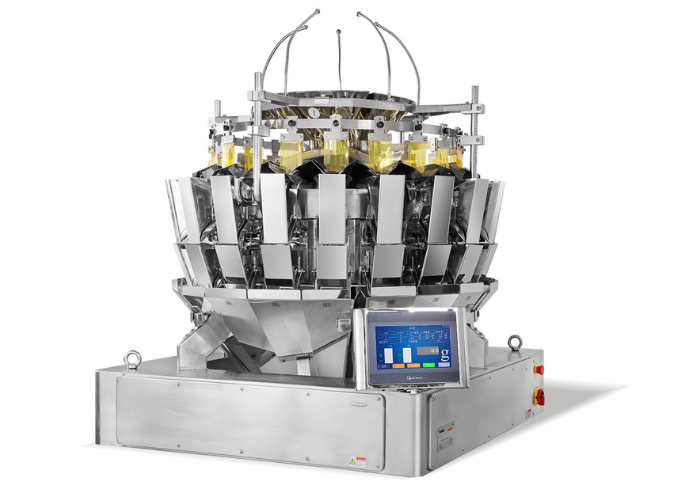

Equipped with special anti-crushing weighing buckets and discharge chutes, it effectively prevents fragile materials from being crushed during mixed conveying.
Related Video

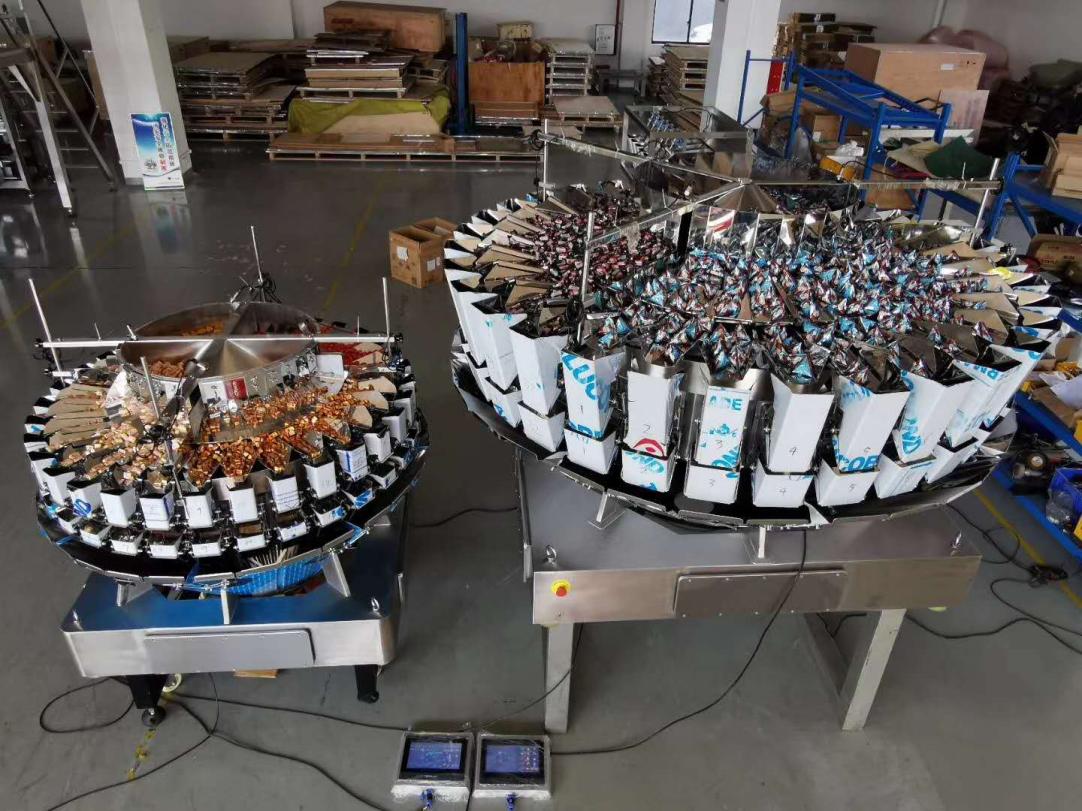

Suitable for mixing brittle and fragile materials，bottling‚ filling or bagging of granular or irregular block materials‚ with different capping or sealing devices to form a production line.
Features
l Suitable for mixing brittle and fragile materials
l The product contact surface adopts mirror smooth treatment process‚ or dimple steel plate or Teflon-coated 304 stainless steel structure can be used
l Product contact parts can be removed without tools‚ easy to clean
l Intelligent parameter settings are performed through the interactive touch screen HMI‚ multiple sets of parameter settings are stored‚ and a variety of material requirements are realized. The help menu makes it easy to learn and use
l High-precision weighing sensor and modular stepper motor actuator unit‚ automatically tare after each discharging
l The amplitude of each line can be adjusted independently during operation to make feeding more uniform
l Interchangeable hoppers‚ modular actuator units‚ discs or other control panels derived from modular design
l Automatic self-diagnosis‚ automatic pause when there is a shortage of materials‚ making weighing more stable
l Special bucket and discharge chute design for fragile products
l Suitable for bottling‚ filling or bagging of granular or irregular block materials‚ with different capping or sealing devices to form a production line
l Equipped with advanced integrated software‚ faster cutting speed‚ and flexible setting of positive and negative tolerances
l Different collecting hoppers or material distribution devices can be configured to adapt to different materials
l The control module can be replaced at will‚ and is common to different models such as independent drive boards and AD modules
l Single or double door buckets
l Rotating & Vibrating top cone
l Reject system and re-circulate conveyor belt
l Mixing function
l Counting function
l Multi Dump
l Multi-points discharge
l Special timing discharge hopper
l Dimple and/or Stainless steel 316 for product touching parts
l IP 65 construction
l Stainless steel 316 for product touching parts and/or stainless steel 304 central support and bucket driven kits
l Remote control through blue tooth, LAN
l Short drop discharge hopper for fragile product
Advantages
Technical Specification
| Catalogue/PP178-E-xxxx | 2016M2 | 2025M2 | 2025M4 |
| Pro-proportion Bucket | 20 | 20 | 24 |
| Weigh Bucket | 20 | 20 | 24 |
| Bucket Open Doors | Single door | Single door | Single door |
| Weighing Range-gram | 10-2,000 | 10-2,000 | 10-100 |
| Weighing Accuracy -gram | +/- 0.5-2 | +/- 0.5-2 | +/- 1-3 |
| Weighing Speed -WPM | 0-120 | 0-120 | 0-120 |
| Bucket Volume-Liter | 1.6 | 12.5 | 1.6 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 2.5 Kw | 2.5 Kw | 2.5 Kw |
| Max Products Mixing | 2 | 2 | 4 |
| Catalogue/PP178-E-xxxx | 2016M4 | 3205M4 | 3216TM6 | 3616TM6 |
| Pro-proportion Bucket | 24 | 32 | 32 | 36 |
| Weigh Bucket | 24 | 32 | 32*2=64 | 36*2=72 |
| Bucket Open Doors | Single door | Single door | Single door | Single door |
| Weighing Range-gram | 25-500 | 10-100 | 10-1,000 | 10-1,000 |
| Weighing Accuracy-gram | +/- 1-3 | +/- 1-3 | +/- 1-3 | +/- 1-3 |
| Weighing Speed-WPM | 0-120 | 0-180 | 0-240/0-40 | 0-280/0-50 |
| Bucket Volume-Liter | 1.6 | 0.5 | 1.6 | 1.6 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 2.0Kw | 2.0Kw | 3.5Kw | 3.5Kw |
| Max Products Mixing | 4 | 4 | 6 | 6 |
