Product Code: PP178G
Fitted with anti-stick scraper hoppers,which can perfectly process sticky,poor-flowing strip and sliced materials,enabling stable operation in humid workshop environments.
Related Video
Suitable for materials with poor flowability and stickiness, with blocks, strips, slices, and stems, such as fish slices, shrimp, meat slices, preserved vegetables, and pre-prepared meals etc.
Features
l Suitable for materials with poor flowability and stickiness, with blocks, strips, slices, and stems, such as fish slices, shrimp, meat slices, preserved vegetables, and pre-prepared meals etc
l Equipped with high-precision, high-standard, typically designed sensors
l Intelligent multi-sampling stabilization mode for more accurate weighing
l Intelligent fault alarm alerts for easier maintenance
l High-speed asynchronous discharge function effectively prevents material blockage
l New highly integrated modular design with CAN bus technology

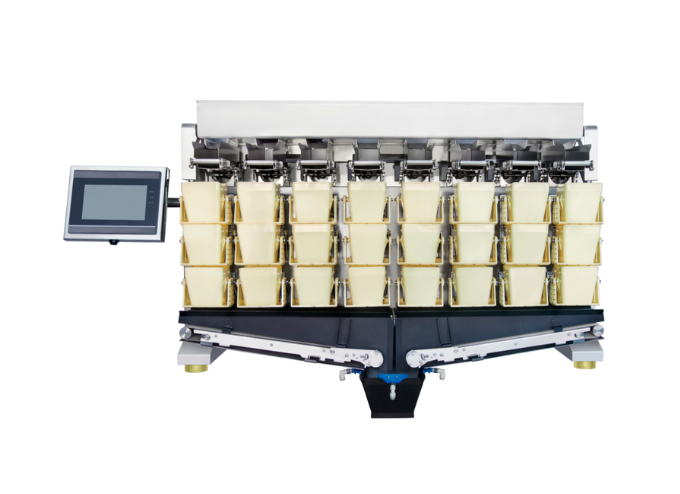

l Linear display with a 3-layer hopper structure reduces space occupancy, compact design for convenient and flexible integration
l Modular design enhances part interchangeability and reduces maintenance costs
l Belt-type material collection method for easier and faster material gathering
l Anti-stick scraper hopper for sticky materials
l Optional drying and water removal device to prevent damage to electrical components caused by humidity environments
l Stable aluminum shell structure ensures more stable hopper operation
l Single or double door buckets
l Rotating & Vibrating top cone
l Reject system and re-circulate conveyor belt
l Mixing function
l Counting function
l Multi Dump
l Multi-points discharge
l Special timing discharge hopper
l Dimple and/or Stainless steel 316 for product touching parts
l IP 65 construction
l Stainless steel 316 for product touching parts and/or stainless steel 304 central support and bucket driven kits
l Remote control through blue tooth, LAN
l Short drop discharge hopper for fragile product
Advantages
Technical Specification
| Catalogue/178-G-xxxx | T0816BP |
| Number of Hoppers | 8 |
| Number of Hoppers layers | 3 |
| Weighing Range-cycle | 50-500 |
| Bucket Volume-Liter | 1.5 |
| Weighing Speed | Approx.40 cycles/minute |
| Power Supply | 220V, 2P, 50/60HZ |
| Power Consumption | 1000W/10A |
