Product Code: PP178

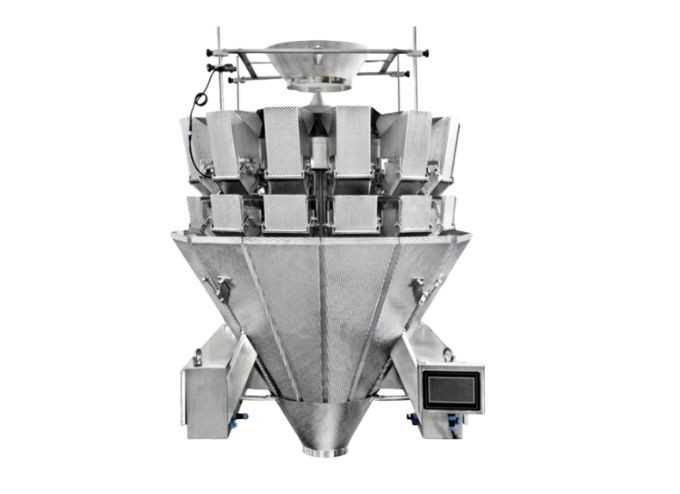

Equipped with inclined linear vibrating plates, 60-degree dimpled anti-stick chutes, a dimpled machine body and high-precision dedicated sensors, it achieves smooth and even feeding for soft and sticky products such as cheese.
Related Video
Suitable for soft and sticky materials‚ such as cheese‚ QQ candy‚ marshmallows‚ preserved fruits‚ candied fruits‚etc.
Features
l Suitable for soft and sticky materials‚ such as cheese‚ QQ candy‚ marshmallows‚ preserved fruits‚ candied fruits‚ etc
l Use high-precision‚ high-standard special sensors
l Factory parameter setting recovery function‚ supporting multi-stage weight calibration
l It can automatically pause when there is a shortage of materials‚ making the weighing more stable
l Store multiple sets of parameter settings to realize various material requirements‚ and help menu to facilitate learning and use
l The amplitude of each line can be adjusted independently during operation to make feeding more uniform
l Multiple languages are available and easy to operate
l The adjustable speed main vibrator increases the versatility of materials
l Down-inclined special line vibrating plate ensures smooth feeding
l The 60-degree included angle small dimple chute is conducive to the falling of materials and effectively controls the sticking phenomenon
l Optional weighing material detection can accurately control the feeding time and material thickness to ensure weighing accuracy
l The cast aluminum thickened overall middle seat enhances the strength of the machine and shortens the weighing stability time
l The body is made of dimple plate to prevent materials from sticking
l The equipment is equipped with a waterproof and moisture-proof electrical box to meet the environmental waterproof and moisture-proof requirements and the body is clean
l Single or double door buckets
l Rotating & Vibrating top cone
l Reject system and re-circulate conveyor belt
l Mixing function
l Counting function
l Multi Dump
l Multi-points discharge
l Special timing discharge hopper
l Dimple and/or Stainless steel 316 for product touching parts
l IP 65 construction
l Stainless steel 316 for product touching parts and/or stainless steel 304 central support and bucket driven kits
l Remote control through blue tooth, LAN
l Short drop discharge hopper for fragile product
Advantages
Technical Specification
| Catalogue/4K-xxxx | 1416 | 1025 | 1016 | 1425 |
| Pro-proportion Bucket | 14 | 10 | 10 | 14 |
| Weigh Bucket | 14 | 10 | 10 | 14 |
| Bucket Open Doors | Single door | Double door | Single door | Double door |
| Weighing Range-gram | 10-1,500 | 10-1,000 | 10-1,000 | 10-1,500 |
| Weighing Accuracy-gram | +/- 0.5-2 | +/- 0.5-2 | +/- 0.5-2 | +/- 0.5-2 |
| Weighing Speed-WPM | 0-120 | 0-60 | 0-60 | 0-100 |
| Bucket Volume-Liter | 1.6 | 2.5 | 1.6 | 2.5 |
| Power Supply | AC 220 50/60Hz | AC 220 50/60Hz | AC 220 50/60Hz | AC 220 50/60Hz |
| Power Consumption | 1.5kw | 1.0kw | 1.0kw | 1.5kw |
