Product Code: PP122

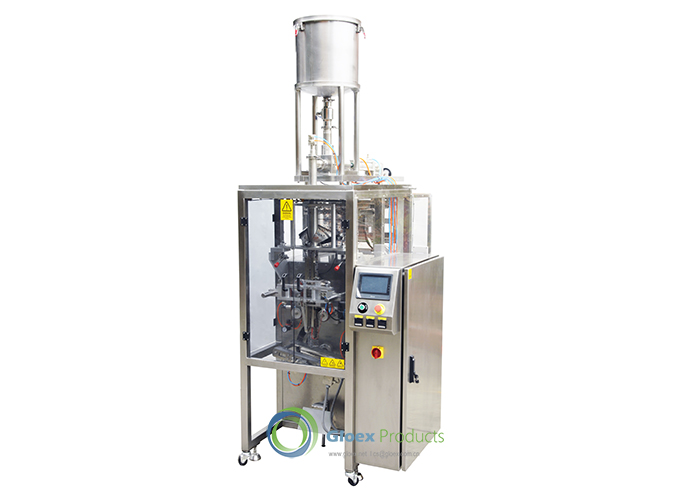

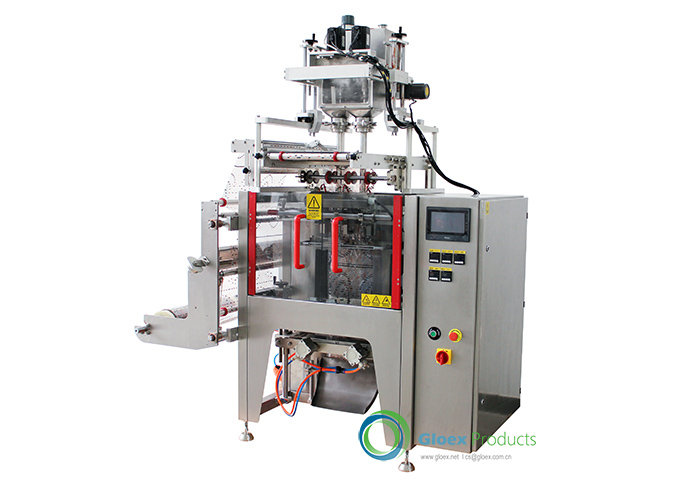

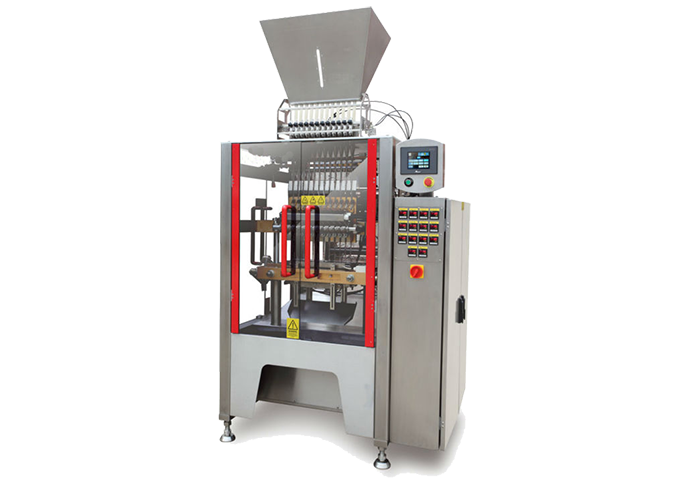

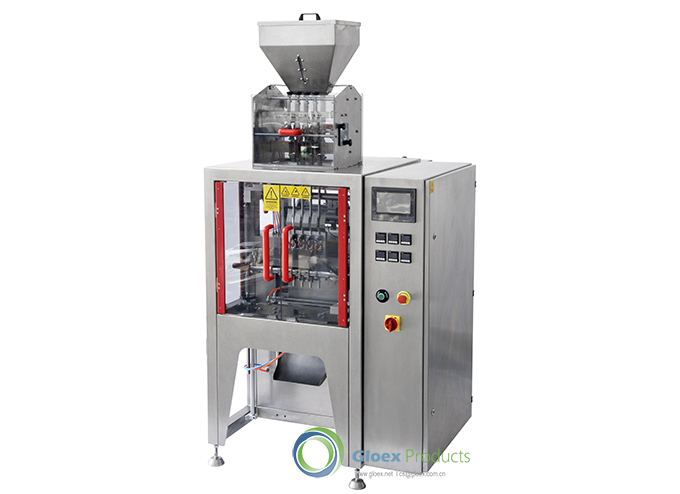

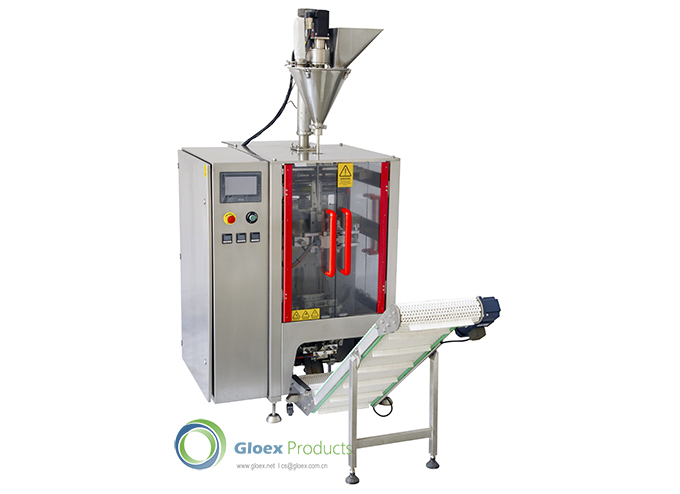

This machine is applicable for dosing powder, granule or liquid and sealing in form of stick, with back sealing style, include the stick forming , product dosing , filling and stick sealing processes , In different patterns of sealing, and different styles of cutting
This machine is applicable for dosing powder, granule or liquid and sealing in form of stick, with back sealing style, include the stick forming , product dosing , filling and stick sealing processes , In different patterns of sealing, and different styles of cutting, the detail application description as following table
Issue | Application Description |
Applicable Sealing Style | Back sealing |
Applicable Products | Configure with different dosing devices, capable to pack with liquid, powder or granule |
Applicable Packaging Material | Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL etc. |

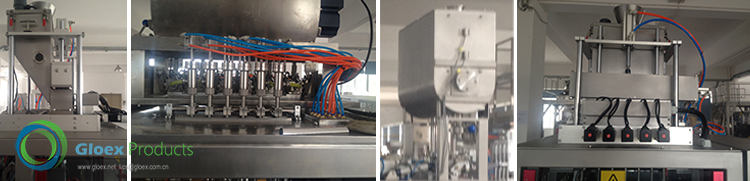

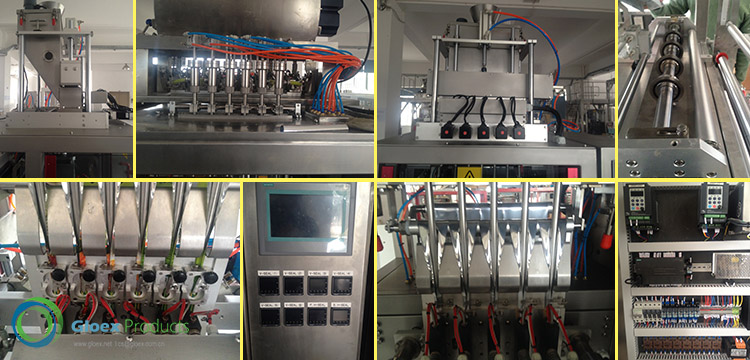

The working processes include: The machine pull laminate packaging film to the film splitting devices, and the film split into specific lanes, then go through the sealing bars to seal the side and one horizontal side, in the meanwhile, the dosing device dose the product into the stick through the open side, then will do the last side sealing and cutting off. Upon the different products, we need to configure specific dosing device. Following are the typical working process photo:
Standard Features
• PLC & HMI Touch Screen Control
• Separate the power between horizontal sealing and cutting off
• Servo motorized film pulling integrated with horizontal sealing device
• Automatic dosing range adjustment
• Intelligent PID temperature controller
• Door open and machine stop interlock
• No packaging film and machine stop interlock
• Stainless steel construction
Optional Features
• Stainless Steel 316 for product touching parts
• Sealing pattern
• Flat Cut-off include standard ,round and R-shaped
• Tear Notch
• Ribbon or inkjet coding
• Chain stick cutting off
• Empty stick rejection
• Granule powder or liquid dosing devices
Catalogue/1W-xxxxx | X+lanes+L |
Stick Size-Length(mm) | 50-140 |
Stick Size-Width(mm) | 10-35 |
Lanes | 2-12 upon client’s customization |
Film Width(mm) | 880-maximum |
Packing Speed(sticks/min) | 15-60 for each lane |
Power Requirement | AC 220 V 50/60 Hz |
Power Consumption(kW) | 2.4-6.5 |
Compress Air Required(Mpa) | 0.6-0.8 |
Compress Air Consumption(L/min) | 2.0-7.0 |
Approximate Weight(kg) | 570-700 |
Dimension(mm) | 1026*967*1352-1120*1023*1380 |
