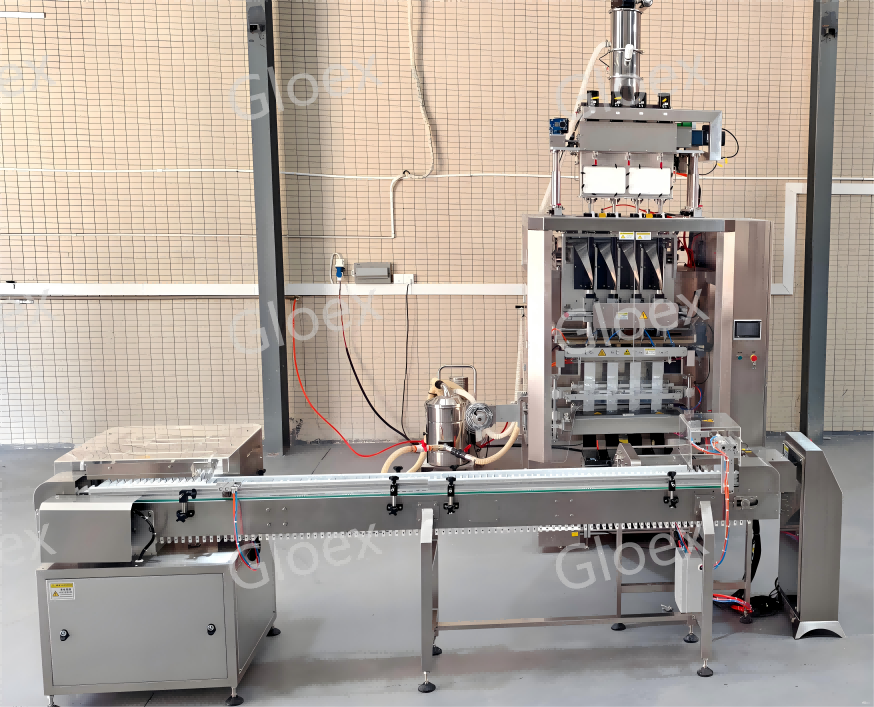

SC3059-4-Lane 3-Side Seal Powder Sachet Packaging&Cartoning System

4-Lane 3-Side Seal Powder Sachet Packaging&Cartoning System

Material Display

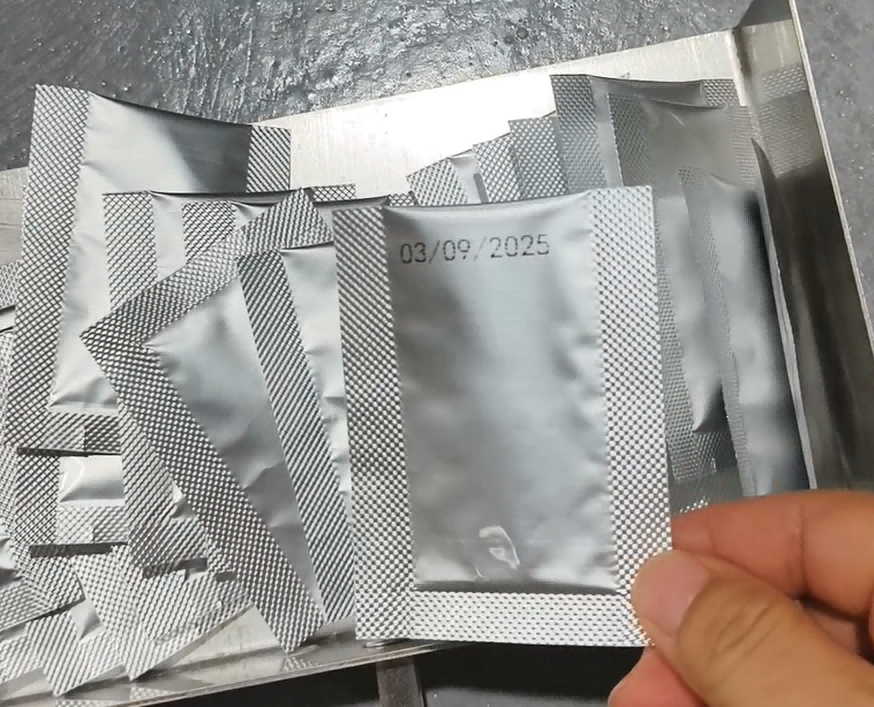

Finished Poducts Display :

Project Information:

1. Project No. : CSC3029

2. Country: Italy

3. Material:Powder

4. Packaging Format: 3-Side Seal Sachet

5. Machine List:Automatic Multi-Lane Powder Stick Form Fill Seal Machine+Sorting, Counting, Weight Checking, Manual Cartoning System




Highliaghts:

1. High-Performance 3-Side Seal Sachet System:

   Specifically engineered for powders, it utilizes servo-driven short auger dosing and PID precise temperature control. This ensures strong seals and an aesthetically pleasing appearance for various sachet sizes (e.g., 60 * 80mm to 80 * 100mm) holding 3-13g of product, achieving high-speed and stable packaging.

2. Automatic Weight Checking and Rejection Device:

   Integrated with high-precision weighing modules, it performs 100% online inspection for all four lanes with an accuracy of ±0.3 grams. It automatically rejects non-conforming products and performs preliminary grouping, effectively ensuring product quality and batch consistency.

3. Efficient Edge-Trimming and Waste Collection Device:

   Equipped with dedicated cutting knives and a waste film winding mechanism. It automatically trims sachet edges (leaving a 1-2mm margin), resulting in smooth, neat seals and an improved appearance, while automatically collecting waste film to maintain a clean workspace.

4. Integrated Dust Collection Unit:

   Features an industrial dust collector with dual filtration (main cloth bag + HEPA filter), achieving over 99.99% efficiency for 0.3-0.5µm dust. This effectively controls powder dust, ensuring a clean production environment and protecting operator health.

5. Ergonomic Semi-Automatic Cartoning Station:

   The system's end is equipped with 4 stainless steel semi-finished carton holders (positioning containers) that accurately receive grouped products. This facilitates quick and easy manual loading, significantly improving the efficiency and convenience of the manual cartoning process.
