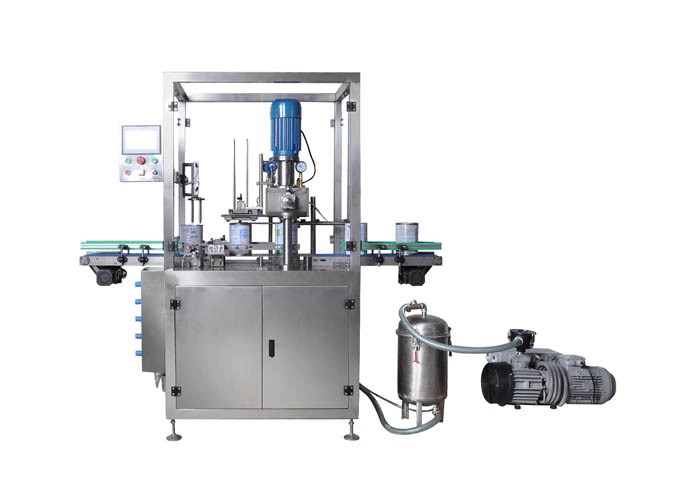

Intermittent Motion Round Shaped Can Vacuum Seamer
  • Intermittent Motion Round Shaped Can Vacuum Seamer
  • Intermittent Motion Round Shaped Can Vacuum Seamer
  • Intermittent Motion Round Shaped Can Vacuum Seamer
Intermittent Motion Round Shaped Can Vacuum SeamerIntermittent Motion Round Shaped Can Vacuum SeamerIntermittent Motion Round Shaped Can Vacuum Seamer

Intermittent Motion Round Shaped Can Vacuum Seamer


    Product Code : PP169


    This machine is applicable for round can seaming with vacuuming and Nitrogen flushing /gassing processes.


Inquire Now
Product Introduction


Application


This machine is applicable for round can seaming with vacuuming and Nitrogen flushing /gassing processes, the detail description as following table:

Intermittent Motion Round Shaped Can Vacuum Seamer

IssueApplication Description
Applicable Containers  Applicable Lids Round shape cans, which are made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic etc.  Mental lids, such as tinplate, Aluminum
Applicable Products Various powdered materials, such as milk powder, protein powder, coffee powder, health care products Powder requested vacuum and Nitrogen filling, to achieve the lowest Oxygen residual in containers



Working Process


The working processes include: Feed the container by a linear clam, and the machine pre-cap the lid on the can to be seamed. The can moves to the vacuuming and nitrogen flushing chamber, after vacuuming, the nitrogen or other gas will be injected to the chamber to normal pressure, and seaming mechanism will seal the can automatically.


Intermittent Motion Round Shaped Can Vacuum Seamer

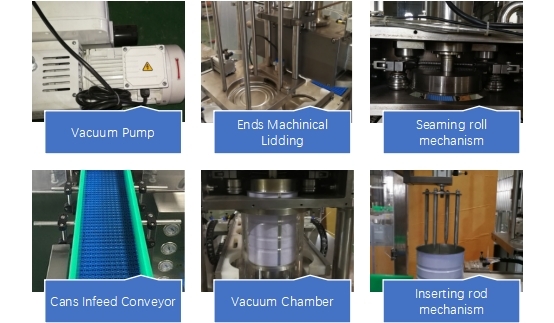

Features



Standard Features


1) Apply for Round Shaped Tinplate can, Aluminum Can or PET can seam with vacuuming and nitrogen filling processes

2) Stainless Steel 304 for structure, shield and other key components

3) Apply silicone gel for vacuum sealing system

4) Configure with PLC and touch screen control system, parameters can be set up conveniently

5) Configured vacuum pump and vacuum chamber to form a separate vacuum environment and achieve high vacuum result

6) Configured cans infeed and outfeed conveyor belt

7) Double seaming rolls for reliable seaming performance

8) Inserting rod mechanism to break the Arch bridge which formed by powder before ends lidding

9) Configure with can feeding and lidding interlock, no can feeding no lidding

10) Equipped with high precise sensor for vacuum detecting


Intermittent Motion Round Shaped Can Vacuum Seamer


Technical Specification


Catalogue 2W-xxxxxFGZK-BFGZK-A
Type **1)Container Non-RotatingContainer Non-Rotating
Number of Seaming Head11
Lid Pre-cappingManualAutomatic
Seaming wayAutomaticAutomatic
Speed AdjustableNon-AdjustableNon-Adjustable
Container Moving MethodLinear conveyor with camLinear conveyor with cam
Height of Container80-190mm80-190mm
Diameter of Caps70-127 mm70-127 mm
Seaming Speed5-6 cans/ Min  6-7 cans/ Min
Power Requirement(V/Hz)AC 380 V 3P+N+E 50HZAC 380 V 3P+N+E 50HZ
Electricity Consumption(kW)3.34.0



Compressing Air Requirement60L/min-0.6-0.8MPa80L/min-0.6-0.8MPa
Nitrogen/Gas Requirement50L/min-0.4-0.6Mpa50L/min-0.4-0.6Mpa
Approximate Weight(Net)(kg)350kg500kg
Dimension(mm)800(L)×700(W)×1850(H)2000(L)×800(W)×1850(H)



Advantages


Intermittent Motion Round Shaped Can Vacuum Seamer



Related Links


Following is the related video link on our Youtube site


https://www.youtube.com/playlist?list=PLoI3FEOZ6j4NvfXIwvNEYBhSL5ujbyDzi


More information, please leave us message or email us at cs@gloex.com.cn
