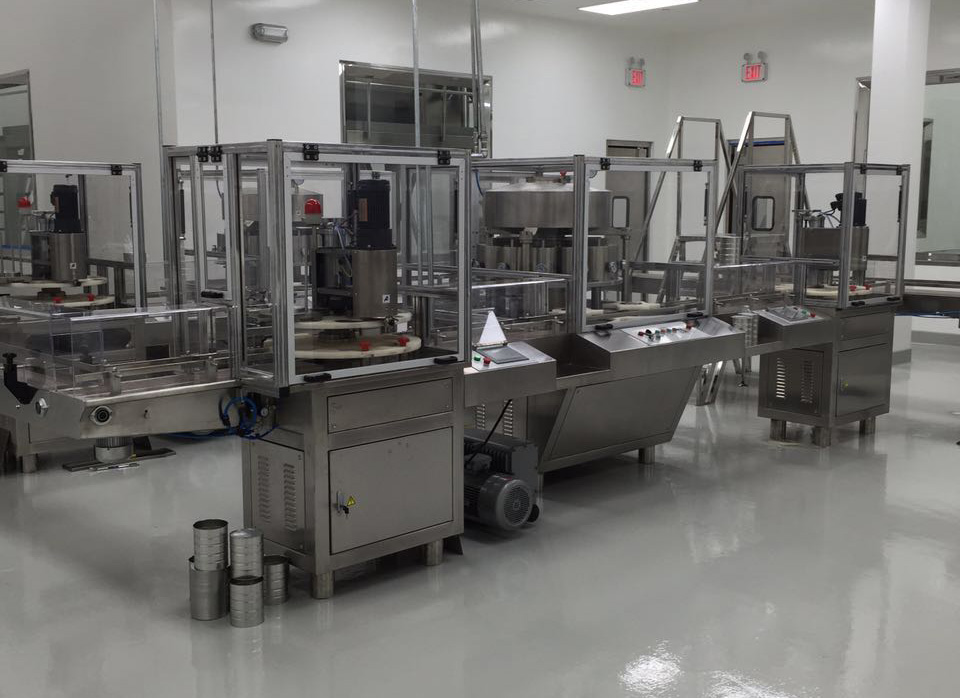

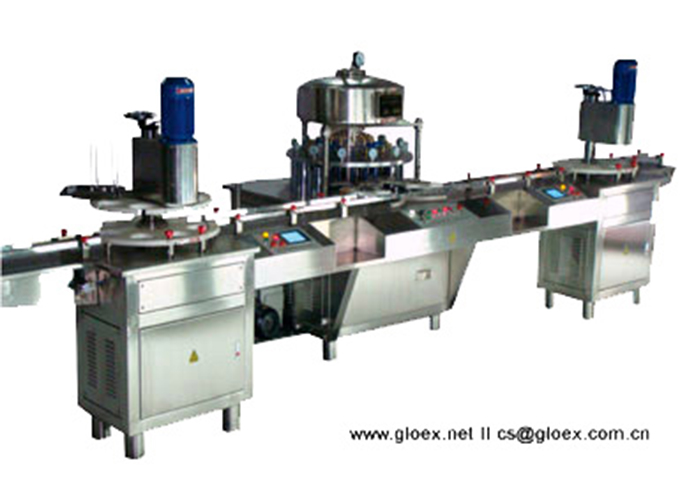

Continuous Motion Round Shaped Can Vacuum Seamer
  • Continuous Motion Round Shaped Can Vacuum Seamer
  • Continuous Motion Round Shaped Can Vacuum Seamer
Continuous Motion Round Shaped Can Vacuum SeamerContinuous Motion Round Shaped Can Vacuum Seamer

Continuous Motion Round Shaped Can Vacuum Seamer


    Product Code: PP222


    This machine is applicable for seaming the round can with vacuuming and nitrogen flushing /gassing processes, continuous motion model , high speed seaming , less residual oxygen ,apply for the cans which are made of aluminum, tinplate , PET, or paper and the other kinds of can

Inquire Now
Product Introduction


Application


This machine is applicable for seaming the round can with vacuuming and nitrogen flushing /gassing processes, continuous motion model , high speed seaming , apply for the cans which are made of aluminum, tinplate , PET, or paper and the other kinds of can, the detail application description as following table:


IssueApplication Description
Applicable ContainersRound shape can, which are made of hard materials, like aluminum, tinplate and the other kinds of metal, or cylinder cardboard tubes and hard plastic materials.
Applicable Lidslids which are made of aluminum, tinplate and the other kinds of metal, etc.





Working Processes


The working processes include:



Pre-seaming Process: Feed the filled can by conveyor and rotary plate, and the machine pre-cap the lid on the can to be seamed. Then the can moves for pre-seaming


Continuous Vacuuming and Gassing: after pre-seaming, the can moves to the vacuuming and nitrogen flushing chambers continuously, after vacuuming, nitrogen or other gas will be injected to the chamber to normal pressure,


Final Seaming Process: after these 2 steps move to the station for final seaming and conveying out



Features


Standard Features



1)         Apply for Round Shaped Tinplate can , Aluminum Can or PET can seaming with vacuuming and nitrogen filling/gassing processes

2)         Configure with Stainless Steel 304 for structure, and other key components

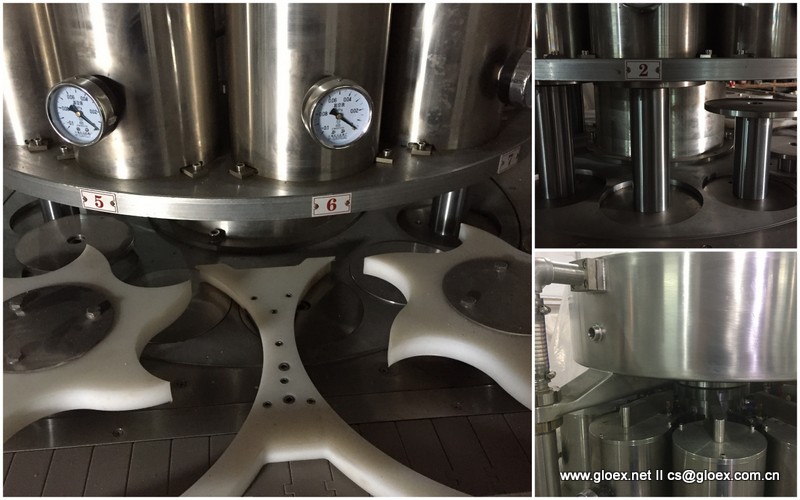

3)         12 vacuuming and gassing chambers, continuous vacuuming and gassing design enable high speed seaming

4)         All processes include Can feeding, lidding, vacuuming, nitrogen filling and can seaming processes can be done automatically

5)         Configure with can feeding and lidding interlock, no can feeding no lidding

6)         Configure with PLC and touch screen control system, parameters can be set up conveniently.

Equipped with high precise sensor for vacuum detecting



Optional Features



1)         Protection Shield

2)         Out of range can seaming


Advantages


ž   Continuous vacuuming and gassing design

ž   Pre-seaming process design , enable less leakage of powder during vacuuming

ž   Lower residual oxygen result, equal or less than 3%




Technical Specification


Catalogue 2T-xxxxxCN540
Type Non-Rotating
AutomationAutomatic
Number of Vacuuming / gassing chamber12
Pre-seaming Machine1
Seaming Machine1
Control MethodPLC & Touch Screen HMI
Speed AdjustableAdjustable
Container Moving MethodConveyor and Rotary Plate
Height of Container100-200mm
Diameter of Caps90-127 mm
Seaming Speed30 -35 cans/ Min
Residual Oxygen<=3%
Power Requirement(V/Hz)AC 380 V 50/60HZ
Electricity Consumption(kW)5.0
Lid Pre-cappingAutomatic
Compressing Air Requirement60L/min-0.6-0.8MPa
Nitrogen/Gas Requirement350L/min-0.4-0.6Mpa
Approximate Weight(Net)(kg)2000kg
Dimension(mm)6000(L)×1690(W)×1905(H)
