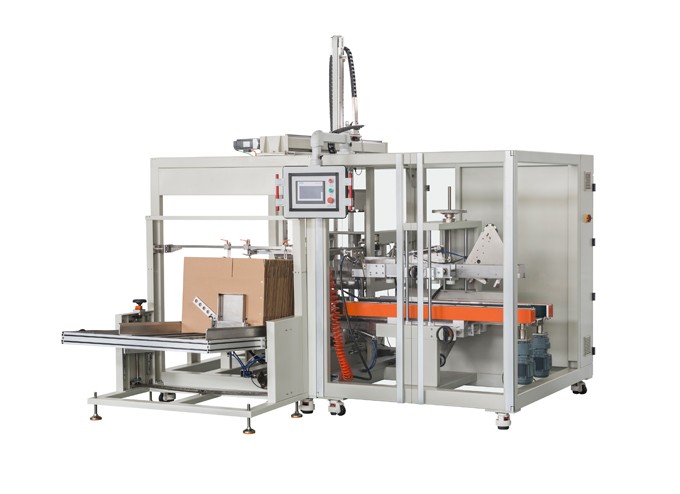

Top Load Case Packer-Servo Pick and Place
  • Top Load Case Packer-Servo Pick and Place
Top Load Case Packer-Servo Pick and Place

Top Load Case Packer-Servo Pick and Place


    Product Code: PP316A



    It is applicable for case erect, top loading products into corrugated cases, and sealing. Applicable for beer, beverage, food, chemical, pharmaceutical industries of the packing process, etc.



    It is also fit into packaging lines for precise top-loading of cartons, cans, cups, bottles, bags and other products in single or multiple layers.


Inquire Now
Product Introduction


Application


It is applicable for case erect, top loading products into corrugated cases, and sealing. Applicable for beer, beverage, food, chemical, pharmaceutical industries of the packing process, etc.



It is also fit into packaging lines for precise top-loading of cartons, cans, cups, bottles, bags and other products in single or multiple layers.


Top Load Case Packer-Servo Pick and Place

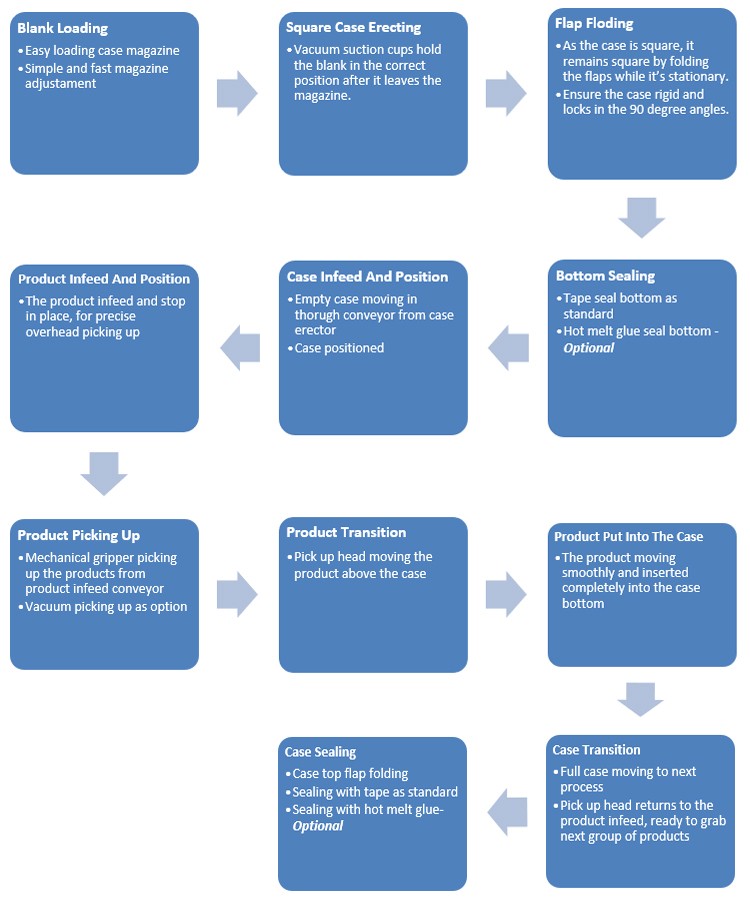

Working Processes


Top Load Case Packer-Servo Pick and Place




Features


Standard Features


1) Painted heavy duty welded tubular steel construction design

2) 2-axis servo pick and place mechanism

3) Vacuum or mechanical product pickup

4) Automatic collation system before pick and place into the case

5) Automatic carton inserts and dividers pick and place

6) Quick, simple and tool less changeover

7) Easy for maintenance

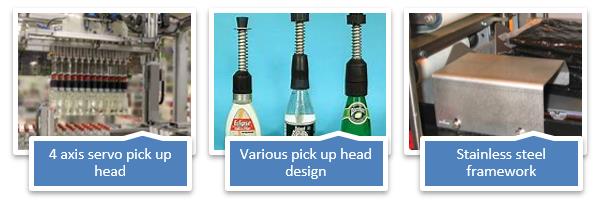

Optional Features



1) Integrated with other machines like case erector, case sealer of production line

2) Up to 4-axis servo pick and place mechanism

3) Heavy duty per pick payload

4) Customized products collation systems for different products

5) Customized packing patterns

6) Stainless steel framework

Spare part kits


Top Load Case Packer-Servo Pick and Place

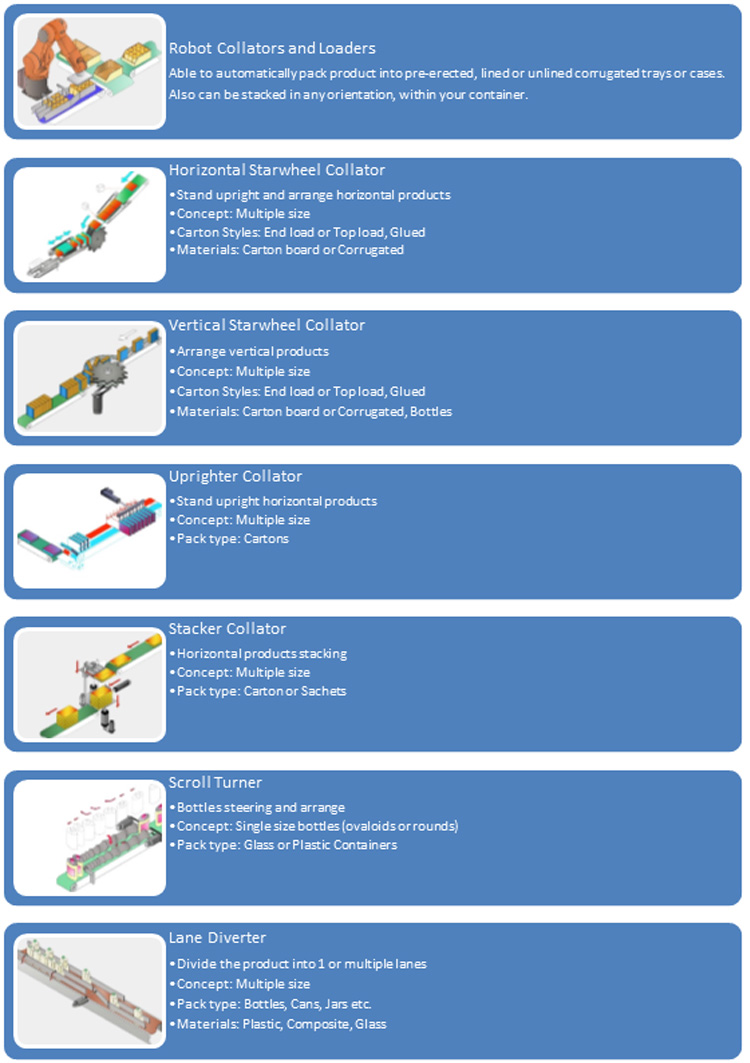

Various Collation System:

Load Case Top Packer-Servo Pick and Place

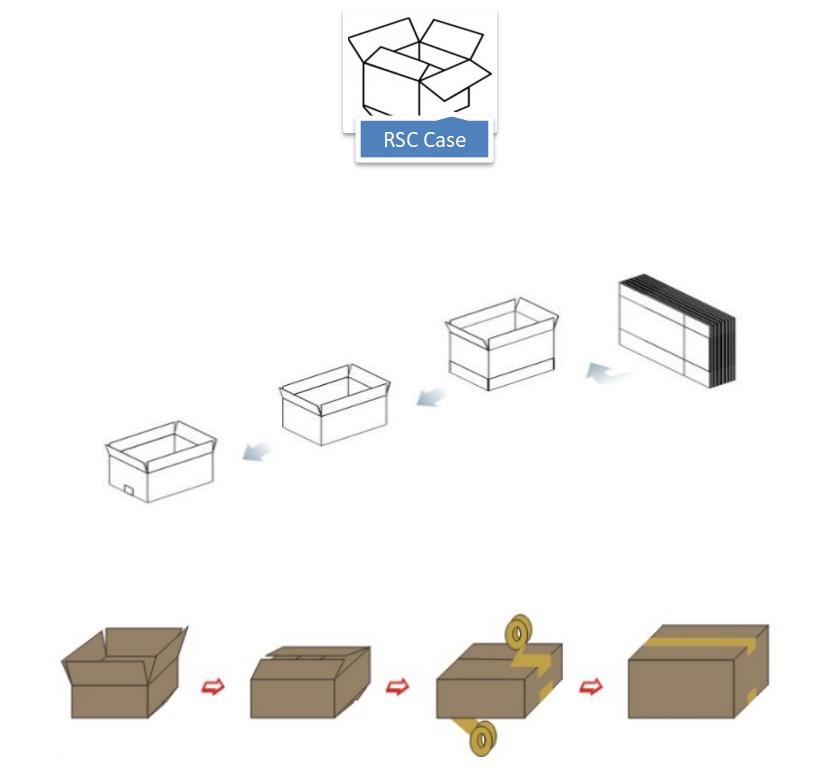

Various Packing Patterns:



A variety of packing patterns that can be customized, depending on user's needs:


Load Case Top Packer-Servo Pick and Place

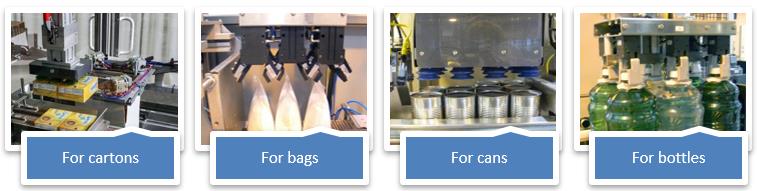

Various Pick up Heads:


Load Case Top Packer-Servo Pick and Place

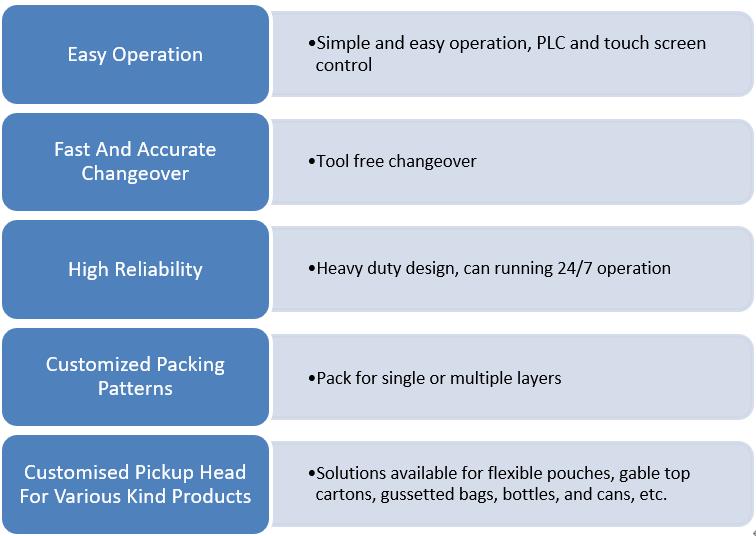

Advantages


Practically, the advantages as indicated as following:


Load Case Top Packer-Servo Pick and Place



Technical Specification


Type BTK-500
MotionIntermittent
Casing Speed≥2 cases/minute Pick and place 10 times /min (related to palletizing layers)
Case Size Range-L*W*H(250-500) ×(150-400) × (150-350) mm
Tape Head60 mm as the standard, 48,76 mm as the option
Power Supply380VAC 3P+N+E 50Hz 3KW
Air Supply0.6Mpa
Dimension-L*W*H3500×3000×2850mm
Weight1.2t



 If need more support, please contact us at: cs@gloex.com.cn
