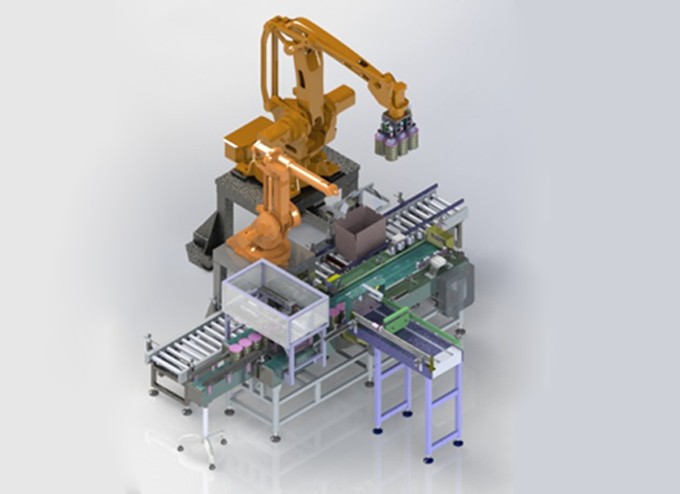

Top Load Case Packer-Robot Pick and Place
  • Top Load Case Packer-Robot Pick and Place
Top Load Case Packer-Robot Pick and Place

Top Load Case Packer-Robot Pick and Place


    Product Code: PP316B


    It is applied for top loading products into corrugated cases, tray, crates. Applicable for beverage, food, chemical, pharmaceutical industries of the packing process, etc.



    Vertical joint robot case packing, suitable for heavy product packing, good flexibility, can also be filled in multiple case packing as option.



    It is also fit into packaging lines for precise top-loading of cartons, cans, cups, bottles, bags and other products in single or multiple layers.


Inquire Now
Product Introduction


Application


It is applied for top loading products into corrugated cases, tray, crates. Applicable for beverage, food, chemical, pharmaceutical industries of the packing process, etc.



Vertical joint robot case packing, suitable for heavy product packing, good flexibility, can also be filled in multiple case packing as option.



It is also fit into packaging lines for precise top-loading of cartons, cans, cups, bottles, bags and other products in single or multiple layers.


Load Case Top Packer-Servo Pick and Place


Working Processes


Top Load Case Packer-Robot Pick and Place


Product Pick and Place:

Top Load Case Packer-Robot Pick and Place


Various Collation System:

Load Case Top Packer-Servo Pick and Place


Various Packing Patterns:


A variety of packing patterns that can be customized, depending on user's needs:


Load Case Top Packer-Servo Pick and Place



Various Pick Up Heads:

Top Load Case Packer-Robot Pick and Place

Note, the pick-up heads can be customized, depending on the product and collation form.


Features


Standard Features



1) Painted heavy duty welded tubular steel construction design

2) Robot pick and place mechanism

3) Customized product pickup gripper base on different products

4) Quick, simple and tool less changeover

5) Easy for maintenance



Optional Features



1) Vision-based robot collation for un-collation product

2) Integrated with other machines like case erector, case sealer of production line

3) Parallel/Delta, Scara or Articulated robot as option. Up to 6/7-axis robot pick and place

4) Heavy duty per pick payload

5) Customized products collation systems for different products

6) Customized packing patterns

7) Stainless steel framework

8) Spare part kits



Top Load Case Packer-Robot Pick and Place


Advantages


Practically, the advantages as indicated as following:


Top Load Case Packer-Robot Pick and Place


Difference between mechanical gripper can industrial robots:

Pickup Head Motion SpaceMotion TrajectorySpeedApplicationCost
Robot

Sphere, Hemisphere or

Cylinder

Arc or straight

motion

Relatively fast

Pre-collation or un-collation lay flat, shingled,

or even nested product

Relatively high
Servo

Right-angle coordinate

system

Segmented linear

motion

Relatively slow

Pre-collation productCost-effective


Options of Industrial Robots:


Robot TypeAxisWorking areaMotion TrajectoryTechnical support

Parallel/Delta robot

Top Load Case Packer-Robot Pick and Place

4

Hemispheric


Top Load Case Packer-Robot Pick and Place

Non-repeatVision-based

Scara robot

Top Load Case Packer-Robot Pick and Place

4

Cylinder

Top Load Case Packer-Robot Pick and Place

RepeatSoftware design

Articulated robot

Top Load Case Packer-Robot Pick and Place

6

Sphere

Top Load Case Packer-Robot Pick and Place

RepeatSoftware design



Advantages and applications of different industrial robots:


Robot typeAdvantagesApplications
Parallel/Delta robot

1. Very high speed

2. High operational accuracy

1. Food industry

2. Pharmaceutical industry

Scara robot

1. High speed

2. Excellent repeatability

3. Large workspace


1. Packaging

2. Palletizing

3. Machine loading

Articulated robot

1. High speed

2. Large work envelope for least floor space

3. Easier to align to multiple planes

1. Food packaging

2. Material handling




Technical Specification


Robot typePayload (kg)Reach(m)Pos. rep. (mm)AxesProtection
Parallel robot1/3/6/81.13/1.60 1.13 1.60 1.130.03 - 0.094

Std:IP54/67/69K

Option: Clean Room, WashDown, Stainless

Scara robot1-60.35-0.650.010.0154

Std: IP20, IP30.

Option: Clean Room ISO 5, IP54

Articulated robot3-8000.475-4.20.01-0.34-7Up to IP67



Related Accessories


Load Case Top Packer-Servo Pick and Place

Load Case Top Packer-Servo Pick and Place

Load Case Top Packer-Servo Pick and Place

Load Case Top Packer-Servo Pick and Place


If need more support, please contact us at: cs@gloex.com.cn
