Seed Counting Machine Series
  • Seed Counting Machine Series
  • Seed Counting Machine Series
  • Seed Counting Machine Series
Seed Counting Machine SeriesSeed Counting Machine SeriesSeed Counting Machine Series

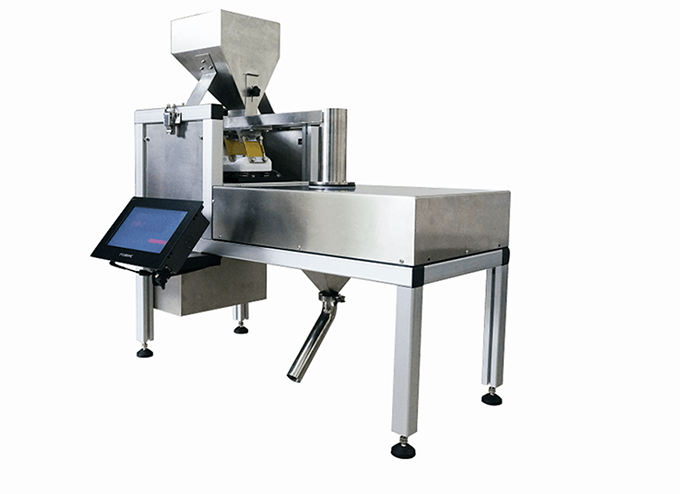

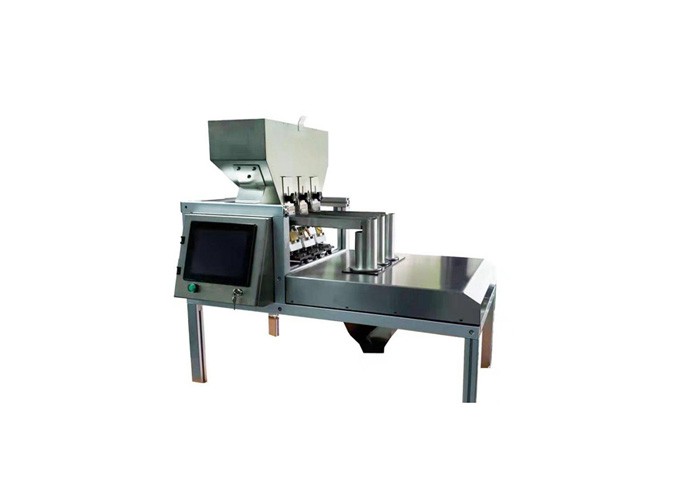

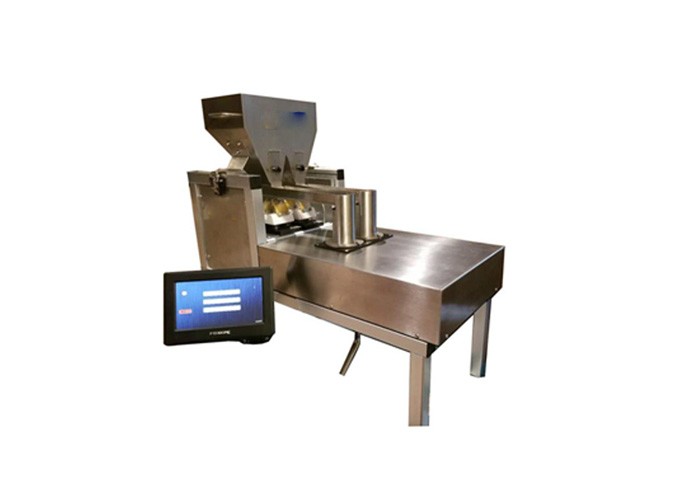

Seed Counting Machine Series


    Product Code: PP241


    This machine is applicable for seed counting, by utilize vision counting technology, counting in high accuracy, fast speed, like tomato, cucumber, melon, watermelon, eggplant, pepper, sweet pepper or other ornamental plants, vegetable seeds


    This seed counter is also applying for counting of small mechanical parts, as counting machines for diamonds, gems and other precious stones or as counting device for implants such as screws, washers, stents, teeth and so on. The counters are available as precise single channel counters or as fast multichannel counters.


    This counter is specialized for fast counting and dosing of medium to large quantities.



Inquire Now
Product Introduction


Application


This machine is applicable for seed counting, by utilize vision counting technology, counting in high accuracy, fast speed, like tomato, cucumber, melon, watermelon, eggplant, pepper, sweet pepper or other ornamental plants, vegetable seeds


This seed counter is also applying for counting of small mechanical parts, as counting machines for diamonds, gems and other precious stones or as counting device for implants such as screws, washers, stents, teeth and so on. The counters are available as precise single channel counters or as fast multichannel counters.


This counter is specialized for fast counting and dosing of medium to large quantities.


Features


Standard Features


1)Stainless steel 304 or aluminum for frame and surface

2)Vision counting technology and advanced software

3)High accuracy operation

4)High speed counts vast quantities

5)High performance vibrating channel, quick response start/stop

6)Touch screen control with parameter pre-setting and production report feature

7)PAD configure with Android operation system

8)Easy clean for vibrating pan


Optional Features


1)Bagging system

2)Canning system

3)Printing device configuration

4)Foot pedal control

5)Industrial Computer configure with Windows operation system


Advantages

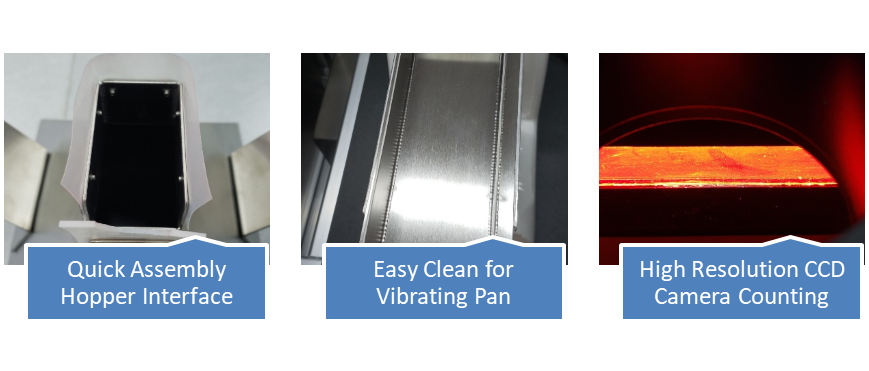

1)High resolution CCD camera counting technology not by photoelectric sensor

2)Easy open for channel and hopper cleaning

Technical Specification


Type 4G-xxx-x80-180-280-3
Counting lanes123
Size of counting object1-30 mm1-30 mm1-30 mm
Hopper Volume10 Liter16 Liter20 Liter
Speed1)App 6,000 pieces/min @ tomato seedsApp 8,000 pieces/min @ tomato seedsApp 10,000 pieces/min @ tomato seeds
Accuracy2)App. 99.7%App. 99.7%App. 99.7%
Power Supply220VAC 2P+E 50HZ220VAC 2P+E 50HZ220VAC 2P+E 50HZ
Capacity0.5Kw0.7kw0.9kw
DimensionL940*W400*H500mmL960*W400*H500mmL1050*W500*H500mm
Weight70kg85kg95kg



1) The counting speed is determined by the number of channels and the size and shape of the products

2) The counting accuracy subject to the type, size of products and counting speed


Reference speed of typical seeds


Type 4G-xxx-x80-180-280-3
Cabbage-1000 pieces6ppm9ppm12ppm
Tomato-1000 pieces6ppm8ppm10ppm
Sweet Pepper-1000 pieces5ppm7ppm9ppm
Watermelon-200 pieces5ppm8ppm11ppm
Pumpkin-200 pieces4ppm6ppm8ppm

PPM means packaging per minute



Related Accessories


Configure with different machines, capable to form automatic packaging lines


Bagging system-Premade Pouch and Canning system


Seed Counting Machine Series



Related Links


Following is the video playlist on our Youtube site


Seed Counting Machine Series


For more information or technical support, please contact us at : cs@gloex.com.cn
