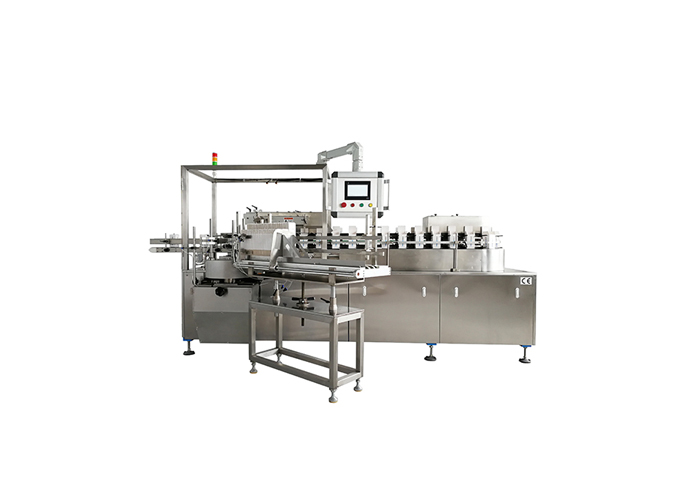

Automatic Intermittent Vertical Top Loading Cartoner Series
  • Automatic Intermittent Vertical Top Loading Cartoner Series
Automatic Intermittent Vertical Top Loading Cartoner Series

Automatic Intermittent Vertical Top Loading Cartoner Series


    Product Code : PP265


    It is applicable for the type of erect pre-glued, flat cartons erecting, opening, product loading and finally tucked or sealed with glue.


    CPractically, the advantages as indicated as following:
    onfigure with range of collating, grouping, loading device and upstream process line, like  Vertical Baggers, Horizontal Wrappersetc. to create a completely automated and effective packaging system

Inquire Now
Product Introduction


Application


It is applicable for the type of erect pre-glued, flat cartons erecting, opening, product loading and finally tucked or sealed with glue.


Configure with range of collating, grouping, loading device and upstream process line, like  Vertical Baggers, Horizontal Wrappersetc. to create a completely automated and effective packaging system.

Following are the reference:

Intermittent Motion Horizontal Cartoner Series





Working Processes


A flat, pre-glued end load style carton is pulled via vacuum from the carton supply magazine. The bottom of the carton is closed (tuck or glue methods available) and the carton is then presented (vertically) to the product loading area. Following the loading of the product, the machine cycle is initiated and the top of the carton is closed (tuck or glue methods available) and the completed package is discharged from the machine


Intermittent Motion Horizontal Cartoner Series


Features


Standard Features



1) Stainless steel 304 construction for main parts

2) Vertical top loading of product

3) Easy access to carton magazine

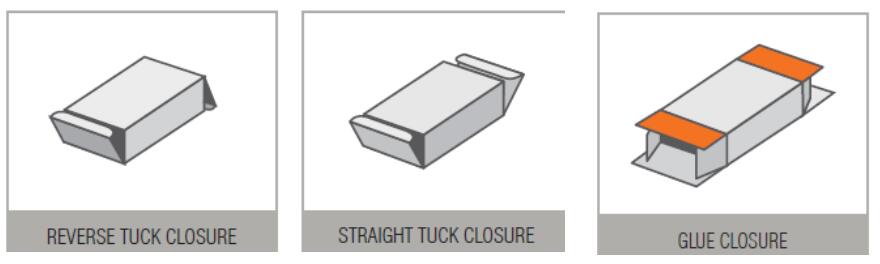

4) Tuck closure station

5) Easy and fast changeover

6) PLC and Touch Screen control panel, for operator interface and machine management

7) Cross control of the presence of product-carton-leaflet.

8) Correct carton opening checking device.

9) No carton machine stop interlock

10) No product carton rejection interlock

11) Mechanical overload machine stop interlock

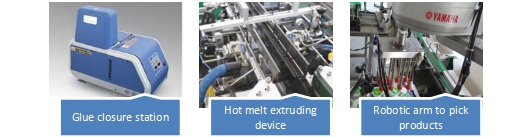

Optional Features



1) Glue closure station

2) Hot melt extruding device

3) Pre-folded leaflet or leaflet folding from flat sheet/reel

4) Coding systems like embossing, ink-jet, laser etc

5)Robotic arm to pick products to guarantee high speed and high precision.

Automatic Intermittent Vertical Top Loading Cartoner Series

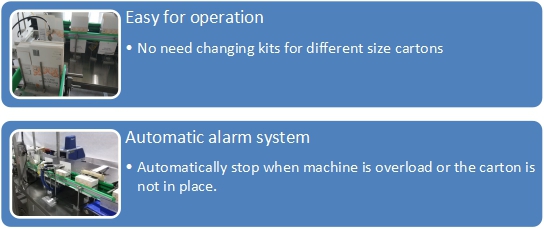

Advantages


Practically, the advantages as indicated as following:

Automatic Intermittent Vertical Top Loading Cartoner Series


Technical Specification


Type 4M-xxxxSKG30
MotionIntermittent
Speed10-50 cartons/minute
Carton Size Range-L*W*H(120-310)×(60-160)×(60-160)mm
Leaflet Size Range-L*W(120-260)×(100-190)mm
Power Supply3 Phase380V 50/60Hz2kw
Air Supply0.6~0.8Mpa, 0.2(m3/h)
Dimension-L*W*H3800×800×1900mm
Weight800kg

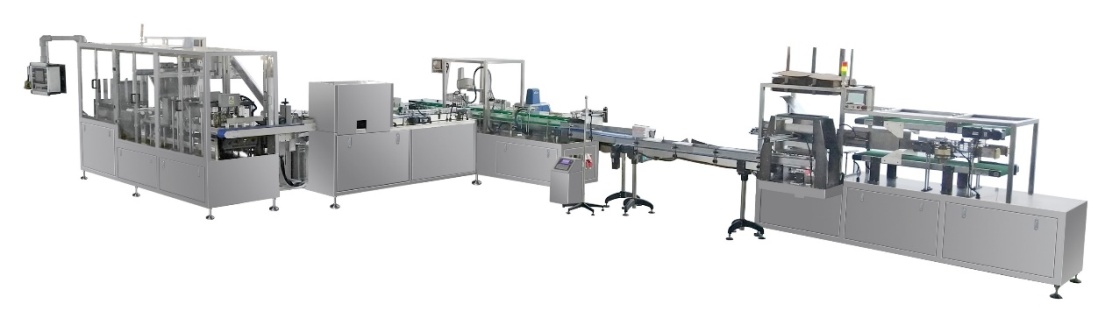

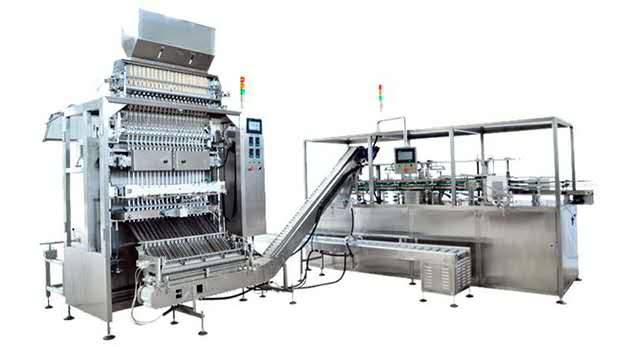

Application integrated with other machines in production line:


Automatic Intermittent Vertical Top Loading Cartoner Series


Automatic Intermittent Vertical Top Loading Cartoner Series
