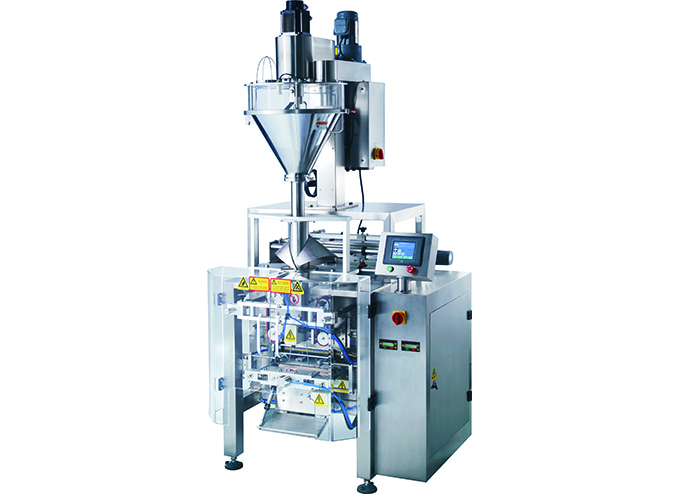

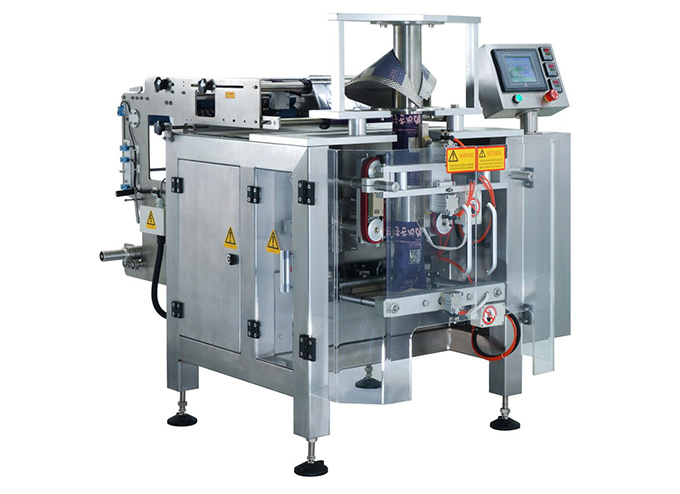

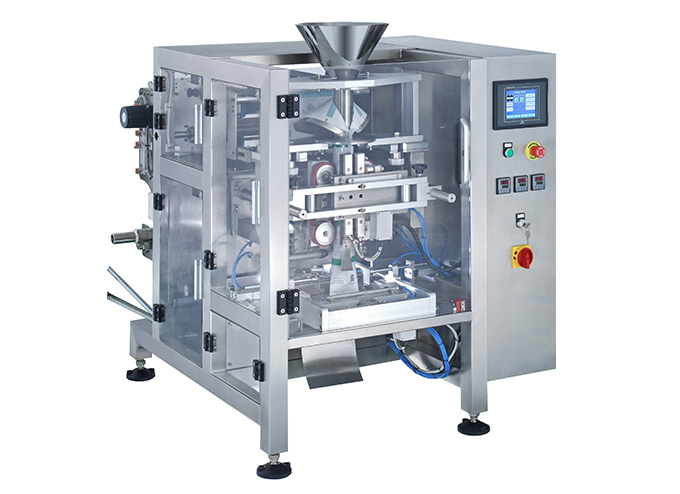

Compact Type Pouch Vertical Form Fill Seal Machine


    Product Code:PP123


    This machine is applicable for packing powder, granule, liquid or other irregular solidity in form of pillow pouch or gusset pouch, with different patterns of sealing, and different styles of cutting, which include processes of dosing, film-pulling, filling, pouch-making, sealing and cutting off

Inquire Now
Product Introduction


Application


This machine is applicable for packing powder, granule, liquid or other irregular solidity in form of pillow pouch or gusset pouch, with different patterns of sealing, and different styles of cutting, which include processes of dosing, film-pulling, filling, pouch-making, sealing and cutting off, the detail application description as following table:


IssueApplication Description
Applicable Pouches

One of the following scenarios can be selected for one machine:



1) Pillow / Flat Pouch

2) Side Gusset Pouch

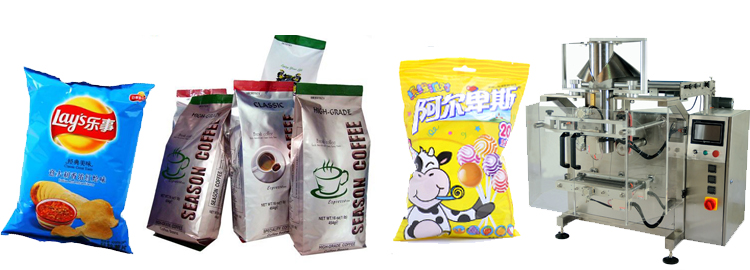

Applicable ProductsConfigure with different type of dosing devices, apply for Powder, Granule, Liquid or other irregular solidity such as coffee bean or powder, juice, candy, popped food, roasted seeds or nuts, etc.
Applicable Packaging MaterialLaminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL etc.



Working Process

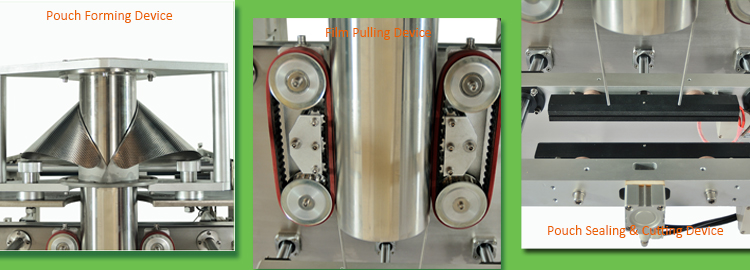

The working processes include: The machine pull laminate packaging film to the pouch forming devices, and go through the vertical sealing plate, in the meanwhile, the dosing device dose the product into the pouch, then will do the horizontal sealing and cutting off



Features


Standard Features


     Standard back sealing flat pouch form fill seal

     Stainless steel 304 construction

     PLC & HMI Control

     Less tools pouch size changeover

     PID temperature controlling

     Film pre-pulling

     Servo motorized film pulling

     Pneumatic horizontal sealing and pouch cutting off

     Door open machine stop interlock

     Small machine footprint


Optional Features



ž   Stainless steel 316 product touching parts construction

ž   Chain pouch cutting off

ž   PE film impulse sealing

ž   Euro slot or round hang hole punch

ž   Pouch inflating or deflating, gas flush

ž   Servo motorized horizontal sealing and cutting off

ž   Product settler

ž   Tear notch

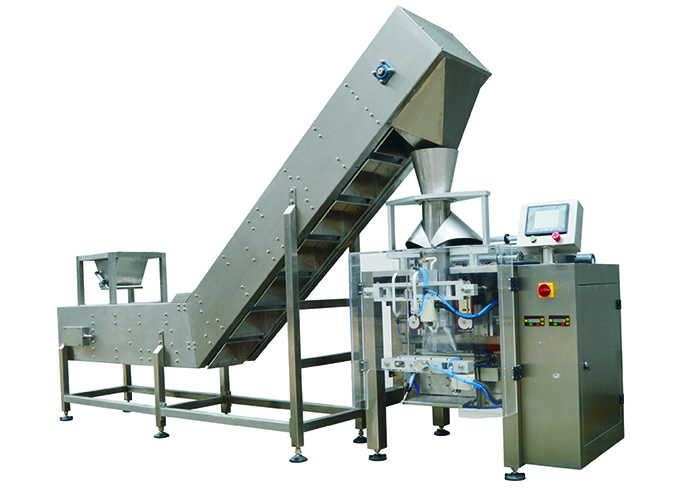

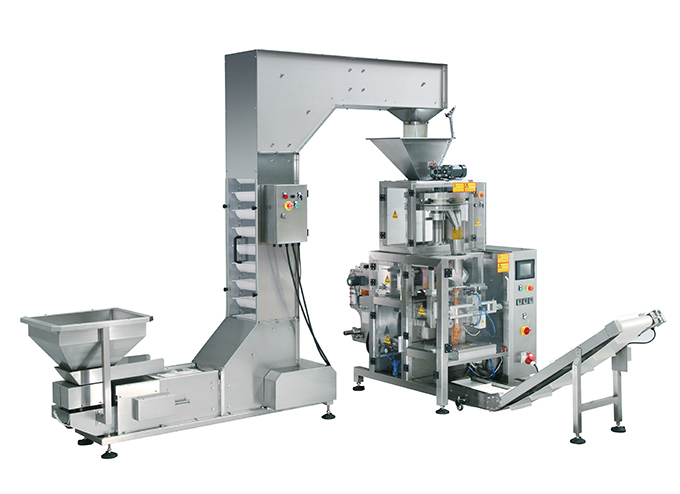

ž   In-feed and take-away conveyors


Advantages


Practically, compared with traditional vertical packaging machine, this mini type machine, with its advantage as following



a)         Smaller size , flexible for space adaption

b)         Easy for material Loading

c)         Wider range of pouch width, up to 800mm width of packaging film



Technical Specification


Catalogue/1T-xxxxxATV-200SATV-300SATV-400S
Max Film Width(mm)400620800
Max Pouch Size-Length(mm)230300400
Max Pouch Size-Width(mm)180300400
Max Packing Speed (Pouches/min)606050
Power RequirementAC 220V 1 phaseAC 220V 1 phaseAC 220V 1 phase
Power Consumption(kW)3.03.54.0
Film Pulling Method**1)Servo MotorizedServo MotorizedServo Motorized
Horizontal Sealing MethodPneumaticPneumaticPneumatic
Compress Air Requirement-Mpa0.60.60.6
Compress Air Consumption- m3/min0.50.60.8
Approximate Net Weight(kg)450550980
Packed Dimension(mm)1560*1100*13601590*1290*14851748*1648*2204



Related Links


Following is the related video links on our Youtube site


Compact type vertical form fill seal machine
