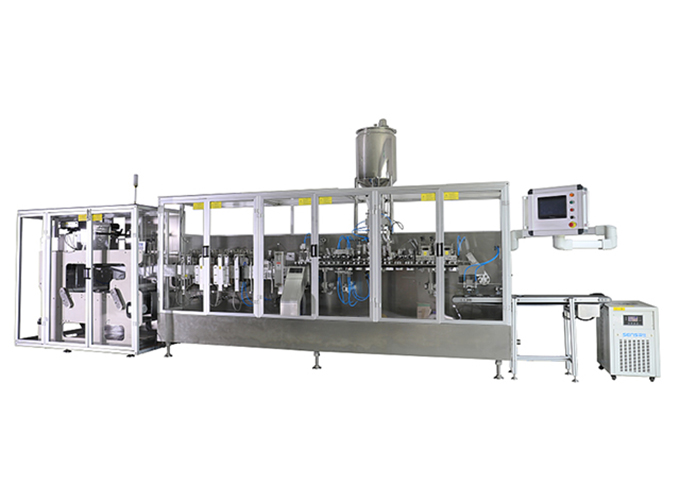

Horizontal Irregular Shaped Pouch Form Fill Seal Machine Series

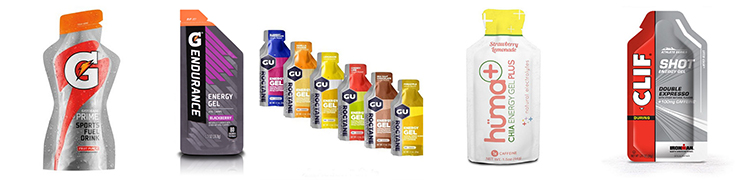

This machine is applicable for packing powder, granule, liquid in form of irregular shaped flat or stand up pouch, with different patterns of sealing, include processes of irregular shaped pouch forming, product dosing, filling and pouch sealing.

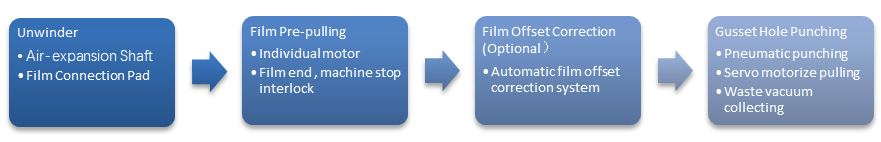

Film Unwinding Process

Note: the gusset hole punching process applies for stand-up pouch

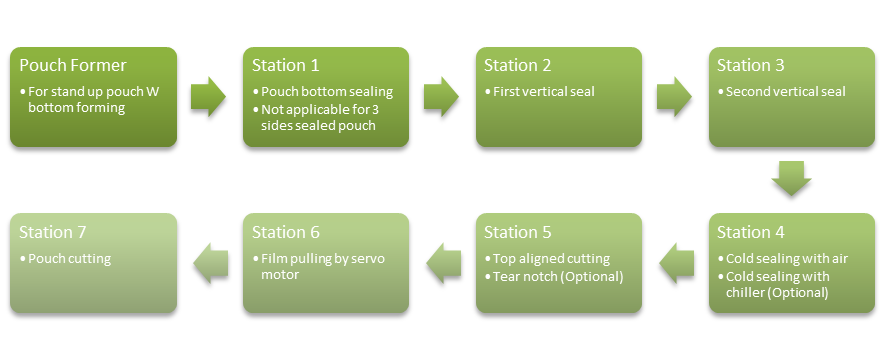

Pouch Forming Process

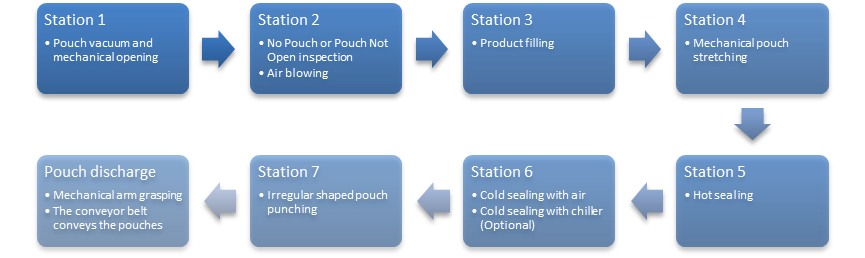

Pouch Filling Sealing Process

Note:

1)The product filling process can be 2 stations according to project requirement

2)The irregular shaped pouch punching can be configured in forming process according to project requirement

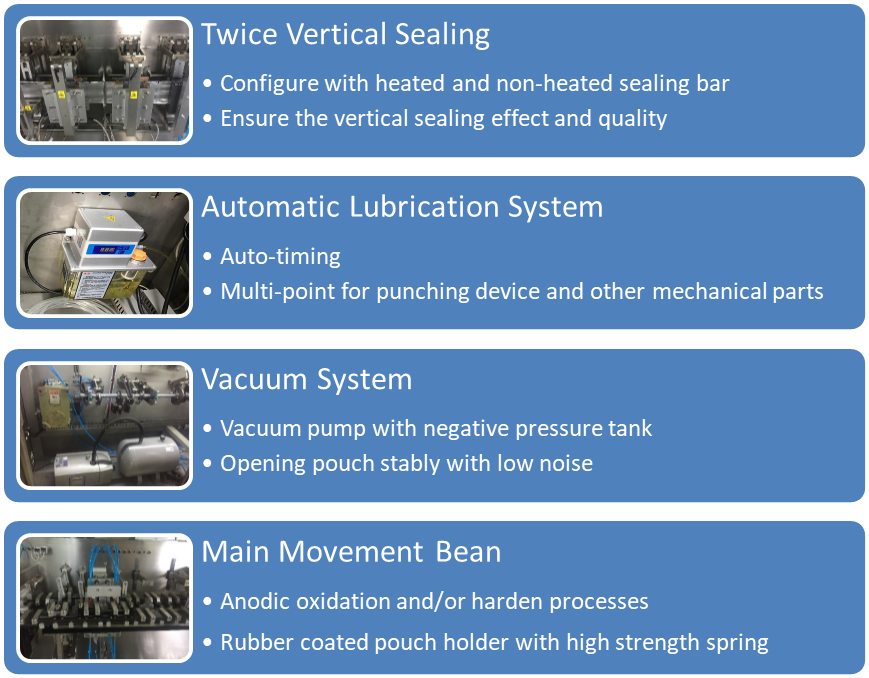

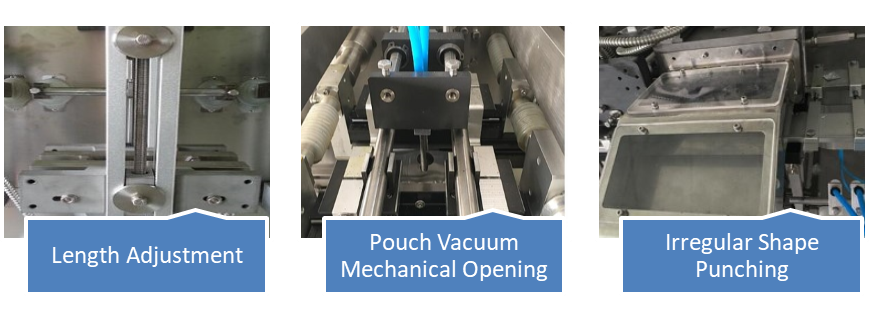

Standard Features

1)Apply carbon steel with plastic spraying structure covered by stainless steel 304, high strength

2)Main movement beam and pouch holding bars applied with anodic oxidation and/or harden aluminum

3)Stainless steel 304 for product touching parts

4)PLC & Touch Screen HMI Control

5)Intelligent PID temperature controller

6)Servo motor for film pre-pulling and bottom hole punching

7)Easy adjustment of the pouch length

8)Twice top and vertical sealing processes

9)Pouch vacuum and mechanical opening

10)Vacuum system powered by vacuum pump with negative pressure tank

11)Individual pressure tank for different compress air supplies

12)Pouch not open completely, no fill and seal interlock

13)Central lubrication system for punching device and other key mechanical parts

14)Visual Protective Cover

15)Cold Embossing type coding

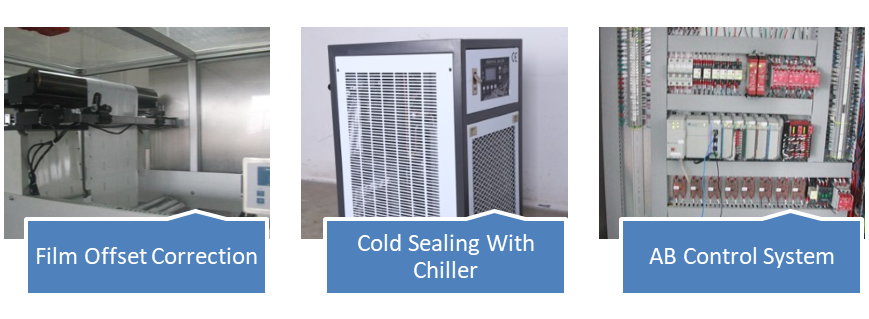

Optional Features

1)Stainless steel 316 for product touching parts

2)Automatic film offset correction system

3)Tear notch

4)Ribbon, inkjet or laser coding

5)Cold sealing with chiller

6)AB Control System
