Product Code: PP217D
This machine is applicable for packing powder, granule, liquid in form of stand up pouch, with different patterns of sealing, which include processes of stand up pouch forming, product dosing, filling and sealing.
This machine is applicable for packing powder, granule, liquid in form of stand up pouch, with different patterns of sealing, which include processes of stand up pouch forming, product dosing, filling and sealing.
| Issue | Application Description |
| Applicable Pouch | Stand up pouches, Flat pouches, or other irregular shape pouches. |
| Applicable Products | Configure with different dosing devices, capable to pack with liquid, powder or granule, such as juice, curry, jam, tomato sauce, mayonnaise, nuts, detergent, etc. Applicable Packaging |
| Material | Laminate Heat sealable packing materials such as OPP/PE, BOPP/OPP/PE, PET/AL /CPP etc. |

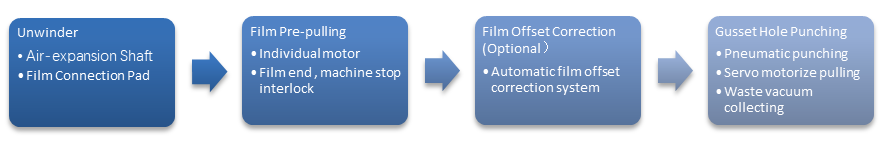

Film Unwinding Process
Note: the gusset hole punching process applies for stand-up pouch

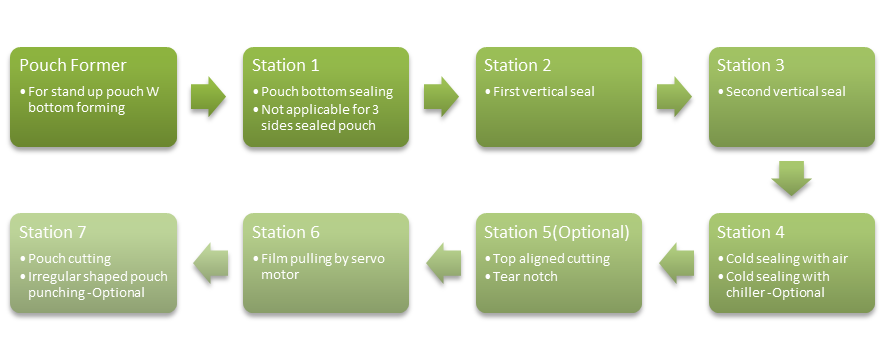

Pouch Forming Process

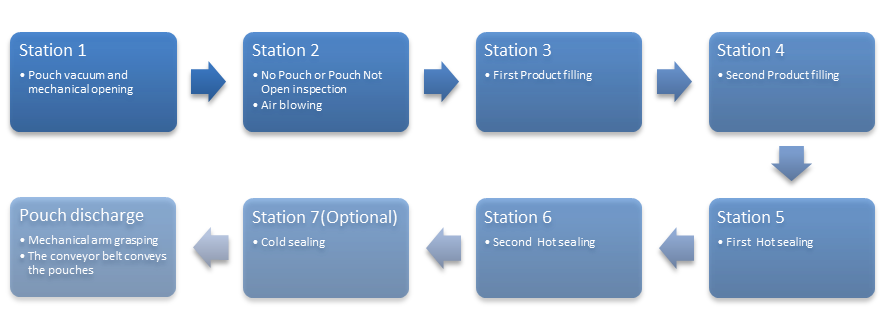

Pouch Filling Sealing Process
Note:
1)The product filling process can be 1 to 4 station according to project requirement
Standard Features
1)Standard stand up pouch form fill and seal
2)Rigid carbon steel structure with plastic spraying process and covered by stainless steel 304
3)Anodic oxidation and/or harden aluminum for main movement beam and pouch holding bars
4)Stainless steel 304 for product touching parts
5)PLC & Touch Screen HMI Control
6)Intelligent PID temperature controller
7)Servo motor for film pre-pulling and bottom hole punching
8)Easy pouch length adjustment
9)Twice product filling, twice vertical sealing processes
10)Pouch vacuum and mechanical opening
11)Vacuum system powered by vacuum pump with negative pressure tank
12)Individual pressure tank for different compress air supplies
13)Pouch not open completely, no fill and seal interlock
14)Central lubrication system for punching device and other key mechanical parts
15)Visual Protective Cover
16)Cold Embossing type coding

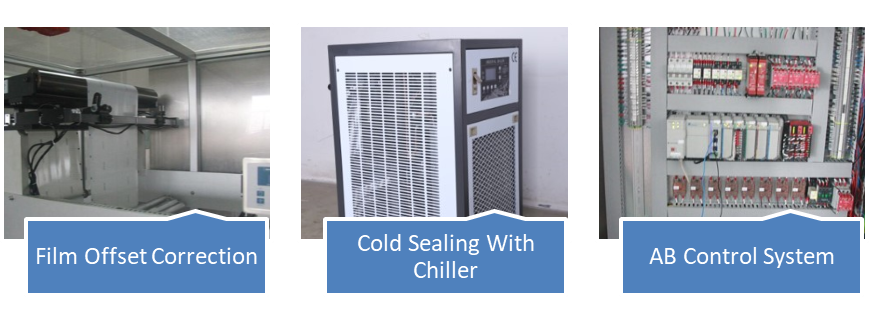

Optional Features
1)Flat pouch
2)Irregular shaped stand up pouch
3)Stainless steel 316 for product touching parts
4)Automatic film offset correction system
5)Top aligned cutting
6)Tear notch
7)Ribbon, inkjet or laser coding
8)Cold sealing with chiller
9)AB Control System
| Type 1G-xxxx | HMK-1600S | HMK-2000S | HMK-3000S |
| Packaging Speed | 40-60 pouches/min | 40-60 pouches/min | 40-60 pouches/min |
| Lanes | 1 Pouch/cycle | 1 Pouch/cycle | 1 Pouch/cycle |
| Vertical Sealing Station | 2 | 2 | 2 |
| Pouch Size-Length | 80-270 mm | 100-320 mm | 100-400 mm |
| Pouch Size-Width | 60-180 mm | 80-220 mm | 80-320 mm |
| Film Pulling Driven | Servo Motor | Servo Motor | Servo Motor |
| Power Consumption | 8 kw | 8 kw | 8 kw |
| Power Requirement | AC 380V 50/60HZ | AC 380V 50/60HZ | AC 380V 50/60HZ |
| Type 1G-xxxx | HMK-1600DS | HMK-2000DS | HMK-3000DS |
| Packaging Speed | 60-80 pouches/min | 60-80 pouches/min | 60-80 pouches/min |
| Lanes | 2 Pouches/cycle | 2 Pouches/cycle | 2 Pouches/cycle |
| Vertical Sealing Station | 2 | 2 | 2 |
| Pouch Size-Length | 80-135 mm | 100-160 mm | 100-200 mm |
| Pouch Size-Width | 60-90 mm | 80-110 mm | 80-160 mm |
| Film Pulling Driven | Servo Motor | Servo Motor | Servo Motor |
| Power Consumption | 10 kw | 10 kw | 10 kw |
| Power Requirement | AC 380V 50/60HZ | AC 380V 50/60HZ | AC 380V 50/60HZ |
