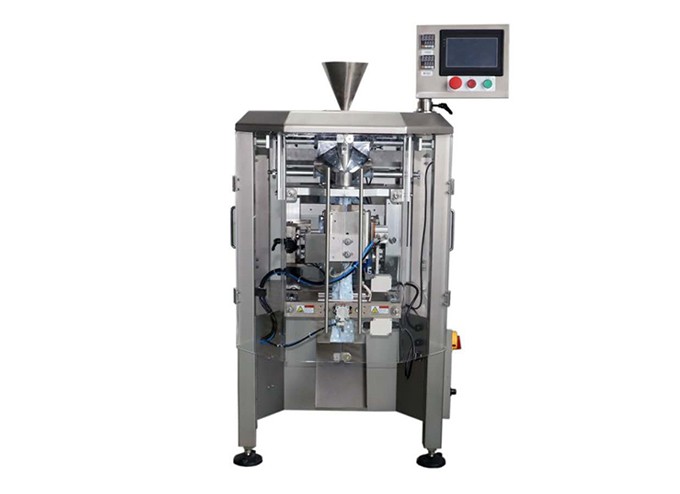

3 Servo High Speed Vertical Form Fill Seal Machine
  • 3 Servo High Speed Vertical Form Fill Seal Machine
  • 3 Servo High Speed Vertical Form Fill Seal Machine
  • 3 Servo High Speed Vertical Form Fill Seal Machine
  • 3 Servo High Speed Vertical Form Fill Seal Machine
  • 3 Servo High Speed Vertical Form Fill Seal Machine
3 Servo High Speed Vertical Form Fill Seal Machine3 Servo High Speed Vertical Form Fill Seal Machine3 Servo High Speed Vertical Form Fill Seal Machine3 Servo High Speed Vertical Form Fill Seal Machine3 Servo High Speed Vertical Form Fill Seal Machine

3 Servo High Speed Vertical Form Fill Seal Machine

    Product code : PP327


    This machine is applicable for film forming filling and sealing of flat pillow pouch or side gusset pouch.



    By configure with different metering devices, suitable for packing powder, granule, liquid or other irregular solidity, etc.


Inquire Now
Product Introduction


Application


This machine is applicable for film forming filling and sealing of flat pillow pouch or side gusset pouch.



By configure with different metering devices, suitable for packing powder, granule, liquid or other irregular solidity, etc.




Working Processes


3 Servo High Speed Vertical Form Fill Seal Machine

Note: the above working processes indicate for main machine only


Features


Standard Features



1) Touch screen HMI Control, easy for parameter setting and troubleshooting

2) Mainly stainless-steel 304 construction

3) Heavy duty design suits for high-speed operation

4) Film unwinding method: Servo Motor

5) Film pulling Method: Servo Motor

6) Horizontal sealing method: Servo Motor

7) Intelligent temperature controlling configuration, ensure the artistic and neat sealing

8) Configure with packaging film tension control, to enable stable pouch making

9) Smaller size, flexible for space adaption

3 Servo High Speed Vertical Form Fill Seal Machine


Optional Features



1) Stainless Steel 316 for product touching parts

2) Gusset pouch

3) 3 side sealed pouch

4) Flat or Zigzag cutting off

5) Hanging hole punching

6) Nitrogen flush

7) Embossing, ribbon, inkjet or laser coding

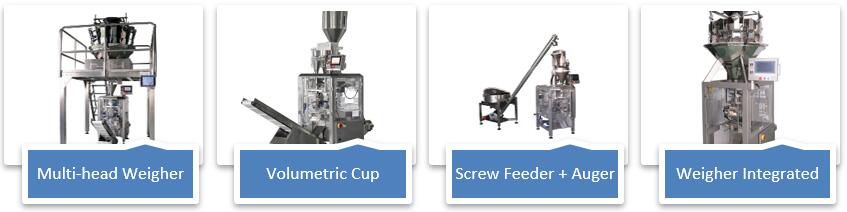

1. Powder

• Powder loading device

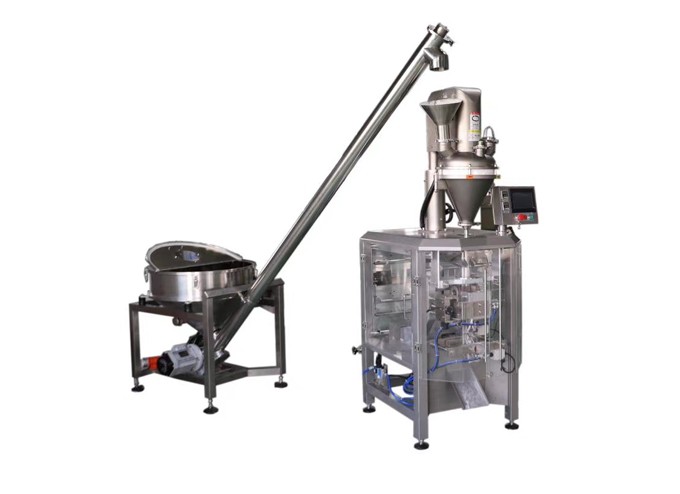

• Auger filler

• Vacuum dust collecting system



2. Granule

• Product loading system

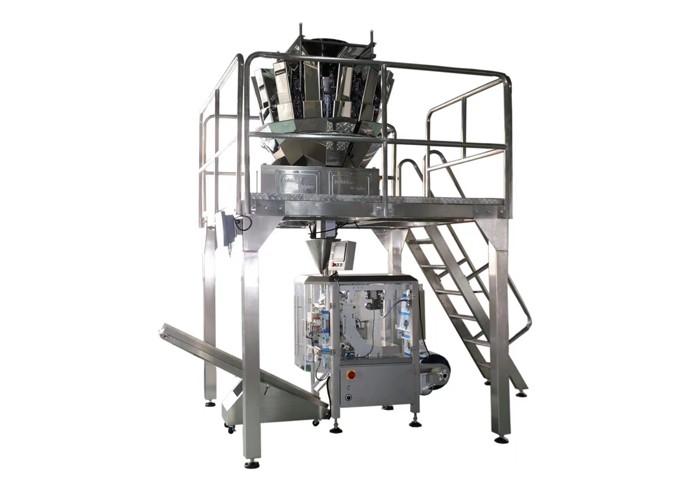

• Multi-head weigher

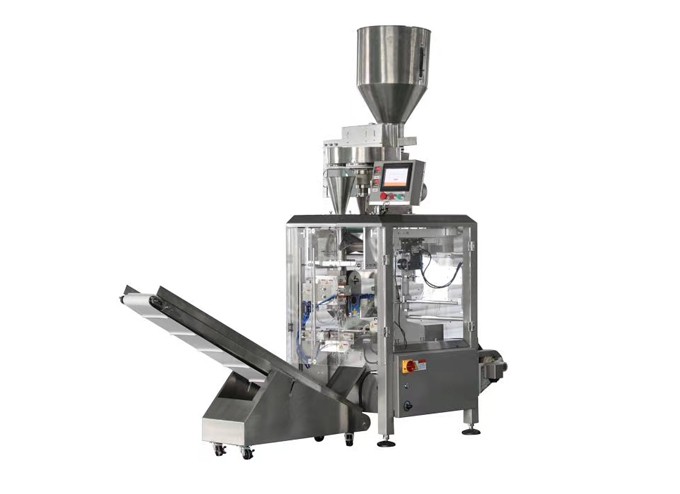

• Volumetric cup



3. Liquid

Different pumps applied for ordinary liquid, viscous liquid, sauce with small slices.

3 Servo High Speed Vertical Form Fill Seal Machine

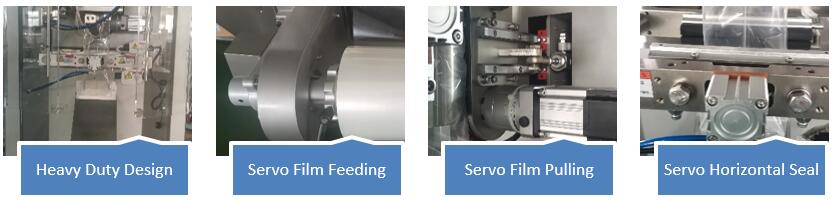

Advantages


3 Servo High Speed Vertical Form Fill Seal Machine


Technical Specification


Type320SF420SF
Packaging Speed20-100 bags/min20-100 bags/min
Film Width120-320 mm120-420 mm
Bag sizeL: 50-170 mmW: 50-150 mmL: 50-300 mmW: 50-200 mm
App Air Supply>=6 kg/cm³, 80 L/min>=6 kg/cm³, 200 L/min
Power Consumption3.5 kw4 kw
Power Supply220 VAC /2P+E/ 50 Hz220 VAC /2P+E / 50 Hz
Dimensions L*W*H1350*1000*1450 mm1500*1000*1500 mm
Net Weight:350 kg450 kg


TypeM12F32-07M12F42-07
DosingCombination WeigherCombination Weigher
Pro-proportion Bucket 1212
Weighing Bucket1212
Bucket Volume0.7 Liter0.7 Liter
Bucket Open DoorsSingle doorSingle door
Packaging Speed20-100 bags/min20-100 bags/min
Film Width120-320 mm120-420 mm
Bag sizeL: 50-170 mmW: 50-150 mmL: 50-300 mmW: 50-200 mm
App Air Supply>=6 kg/cm³, 80 L/min>=6 kg/cm³, 200 L/min
Power Consumption4 kw4.5 kw
Power Supply220 VAC /2P+E/ 50 Hz220 VAC /2P+E / 50 Hz
Dimensions L*W*H1350*1000*2300 mm1500*00*2500 mm
Net Weight:700 kg800 kg


Note:

1) The speed of packaging subject to the filling volume, size of bag, characteristic of products and accuracy requirement

2) The filling accuracy subject to the packaging speed, filling volume and characteristic of products

3) Need to configure with different type or set of metering devices to cover the full filing range, and different characteristic of products

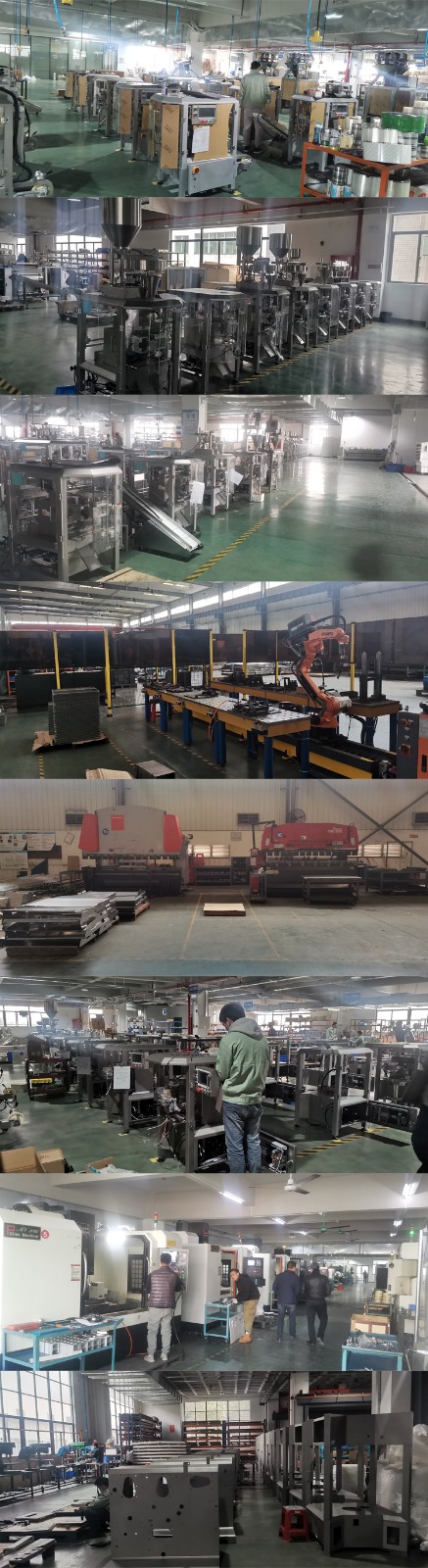

Related Pictures


3 Servo High Speed Vertical Form Fill Seal Machine


Video Links


VD327A 3 Servo High Speed Vertical Form Fill Seal Machine+Volumetric Cup+Sunflower Seeds+103BPM


VD327B 3 Servo High Speed Vertical Form Fill Seal Machine+Multi head weigher+20g MM bean + 97BPM


VD327C 3 Servo High Speed Vertical Form Fill Seal Machine+Empty Pouch+120BPM

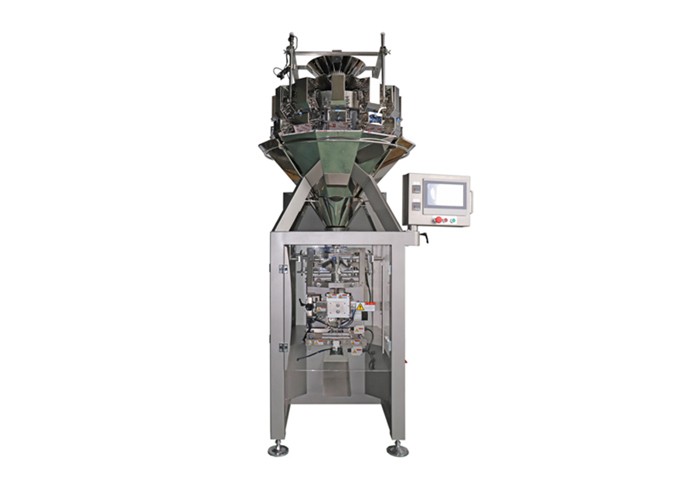

VD327D 3 Servo High Speed Vertical Form Fill Seal Machine+Multi head Weigher Integrated
