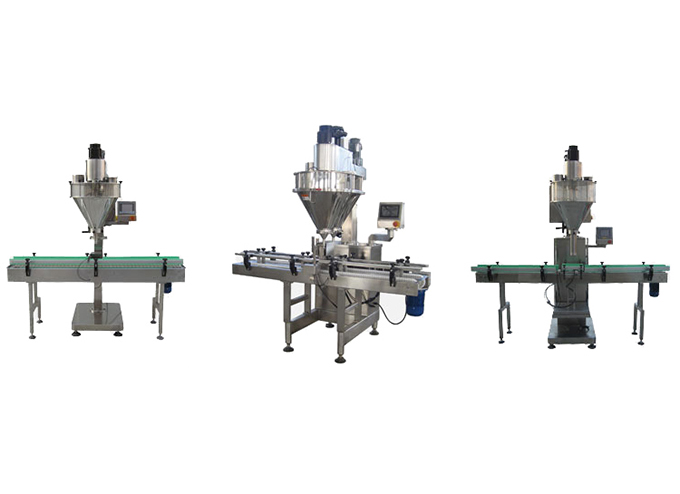

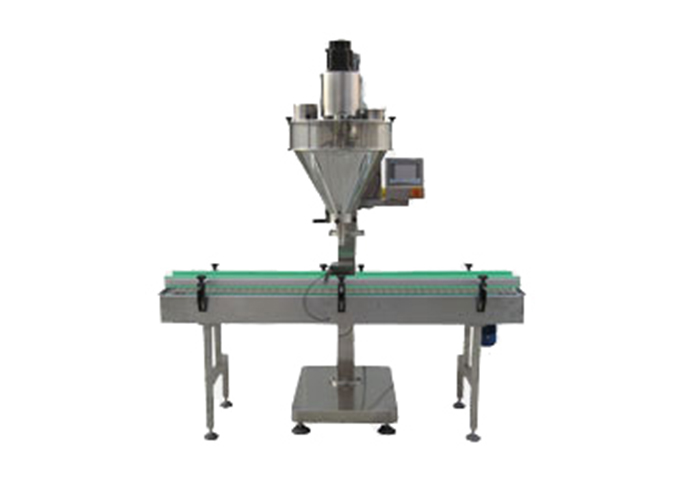

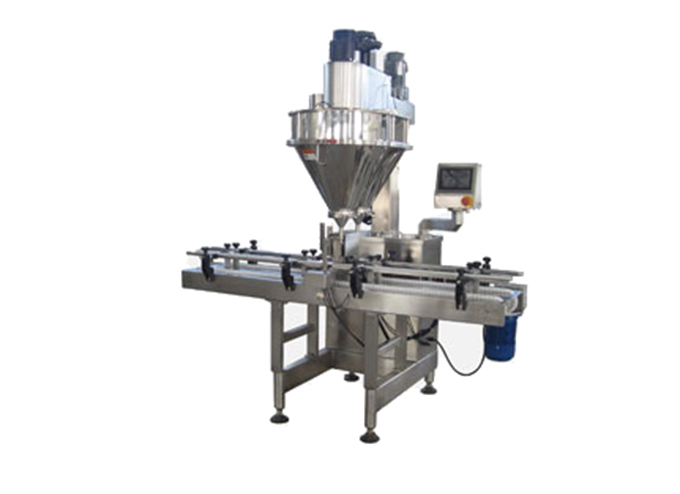

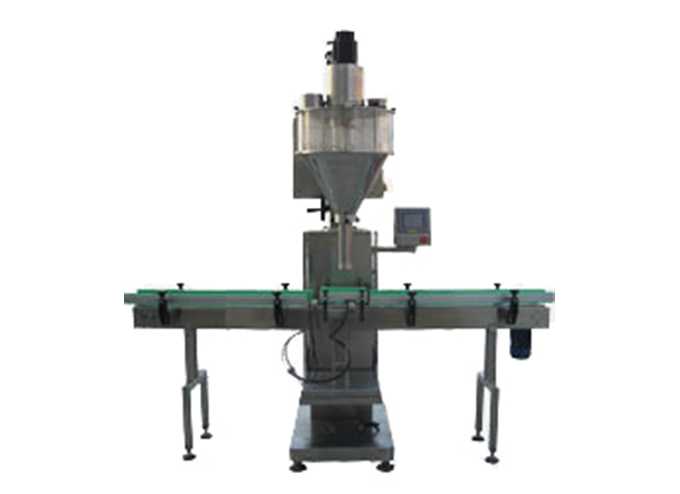

Linear Type Automatic Powder Filling Machine
  • Linear Type Automatic Powder Filling Machine
  • Linear Type Automatic Powder Filling Machine
  • Linear Type Automatic Powder Filling Machine
  • Linear Type Automatic Powder Filling Machine
Linear Type Automatic Powder Filling MachineLinear Type Automatic Powder Filling MachineLinear Type Automatic Powder Filling MachineLinear Type Automatic Powder Filling Machine

Linear Type Automatic Powder Filling Machine


    Product Code: PP111


    This machine is applicable for packing powder, small granule in form of bottle, can, or jar, with different type of capping or sealing device is capable to form a production line, It is most economic option for powder filling line configuration
Inquire Now
Product Introduction


Application


This machine is applicable for packing powder, small granule in form of bottle, can, or jar, with different type of capping or sealing device is capable to form a production line, It is most economic option for powder filling line configuration, the detail application description as following table:


IssueApplication Description
Applicable ProductsSuitable for powder or small granule dosing and filling. Such as sugar, salt, flour, starch, milk powder, coffee powder, dextrose, powder additive etc
Applicable ContainersJar can, barrel or bottles.

Following are the reference style of packaging




Features


Standard Features



     Suitable for powder or small granule dosing and filling

     PLC &Touch screen HMI control enable easy operation parameter setting up and troubleshooting

     Configure with servo motor to drive dosing auger, to achieve high dosing accuracy and speed.

     Height adjustable devices, to adapt different height of the container

     Quick dis-connectable hopper could be washed easily without tools

     Transparent hopper configuration, easy for operation monitoring

     Storing 10 groups of technical parameter for the different products, convenient for product changing

     By simply changing the auger parts, suitable for filling material from super fine powder to granule materials.



Optional Features



     Dual operation mode: online scale dosing or volumetric dosing

     Container up and down during filling

  Semi-open product hopper

   Faster and slow filling mode


Advantages


a)         Servo motor driving, more accurate dosing, faster speed

b)         Transparent hopper, operation visible

c)         Quick dis-connectable hopper, easy for cleaning

d)         Height adjustable to adapt different container

e)         Auger changeable enable different product dosing and filling



Technical Specification


Catalogue/1D-xxxxx2A-12B-102B-15
Measurement MethodAuger dosingAuger dosing

1)Auger dosing

2)With online weighing

3)Container Lift-fall function

Filling Range ‘g1-50010-5000100-10,000
Filling Accuracy

1)<=100g,<=±2%;

2)100 - 500g,<=±1%;

1)<=500g,<=±1%;

2)>500g,<=±0.5%

1)1-1000g,<=2g;

2)>1000g,<=±0.2%

Filling Speed -cans/min15-4015-405-20
Hopper Volume-Liter

35-Standard

50-Standard

70-Extra Large

70-Standard
Power RequirementAC208-415V 50/60HzAC208-415V 50/60HzAC208-415V 50/60Hz
Power Consumption-KW1.21.63.2
Compress Air Required-Mpa0.60.60.6
Compress Air Consumption0.05 m3/min0.05 m3/min0.05 m3/min
Approximate Weight -kg160300450
Dimension ( ‘mm )1500*760*18502000*970*20303000*970*2300


Related Links


Following are the related video links on our Youtube site


Linear type powder filling machine
