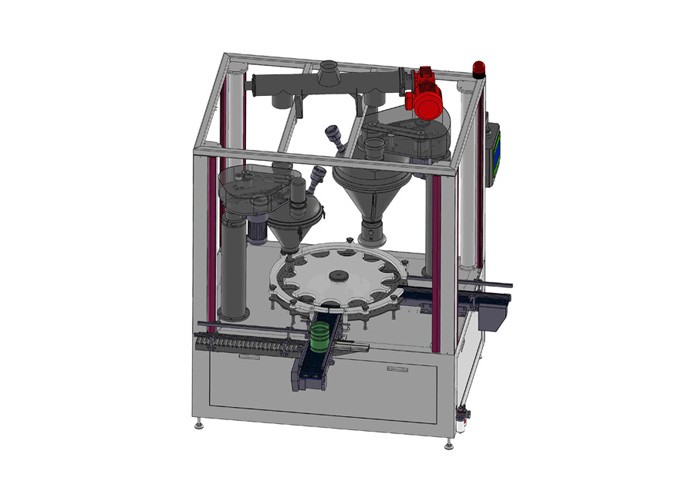

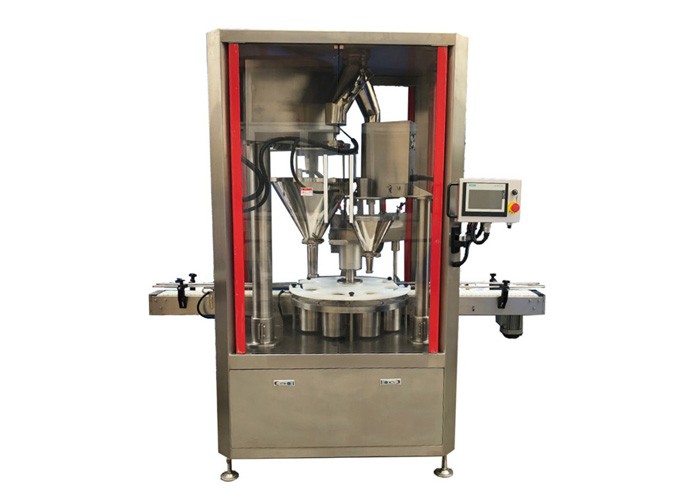

Rotary Type Automatic Powder Double Filling & Weighing Machine
  • Rotary Type Automatic Powder Double Filling & Weighing Machine
  • Rotary Type Automatic Powder Double Filling & Weighing Machine
  • Rotary Type Automatic Powder Double Filling & Weighing Machine
Rotary Type Automatic Powder Double Filling & Weighing MachineRotary Type Automatic Powder Double Filling & Weighing MachineRotary Type Automatic Powder Double Filling & Weighing Machine

Rotary Type Automatic Powder Double Filling & Weighing Machine

    Product code : PP258



    This machine is applicable for powder or small granule dosing and filling in form of can, jar or bottle.

Inquire Now
Product Introduction


Application


This machine is applicable for powder or small granule dosing and filling in form of can, jar or bottle, the detail application description as following table:


IssueApplication Description
Applicable ProductsSuitable for filling powdered materials, such as milk powder,   protein powder, coffee powder, glucose powder, health care products and   spices.
Applicable ContainersSuitable for bottles, round containers, mental cans with spec.   #300, #307, #401, #502

Rotary Type Automatic Powder Double Filling

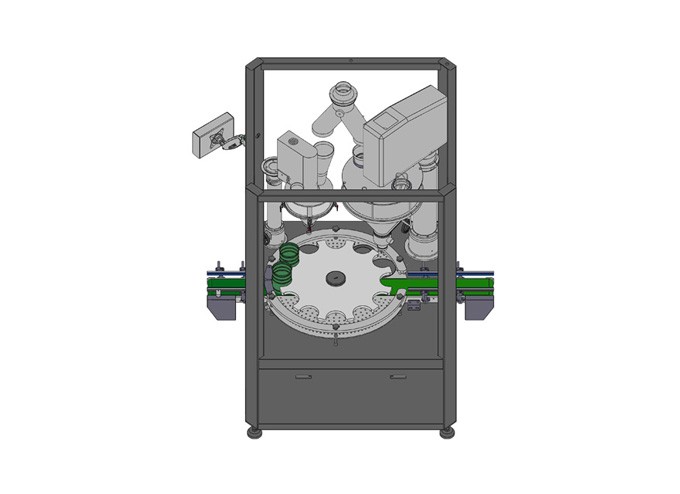

Working Processes


  • With rotary working model, the first generation has 8 stations , each one finish 1 process of working.

  • The second generation has upgraded to 12 stations to achieve a higher packing speed and a more smooth working process.

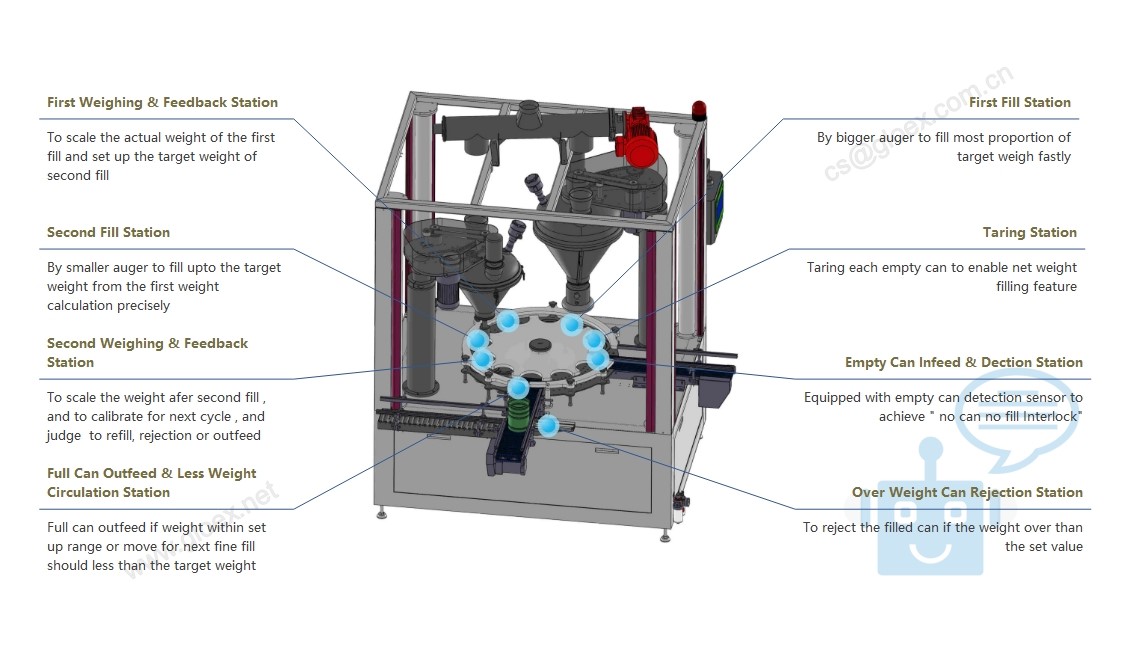

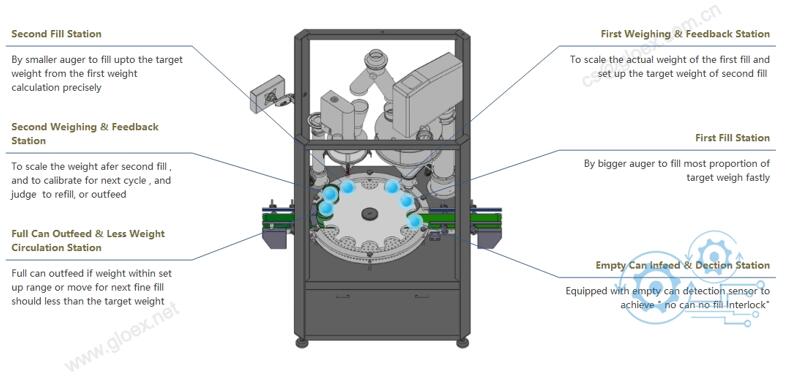

  • Stations Display

Rotary Type Automatic Powder Double Filling

Rotary Type Automatic Powder Double Filling

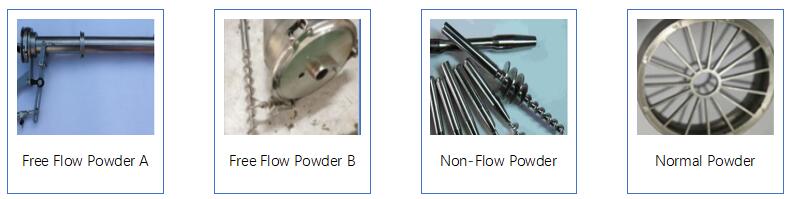

  • By configuring with different design screw augers, such as standard auger, forcing model auger, capable to fill different products with typical features.

  • For some particular features, such as dusty, or very good fluidity, vacuum dusty collection device or shutoff valve will be configured to ensure the filing and packing performance.

Rotary Type Automatic Powder Double Filling



Features


Standard Features



1)        Suitable for powder or small granule dosing and filling in form of can, jar or bottle

2)        Double filling configuration enable high speed and high filling accuracy

3)        PLC &Touch screen HMI control enable easy operation parameter setting up and troubleshooting

4)        Configure with servo motors to drive dosing auger, to achieve high dosing accuracy and speed.

5)        Pneumatic can/ jar lifting device, to assure no spilling out during filling process

6)        Weight checking/self-calibration device to assure each product be qualified, unqualified product automatically return for secondary filling , enable 100% qualified production

7)        Configured vibrating device on filling station to fill smoothly and anti-bridge arch for can seaming convivence

8)        Turntable able to accurately position the container automatically, no bottles no filling.


Rotary Type Automatic Powder Double Filling

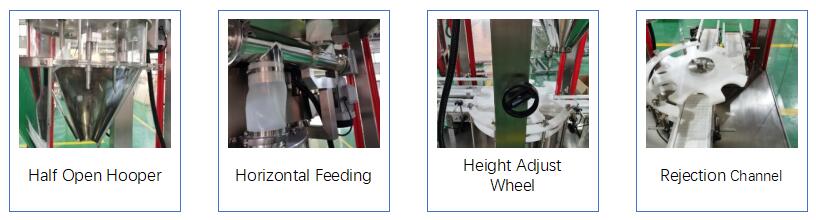

Optional Features


1)       Powder loading device available

2)       Horizontal feeding auger to ensure the powder density remains same when working with powder vacuum loader.

3)       Vacuum dust collection

4)       Empty cans infeeding, finished packed cans collection

5)       Date printing device configuration



Advantages


Rotary Type Automatic Powder Double Filling


Technical Specification


Catalogue/1R-xxxxx4N-2B2
Work Stations12
Auger Set 2
Container Diameter (mm) 50-180
Container Height (mm) 50-350
Packing Speed (cans/min)25-50
Reference Filling Range (g/can)10-5000
Hoppers Volume (L) 50-Main Hopper, 25- Auxiliary Hopper
Power Requirement380VAC 3P+N+E 50HZ
Power Consumption(kW)3.5KW
Compress Air Required (Mpa)0.6
Compress Air Consumption(m3/min)0.2
Dimension(mm)3330*1200*2930



Rotary Type Automatic Powder Double Filling

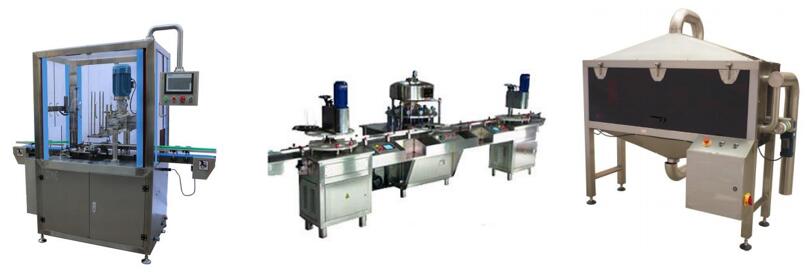

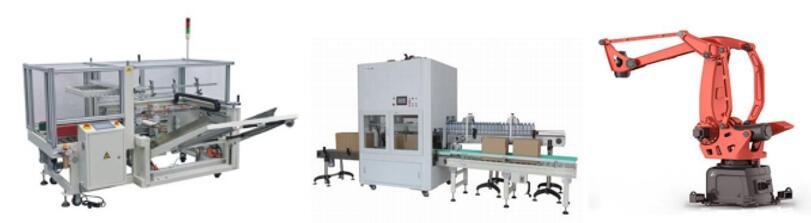

Related Products


In order to form a production line, the corresponding filling, sealing machines are necessary accessories.

Rotary Type Automatic Powder Double Filling

Rotary Type Automatic Powder Double Filling

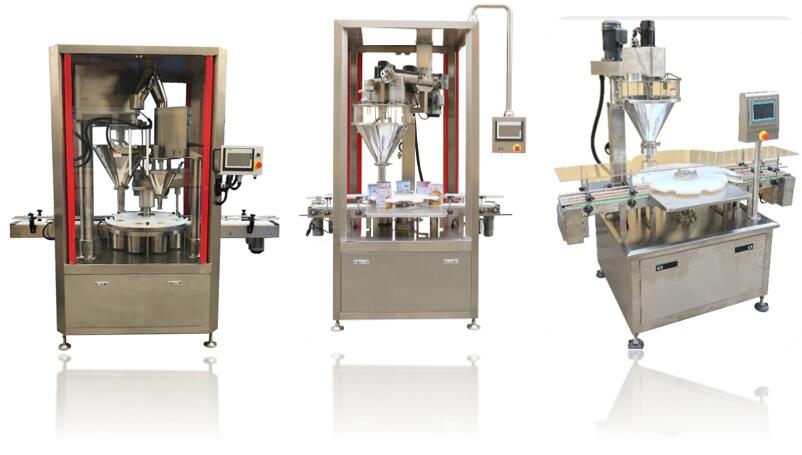

Cases
