Product Code: PP285

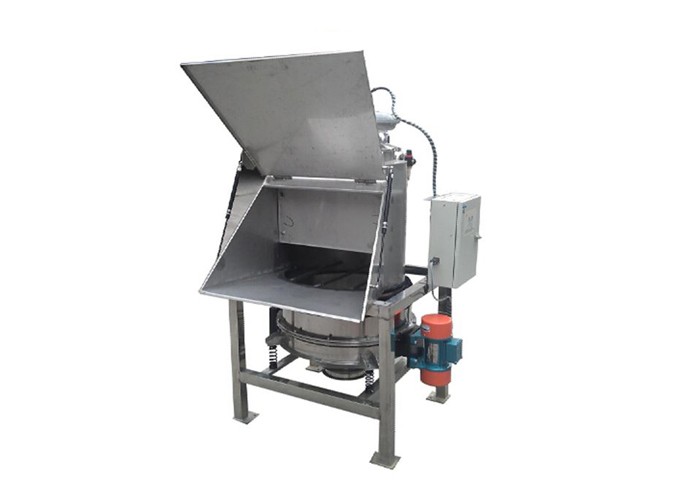

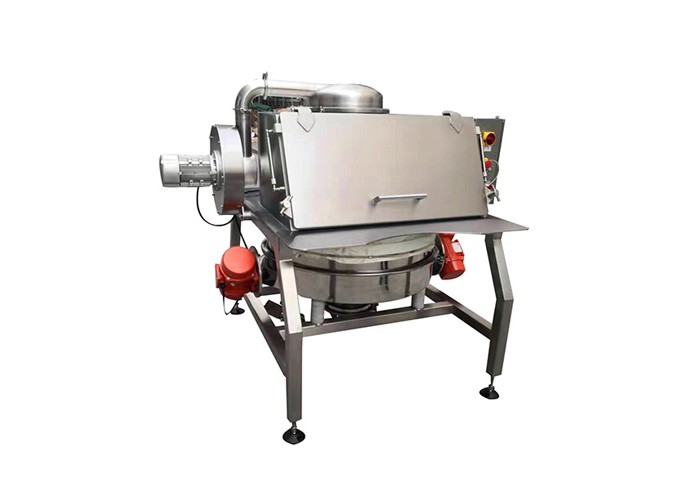

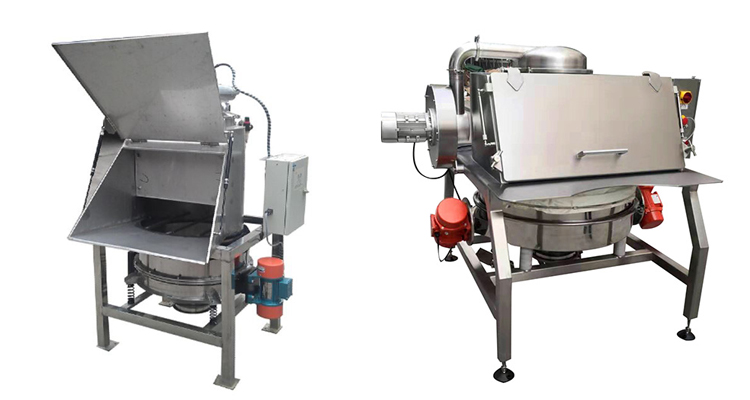

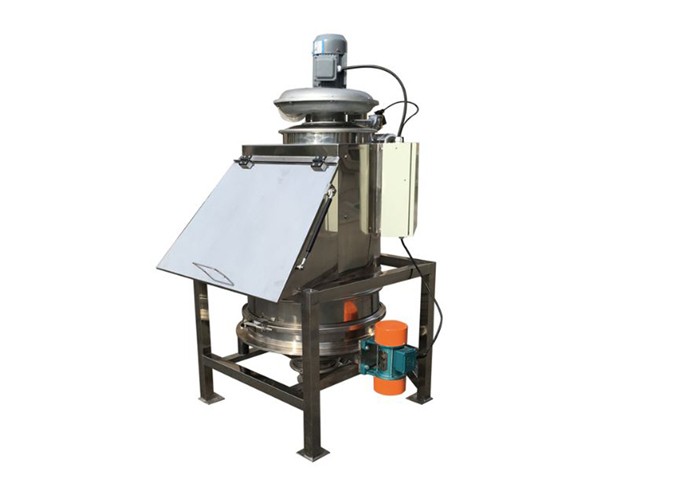

This machine is applicable for powder or granulate products batch dispensing.
The machine configured a dust collecting sub-system with Polyester filter to control the dust when batch dispensing.
This machine is applicable for powder or granulate products batch dispensing.
The machine configured a dust collecting sub-system with Polyester filter to control the dust when batch dispensing.
Standard Features
1) Apply for powder or granulate products batch dispensing
2) Mainly constructed with stainless steel 304
3) Dust collecting sub-system with Polyester filter
4) Automatic dust blowing sub-system for filter
5) Vibrating impurity screening sub-system
6) Customized discharge outlet
Optional Features
1) Heavy duty design with rigid stainless steel 304
2) Stainless steel 304 filter

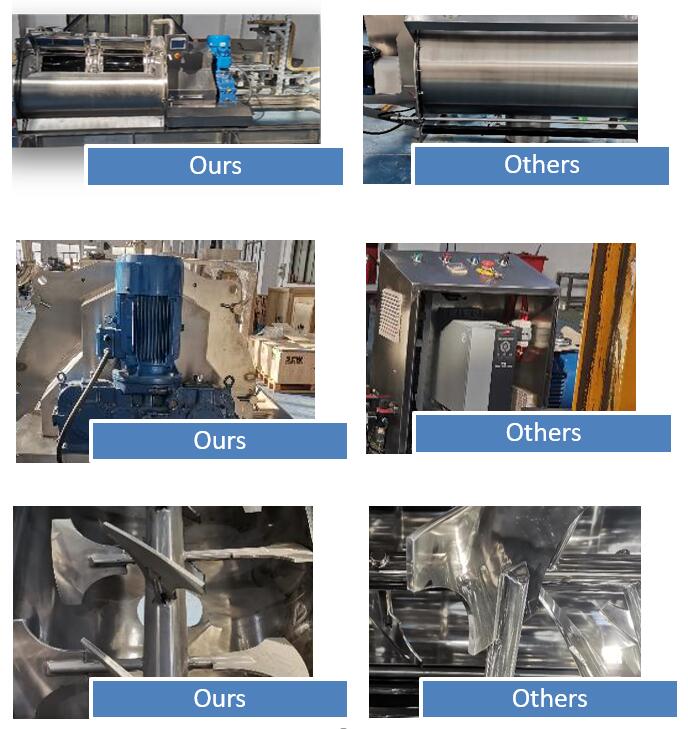

Detailed picture for ours and others comparisons
| Type | 3V-TLZ-1 | 5B-TD-1 |
| Diameter | 650mm | 1000mm |
| Mesh of Screening | 10mesh, 5*5mm or 10*10mm | 12 mesh |
| Discharge Outlet | 51,63 or 76mm | 51,63 or 76mm |
| Power Supply | 380V, 3Phase, 1.25kw | 380V, 3Phase, 2.0kw |
| Air Supply | 20 Liter/Minute,0.4-0.6Mpa | 20 Liter/Minute,0.4-0.6Mpa |
In order to form a production line, the corresponding filling, sealing machines are necessary accessories.
