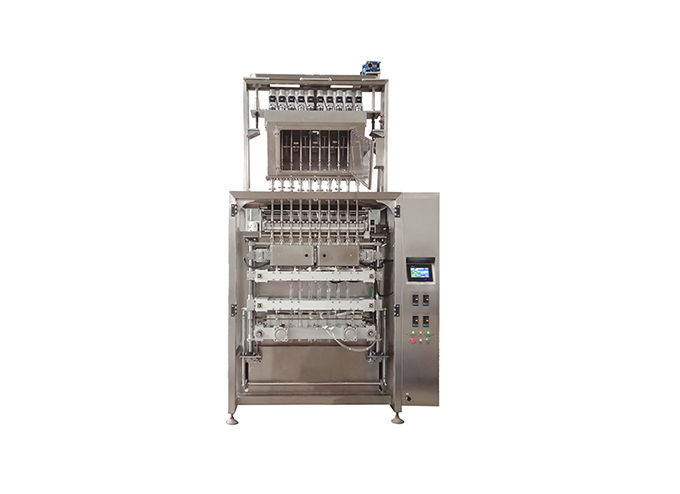

Automatic Multi-Lane Powder Stick Form Fill Seal Machine
  • Automatic Multi-Lane Powder Stick Form Fill Seal Machine
  • Automatic Multi-Lane Powder Stick Form Fill Seal Machine
  • Automatic Multi-Lane Powder Stick Form Fill Seal Machine
  • Automatic Multi-Lane Powder Stick Form Fill Seal Machine
Automatic Multi-Lane Powder Stick Form Fill Seal MachineAutomatic Multi-Lane Powder Stick Form Fill Seal MachineAutomatic Multi-Lane Powder Stick Form Fill Seal MachineAutomatic Multi-Lane Powder Stick Form Fill Seal Machine

Automatic Multi-Lane Powder Stick Form Fill Seal Machine


    Product Code: PP276


    This machine is applicable for dosing powder and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.

Inquire Now
Product Introduction


Application


This machine is applicable for dosing powder and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.


By configure with different accessories, suitable for measuring normal or even free-flowing powders, such as milk powder, rice flour, protein powder, powdery drugs, powder additives, glucose, dyeing Ingredients, flavors, spices, etc.

Automatic Multi-Lane Powder Stick Form Fill Seal Machine

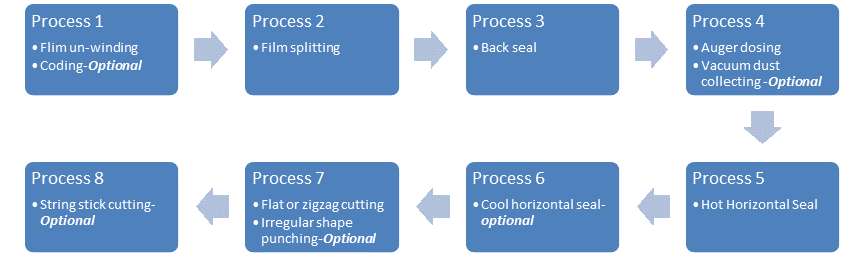

Working Processes



Features


Standard Features


Mainly stainless-steel 304 construction

Stainless-steel 304 for product touching parts

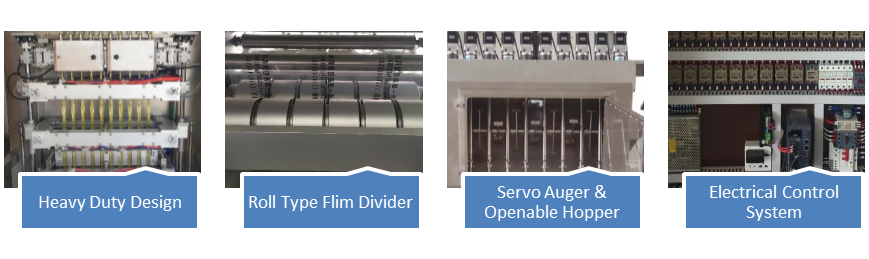

Heavy duty design suits for high speed operation

No waste of film design, no reserved film edge required

Roller type film dividing device

PLC & Touch screen HMI control

Guided servo motorized film pulling device integrated with horizontal seal

Individual servo auger dosing for each lane and automatic dosing range adjustment by PLC

Visible hopper with openable door

Intelligent PID temperature controller

Door open and machine stop interlock

No packaging film and machine stop interlock

Optional Features


Stainless Steel 316 for product touching parts

Sealing pattern

Flat or Zigzag cutting off

Round and other irregular shape cutting off

String sticks

Tear notch

Embossing, ribbon, inkjet or laser coding

Cool horizontal seal

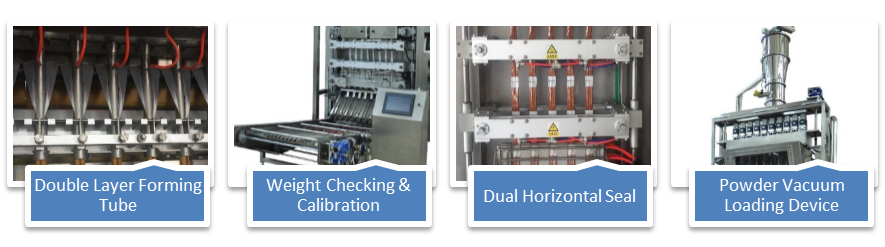

Double layer stick forming tube with vacuum dust collecting system

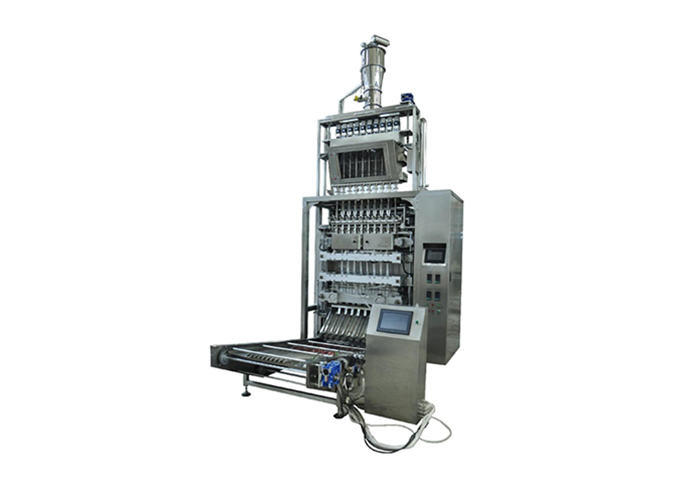

Grouping conveyor with/without stick weight checking, rejecting and target weight calibration

Stick counting system

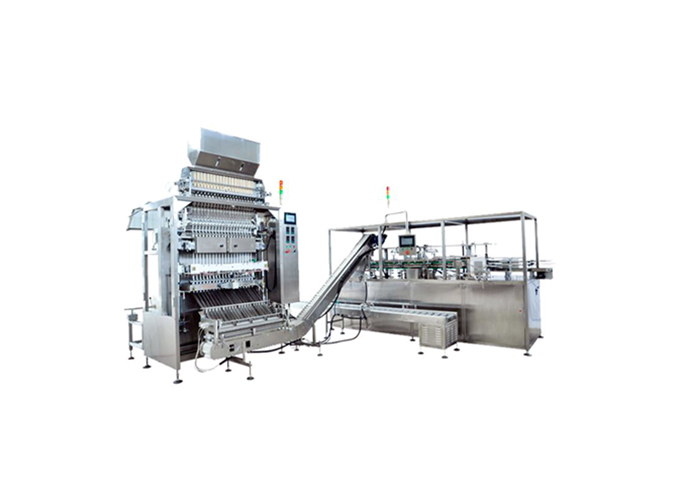

Cartoning or bagging system

Powder loading device

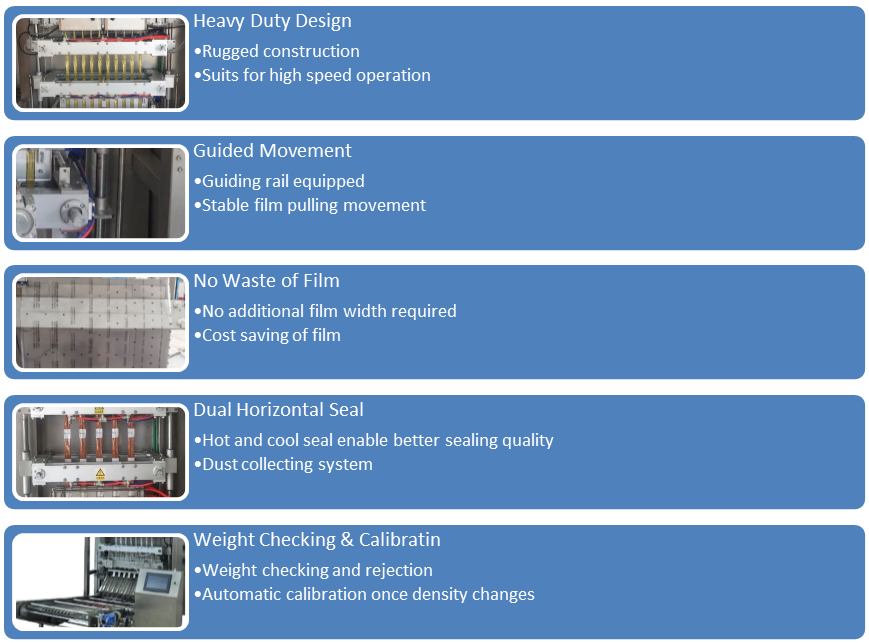

Advantages




Technical Specification


Type 4W-xxx280FB480FB880FB
Dosing MethodServo AugerServo AugerServo Auger
Packaging Speed35-60 sticks/min/lane35-60 sticks /min/lane35-60 sticks /min/lane
Max film width280 mm480 mm880 mm
Lanes3-7 lines5-12 lines5-12 lines
Filling Accuracy+/- 0.3-1%+/- 0.3-1%+/- 0.3-1%
Filling Range1-50 g1-50 g1-50 g
App Air Supply0.3 CBM/min, 0.6 Mpa0.4 CBM/min, 0.6 Mpa0.6 CBM/min, 0.6 Mpa
Power Consumption2.7 kw3.3 kw3.6 kw
Power Supply380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz380 V /3 Phases/ 50 Hz


Note:

1)The speed of packaging subject to the filling volume, size of stick, characteristic of powder and accuracy requirement

2)The filling accuracy subject to the packaging speed, filling volume and characteristic of powder

3)Need to configure with different type or set of augers to cover the full filing range, and different characteristic of powder
