Product Code: PP178A

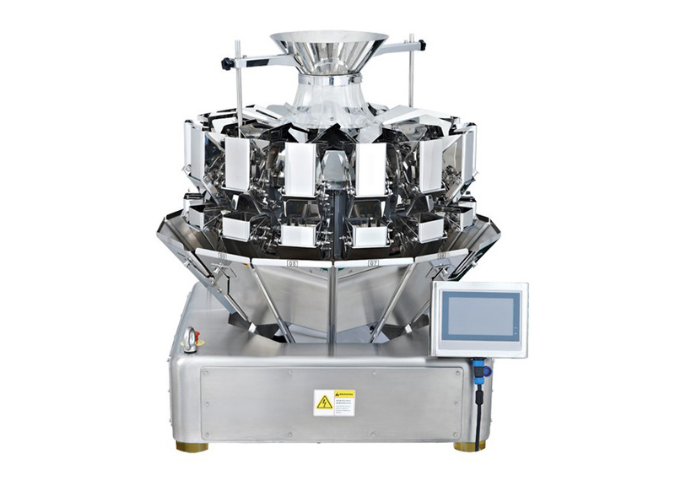

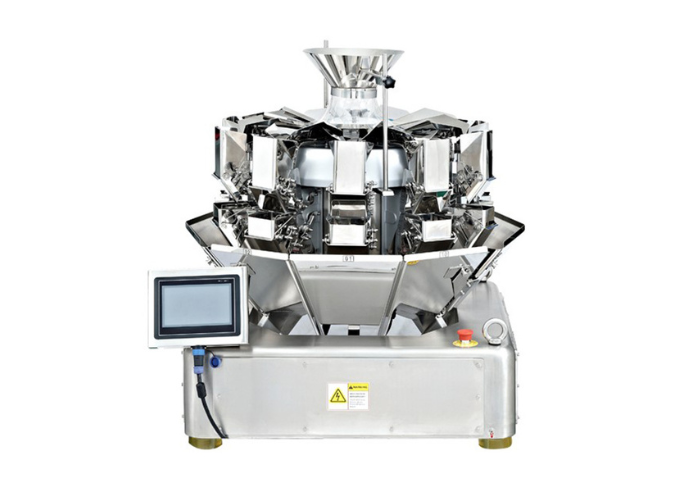

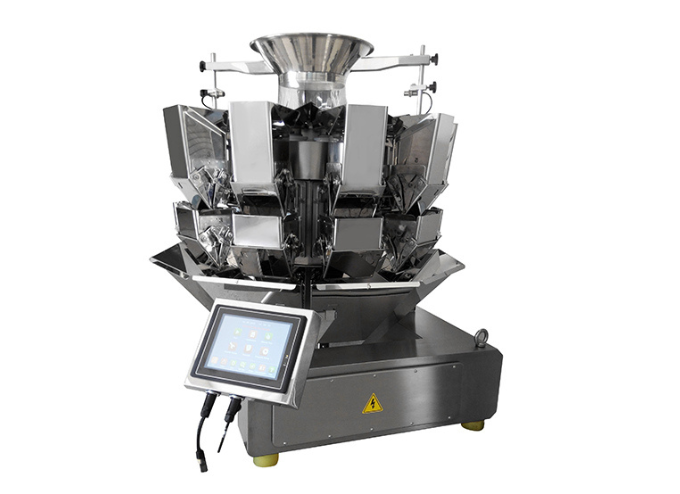

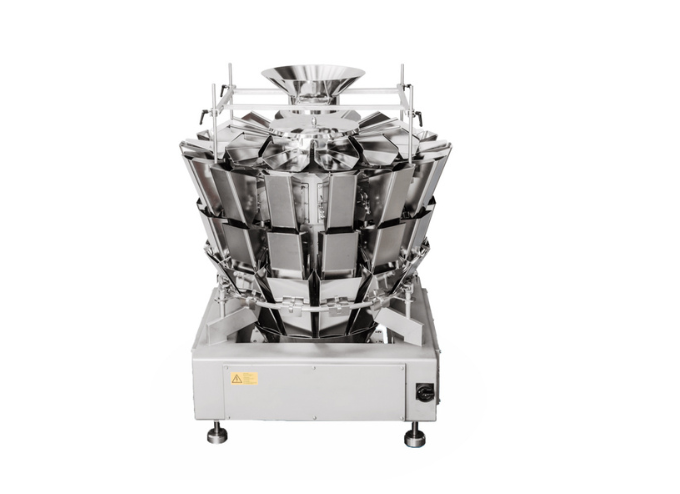

Equipped with linearly arranged pans featuring independently adjustable amplitude, high-precision modular drive units and an intelligent HMI control system, it delivers fast, high-accuracy weighing with flexible tolerance settings for granular materials and irregular solid products.
Related Video
It is applicable for , granule or other irregular solidity in form of bottle, can, or pouches, with different type of capping or sealing device is capable to form a production line
Features
l It is applicable for , granule or other irregular solidity in form of bottle, can, or pouches, with different type of capping or sealing device is capable to form a production line
l Stainless steel 304 for product touching parts
l Stainless steel 304 for control box
l MICRO-COMPUTER & HMI Control, Intelligent trouble shooting program, no addition test required
l Storing the configurations of parameter, convenient for products changing
l Advanced software integrated, faster dosing speed and flexible positive or negative deviation setting up
l Mirror process for surface as the standard , the patterning, or Teflon coating as the options
l Optionally, configure with different product buffering / distributing device to adapt different product characteristic
l No product no operation interlock
l Tool less product touching parts removal for easy cleaning
l Automatic self-diagnostics
l 100 groups of presetting parameter function allow to program different target weight and feeder control condition, quick recall and product setting
l High precise load cell and modular stepper motor actuator units
l Individual amplitude adjustment for each linear pan
l Interchangeable, buckets, modular actuator units, pans or other control boards result from modular design

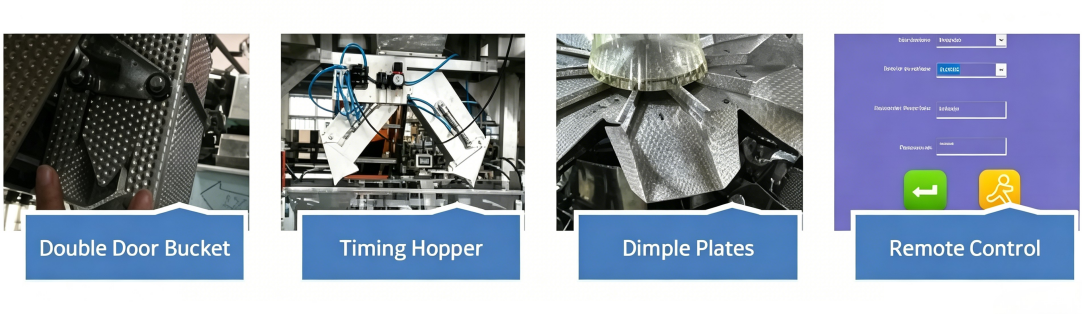

l Single or double door buckets
l Rotating & Vibrating top cone
l Reject system and re-circulate conveyor belt
l Counting Function
l Mixing function
l Counting function
l Multi Dump
l Multi-points discharge
l Special timing discharge hopper

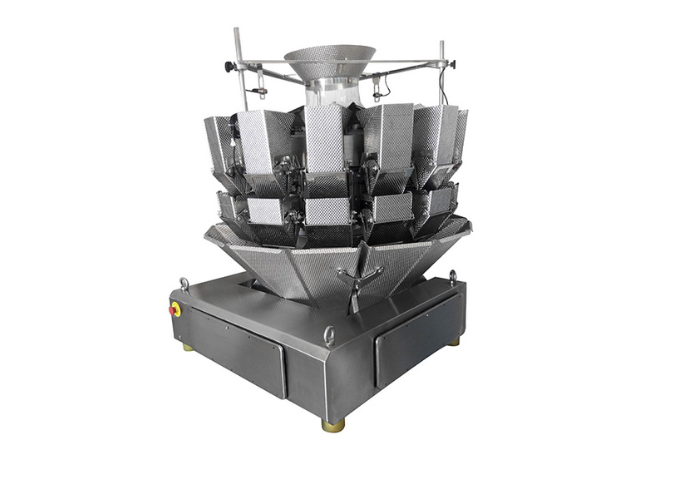

l Dimple and/or Stainless steel 316 for product touching parts
l Remote control through blue tooth, LAN
l IP 65 construction
l Short drop discharge hopper for fragile product
Advantages
Technical Specification
| Catalogue/4K-xxxx | 1A0825EC | 1A1416 | 1A1025 | 1A1050 |
| Pro-proportion Bucket | \ | 14 | 10 | 10 |
| Weigh Bucket | \ | 14 | 10 | 10 |
| Weigh Heads | 8 | \ | \ | \ |
| Bucket Open Doors | Single door | Single door | Double door | Double door |
| Weighing Range-gram | 10-1,000 | 10-2,000 | 10-1,500 | 10-3,000 |
| Weighing Accuracy -gram | +/- 1-3 | +/- 0.5-2 | +/- 0.5-2 | +/- 1-5 |
| Weighing Speed -WPM | 0-120 | 0-120 | 0-55 | 0-40 |
| Bucket Volume-Liter | 2.5 | 1.6 | 2.5 | 5.0 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 1.5 kw | 1.4 kw | 1.0 kw | 1.5 kw |
| Device Weight (kg) | 180 | 500 | 420 | 580 |
| External Dimensions (mm) | \ | 1720*1100*1130 | 1650*1070*1110 | 1950*1280*1700 |
| Catalogue/4K-xxxx | 1A1616 | 1A1005 | 1A1405 | 1A1475 |
| Pro-proportion Bucket | 16 | 10 | 14 | 14 |
| Weigh Bucket | 16 | 10 | 14 | 14 |
| Bucket Open Doors | Single door | Single door | Single door | Double door |
| Weighing Range-gram | 10-2,000 | 5-100 | 5-200 | 10-3,000 |
| Weighing Accuracy -gram | +/- 0.5-2 | +/- 0.1-1 | +/- 0.1-0.3 | +/- 0.5-2 |
| Weighing Speed -WPM | 0-140 | 0-60 | 0-120 | 0-100 |
| Bucket Volume-Liter | 1.6 | 0.5 | 0.5 | 7.5 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 1.6 kw | 0.8 kw | 1.0 kw | 1.4 kw |
| Device Weight (kg) | \ | 180 | 250 | 550 |
| External Dimensions (mm) | \ | 1200*980*985 | 1200*980*980 | 1720*1100*1130 |
