CSC3139-Successful Case-Powder Processing System

1. Project No. : CSC3139

2. Country: Italy

3. Project Introduction: Complete Powder Processing and Mixing System

4. Material: Various powders with different particle sizes (from flour-like to sugar-like)

5. Machine Name:

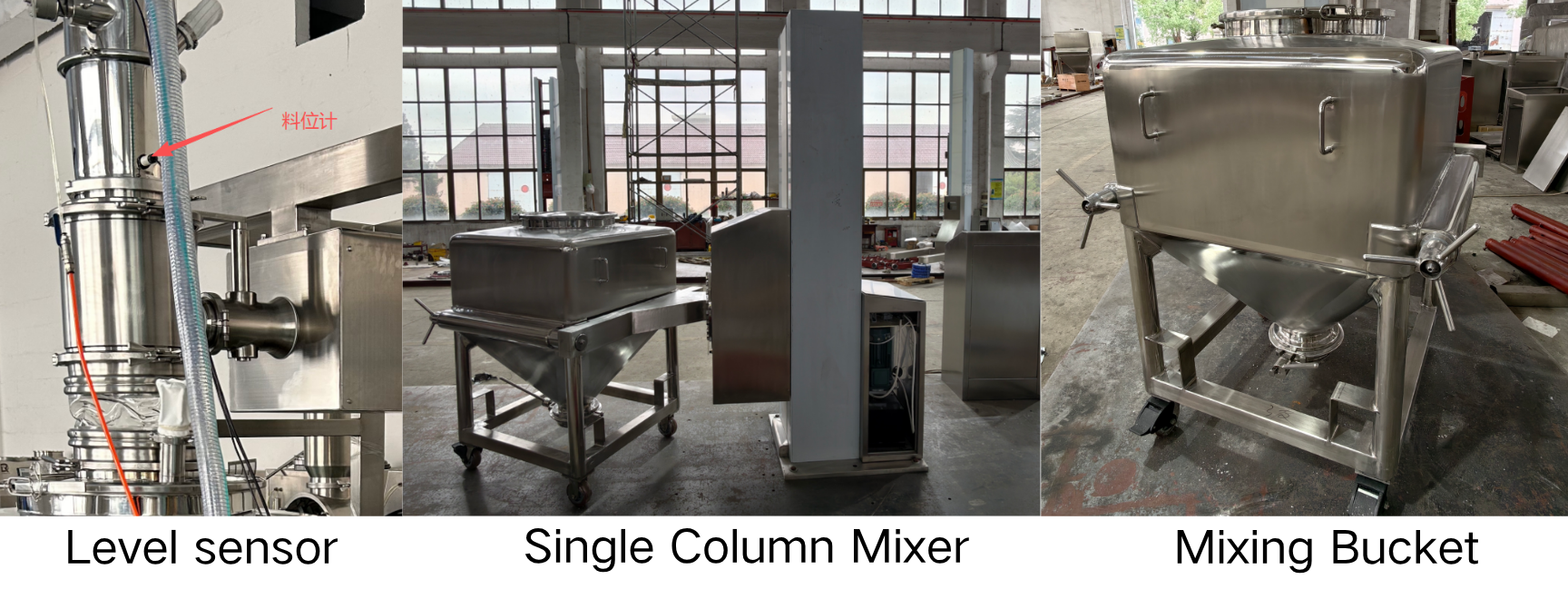

  • Single Column Mixer - 1 unit
  • Mixing Bucket - 3 units
  • Vacuum Material Loading Machine - 1 unit
  • Cone Mill - 1 unit
  • Vacuum Material Loading Machine - 1 unit

B. System Highlights

1. 600L High-Efficiency Mixing System

1. Purpose: Core mixing equipment for homogeneous powder blending

2. Advantages: Large batch capacity, dead-zone-free mixing, SS316 hygienic material

2. 3-Bucket Parallel Operation

1. Purpose: Simultaneous storage, transfer, and mixing operations

2. Advantages: Eliminates batch waiting time, enables continuous production, maximizes equipment utilization

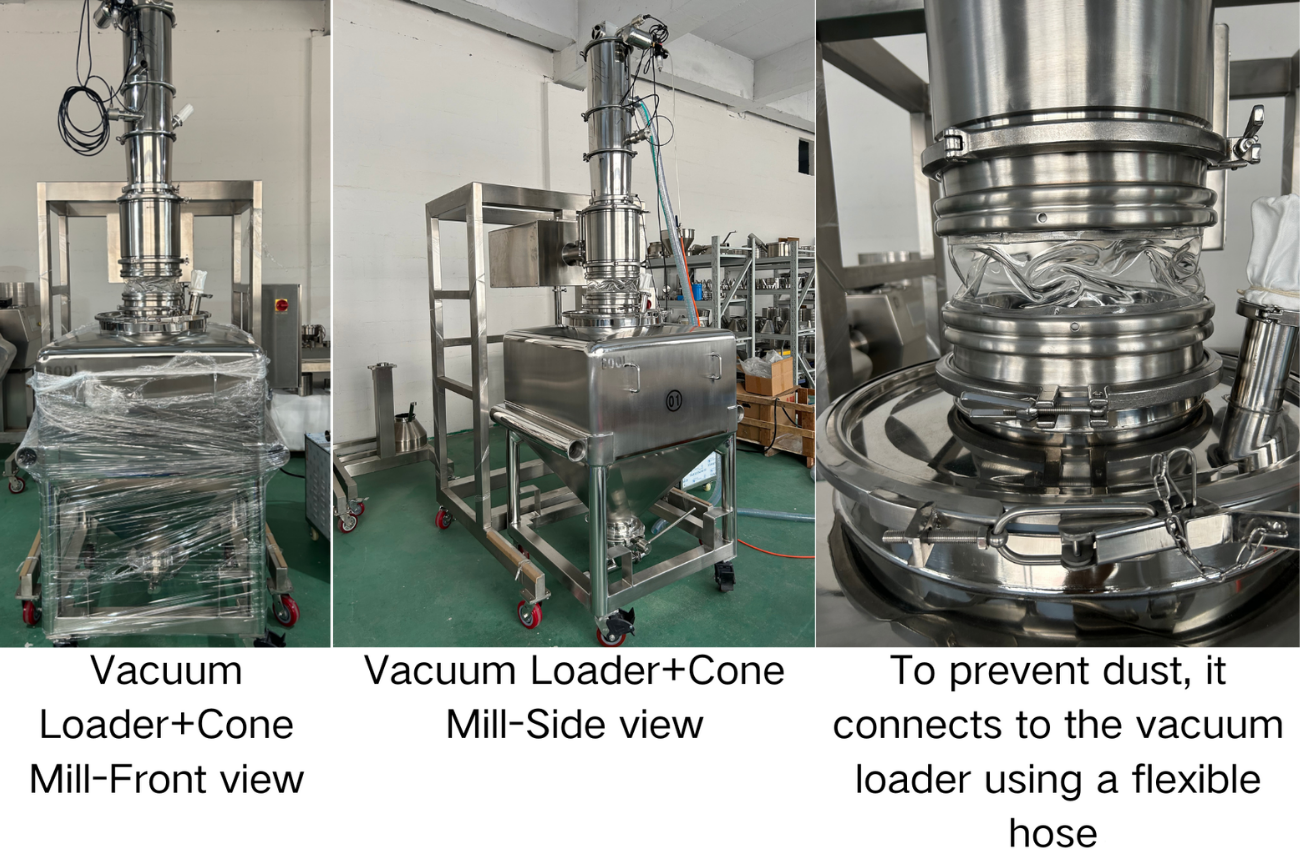

3. Dual Vacuum Loading Solution

1. Purpose: Mobile + stationary combination feeding system

2. Advantages: Flexible material distribution, dust-free transfer, 600kg/h efficient capacity

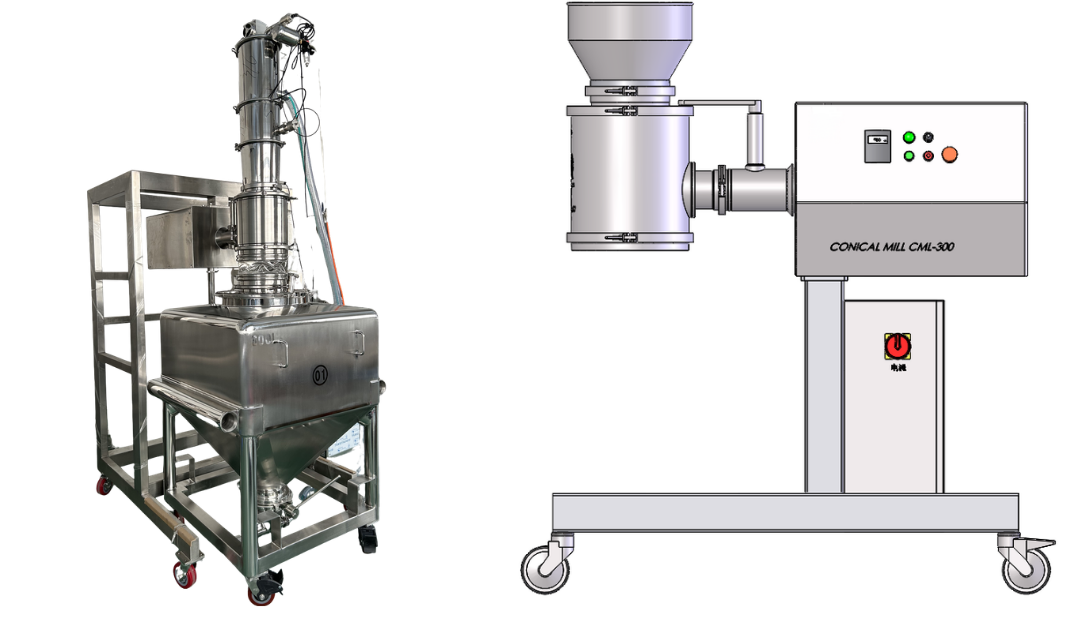

4. Precision Particle Control Cone Mill

1. Purpose: Particle size uniformity processing

2. Advantages: 2.5mm screen precision control, modular easy maintenance, improves product consistency

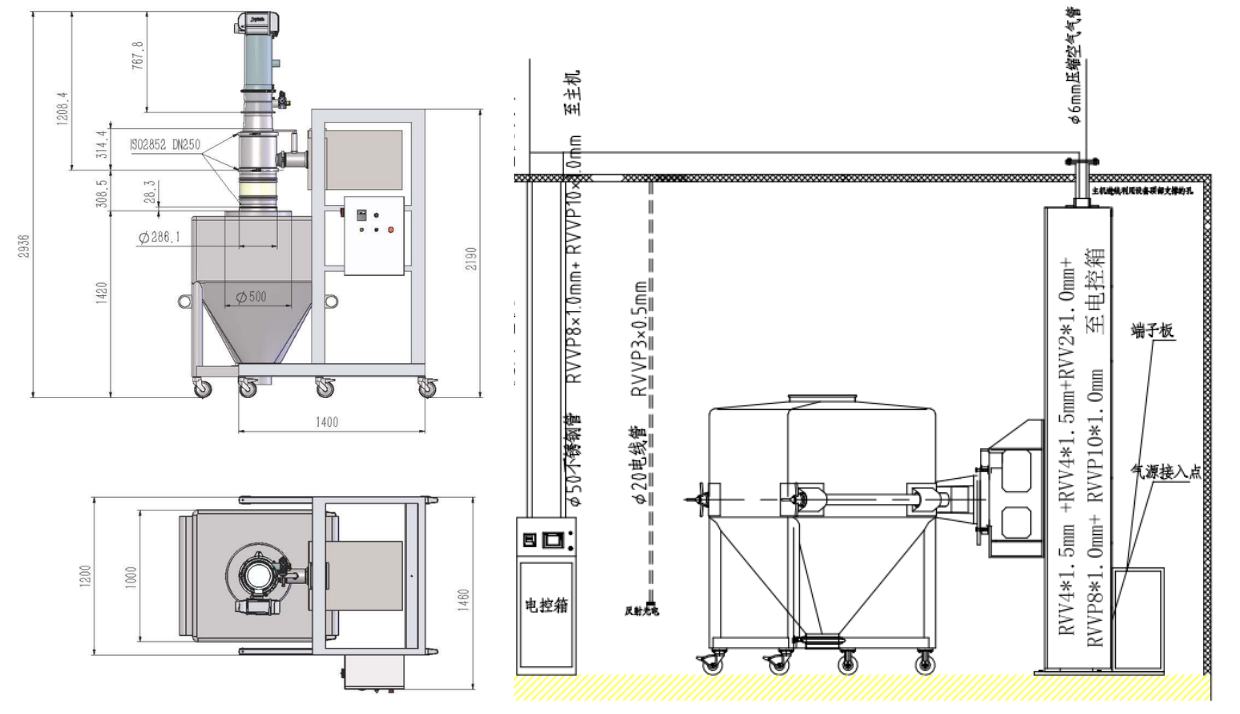

5. 3-Meter Height Compact Design

1. Purpose: Adapts to the client's space height limitations

2. Advantages: Maximized space utilization, CE-certified safety, optimized workflow efficiency

Packaged picture

E. Related Videos:

---

CSC3139 Mixer Testing Video

https://youtu.be/97280gAu4zg
