Product Code: PP178B
Related Video

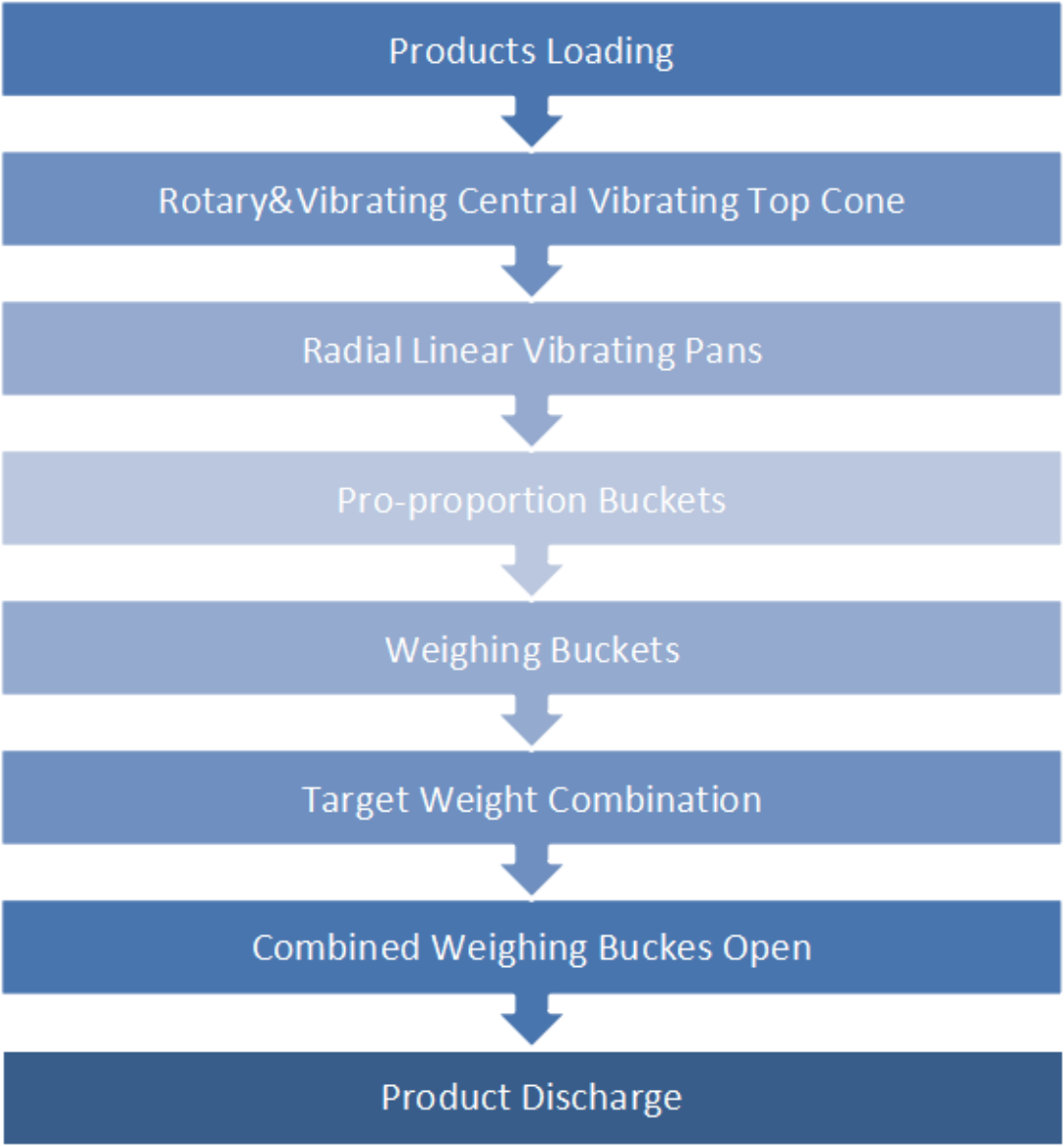

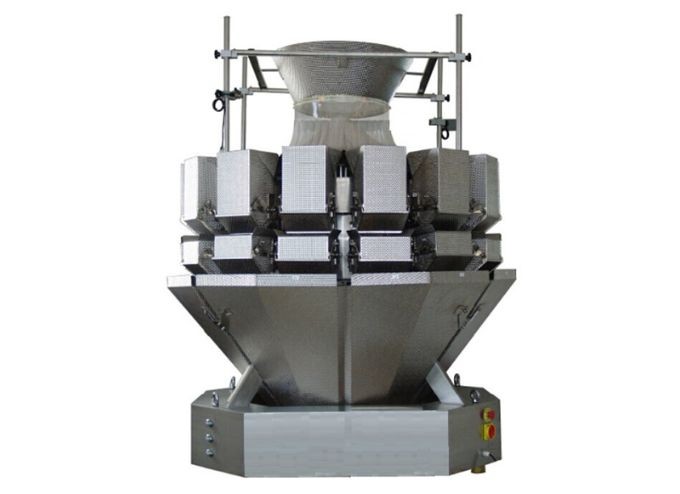

This machine is applicable for weighing of solidity products by way of combination mode, subject to special customization of salad vegetables.
Features
l Suitable for thin‚ sticky and fragile materials‚ such as salads‚ fruits and vegetables‚ etc
l Product contact parts adopt dimple stainless steel 304 structure
l High-precision load cell and modular stepper motor actuator unit

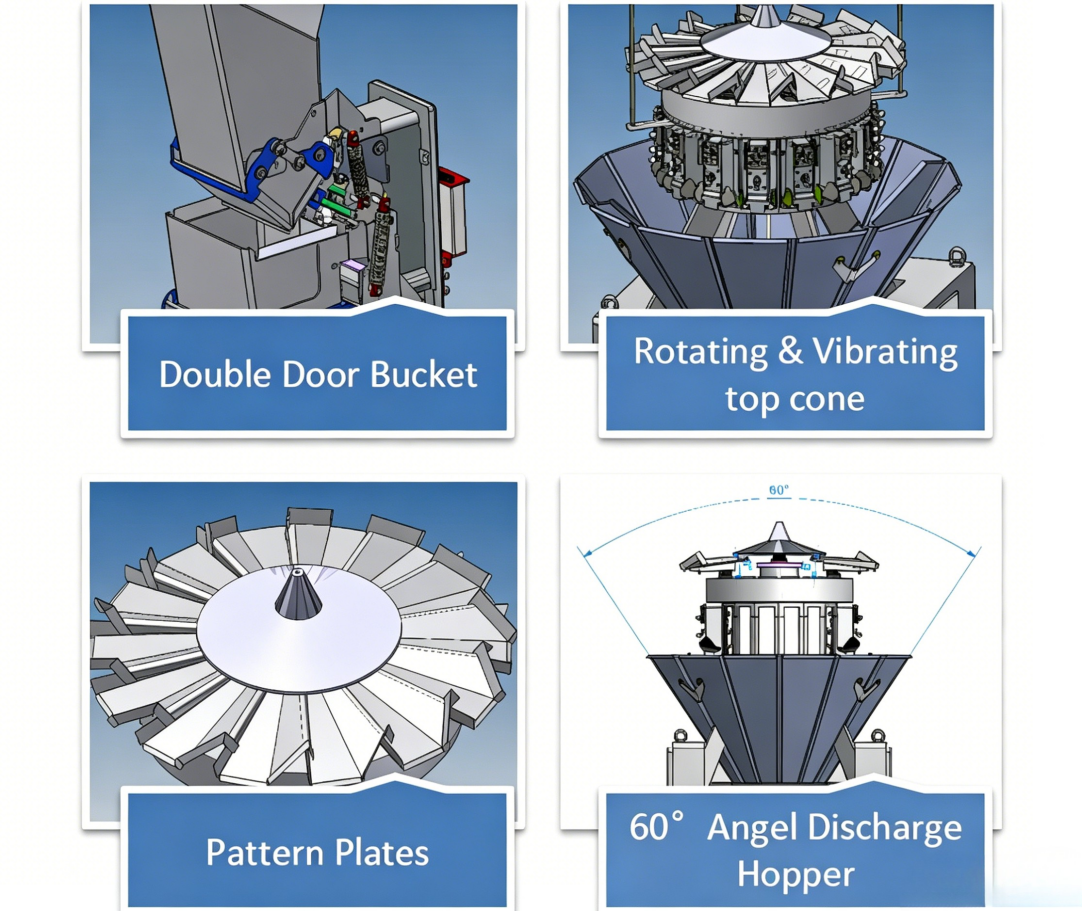

l The proportioning hopper and the weighing hopper are double-door type hoppers
l The main vibrating plate can be selected from rotating type or vibrating type
l Intelligent parameter settings are carried out through the interactive touch screen HMI‚ multiple sets of parameter settings are stored‚ and a variety of material requirements are realized. The help menu makes it easy to learn and use
l The equipment is equipped with a waterproof and moisture-proof electrical box to meet the environmental waterproof and moisture-proof requirements and the body is clean
l The 60-degree included angle small dimple chute is conducive to the falling of materials and effectively controls the sticking phenomenon
l Inclined vibration plate with baffle
l Product contact parts can be removed without tools for easy cleaning
l The amplitude of each line can be adjusted independently during operation to make feeding more uniform
l Automatic self-diagnosis‚ which can automatically pause when there is a shortage of materials‚ making the weighing more stable
l Interchangeable hoppers‚ modular actuator units‚ discs or other control panels derived from modular design
l Reject system and re-circulate conveyor belt
l Mixing function
l Multi Dump
l Multi-points discharge

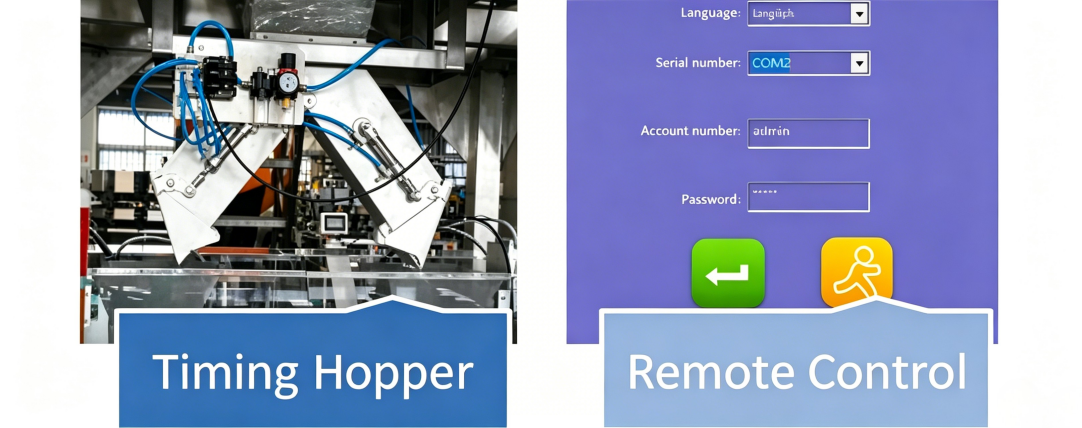

l Special timing discharge hopper
l Stainless steel 316 for product touching parts and/or stainless steel 304 central support and bucket driven kits
l Remote control through blue tooth, LAN
Advantages
l 60°dimple chute + baffled incline plate for smooth flow
l Quick disassembly, no tools required
l Independent amplitude adjustment per line
l Rotating/vibrating plate, double-door hoppers
l Waterproof electrical box, applicable for salad products and easy washdown
Technical Specification
| Catalogue/4K-xxxx | 1025 | 1050 | 1075 |
| Pro-proportion Bucket | 10 | 10 | 10 |
| Weigh Bucket | 10 | 10 | 10 |
| Bucket Open Doors | Double doors | Double doors | Double doors |
| Weighing Range-gram | 10-1,000 | 10-2,000 | 10-3,000 |
| Weighing Accuracy -gram | +/- 0.5-2 | +/- 1-5 | +/- 1-5 |
| Weighing Speed -WPM | 0-25 | 0-20 | 0-35 |
| Bucket Volume-Liter | 2.5 | 5 | 7.5 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 1.0 Kw | 1.5 kw | 2.0 kw |
| Catalogue/4K-xxxx | 1425 | 1450 | 1475 |
| Pro-proportion Bucket | 14 | 14 | 14 |
| Weigh Bucket | 14 | 14 | 14 |
| Bucket Open Doors | Double doors | Double doors | Double doors |
| Weighing Range-gram | 10-1,000 | 10-2,000 | 10-3,000 |
| Weighing Accuracy -gram | +/- 0.5-2 | +/- 1-5 | +/- 1-5 |
| Weighing Speed -WPM | 0-35 | 0-30 | 0-30 |
| Bucket Volume-Liter | 2.5 | 5 | 7.5 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 1.4 Kw | 2.0 kw | 2.0 kw |
