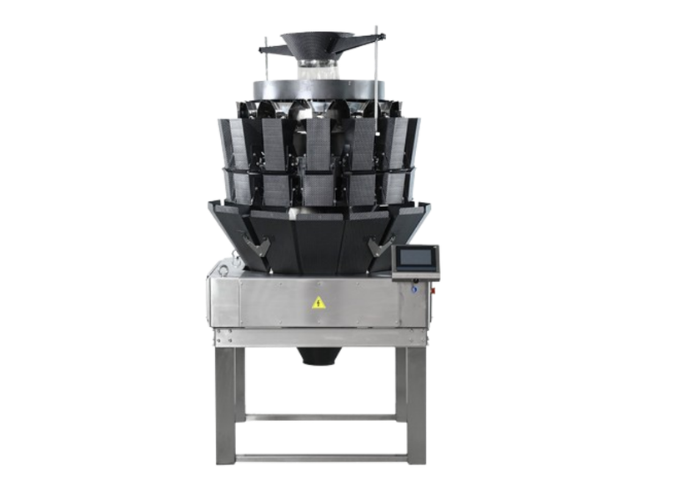

Product Code: PP178C
Adopts linear vibrating screw feeding to avoid material sticking and blockage for sticky products.
Related Video
Suitable for sticky materials‚ such as shredded radish‚ radish cubes‚ etc.
Features
l Suitable for sticky materials‚ such as shredded radish‚ radish cubes‚ etc
l The product contact surface is made of dimple plate and Teflon-coated 304 stainless steel structure
l Product contact parts can be removed without tools for easy cleaning
l Intelligent parameter settings are performed through the interactive touch screen HMI‚ multiple sets of parameter settings are stored‚ and a variety of material requirements are realized. The help menu makes it easy to learn and use
l High-precision weighing sensor and modular stepper motor actuator unit‚ automatically tare after each discharging
l The amplitude of each line can be adjusted independently during operation to make feeding more uniform
l Interchangeable hoppers‚ modular actuator units‚ discs or other control panels derived from modular design
l Automatic self-diagnosis‚ automatic pause when there is a shortage of materials‚ making weighing more stable
l The equipment is equipped with a waterproof and moisture-proof electrical box to meet the environmental waterproof and moisture-proof requirements and the body is clean
l Line vibrating screw feeding‚ no vibration
l Single or double door buckets
l Rotating & Vibrating top cone
l Reject system and re-circulate conveyor belt
l Mixing function
l Counting function
l Multi Dump
l Multi-points discharge
l Special timing discharge hopper
l Dimple and/or Stainless steel 316 for product touching parts
l IP 65 construction
l Stainless steel 316 for product touching parts and/or stainless steel 304 central support and bucket driven kits
l Remote control through blue tooth, LAN
l Short drop discharge hopper for fragile product
Advantages

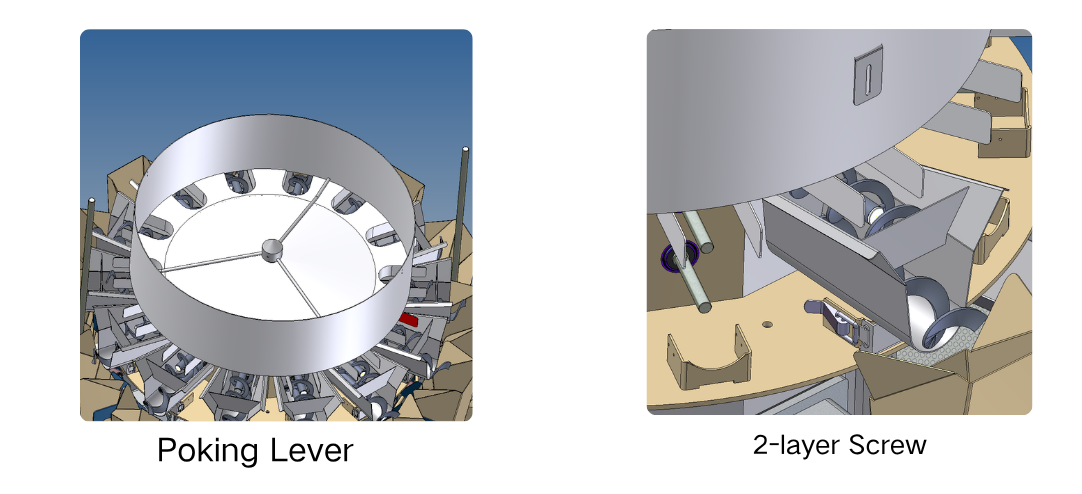

l Screw feeder with dimple Teflon-coated surfaces
l Quick disassembly for easy residue removal
l Prevent material from sticking to the discharge hopper
l Waterproof electrics for food packing
Technical Specification
| Catalogue/PP178-C-xxxx | 1016SD | 1416SD | 1430SD | 1430S | 1450S |
| Pro-proportion Bucket | 10 | 14 | 14 | 14 | 14 |
| Weigh Bucket | 10 | 14 | 14 | 14 | 14 |
| Bucket Open Doors | Single door | Single door | Double doors | Double doors | Double doors |
| Weighing Range-gram | 10-2,000 | 10-2,000 | 10-3,000 | 10-3,000 | 10-5,000 |
| Weighing Accuracy -gram | +/- 10-50 | +/- 10-50 | +/- 10-50 | +/- 10-50 | +/- 10-50 |
| Weighing Speed -WPM | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 |
| Bucket Volume-Liter | 1.6 | 1.6 | 3.0 | 3.0 | 5.0 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 2.0 Kw | 2.0 kw | 2.5 kw | 2.5 kw | 2.0 kw |
