Product Code: PP178D
Equipped with special buckets and discharge chutes for gentle feeding and anti-crushing for fragile goods.
Related Video
Suitable for brittle and fragile materials‚ such as freeze-dried berries‚ etc.
Features
l Suitable for brittle and fragile materials‚ such as freeze-dried berries‚ etc
l Product contact parts adopt stainless steel 304 structure
l Product contact parts can be removed without tools‚ easy to clean
l Intelligent parameter settings are performed through the interactive touch screen HMI‚ multiple sets of parameter settings are stored‚ and a variety of material requirements are realized. The help menu makes it easy to learn and use
l High-precision weighing sensor and modular stepper motor actuator unit‚ automatically tare after each discharging
l The amplitude of each line can be adjusted independently during operation to make feeding more uniform
l Interchangeable hoppers‚ modular actuator units‚ discs or other control panels derived from modular design
l Automatic self-diagnosis‚ automatic pause when there is a shortage of materials‚ making weighing more stable

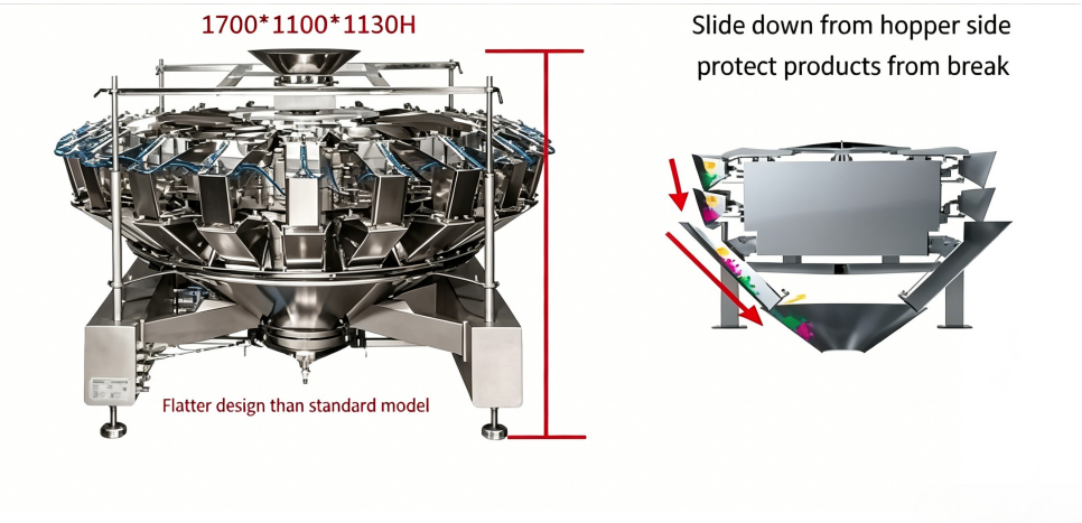

l Special bucket and discharge chute design for fragile products
l Single or double door buckets
l Rotating & Vibrating top cone
l Reject system and re-circulate conveyor belt
l Mixing function
l Counting function
l Multi Dump
l Multi-points discharge
l Special timing discharge hopper
l Dimple and/or Stainless steel 316 for product touching parts
l IP 65 construction
l Stainless steel 316 for product touching parts and/or stainless steel 304 central support and bucket driven kits
l Remote control through blue tooth, LAN
l Short drop discharge hopper for fragile product
Advantages
l Special buckets and discharge chutes designed，prevent crushing and damage
l All product-contact parts are removable without tools for quick and thorough sanitation
l Interchangeable hoppers and modular actuator units
Technical Specification
| Catalogue/PP178-D-xxxx | 1016F | 1416F | 1475F |
| Pro-proportion Bucket | 10 | 14 | 14 |
| Weigh Bucket | 10 | 14 | 14 |
| Weighing Range-gram | 10-1,000 | 10-2,000 | 10-3,000 |
| Weighing Accuracy -gram | +/- 0.5-2 | +/- 0.5-2 | +/- 0.5-2 |
| Weighing Speed -WPM | 0-55 | 0-12 | 0-70 |
| Bucket Volume-Liter | 1.6 | 1.6 | 3.0 |
| Power Supply | AC220 50/60Hz | AC220 50/60Hz | AC220 50/60Hz |
| Power Consumption | 2.0 Kw | 2.0 kw | 2.5 kw |
