CSC288 Automatic Candy Bag Form Fill Seal Packing Machine

Dec. 11, 2019


Automatic Candy Bag Form Fill Seal Packing Machine


Project Information


1) Project Code: CSC288

2) Project Location: Finland

3) Product: Candy

4) Packaging: Final bag with euro style hang hole

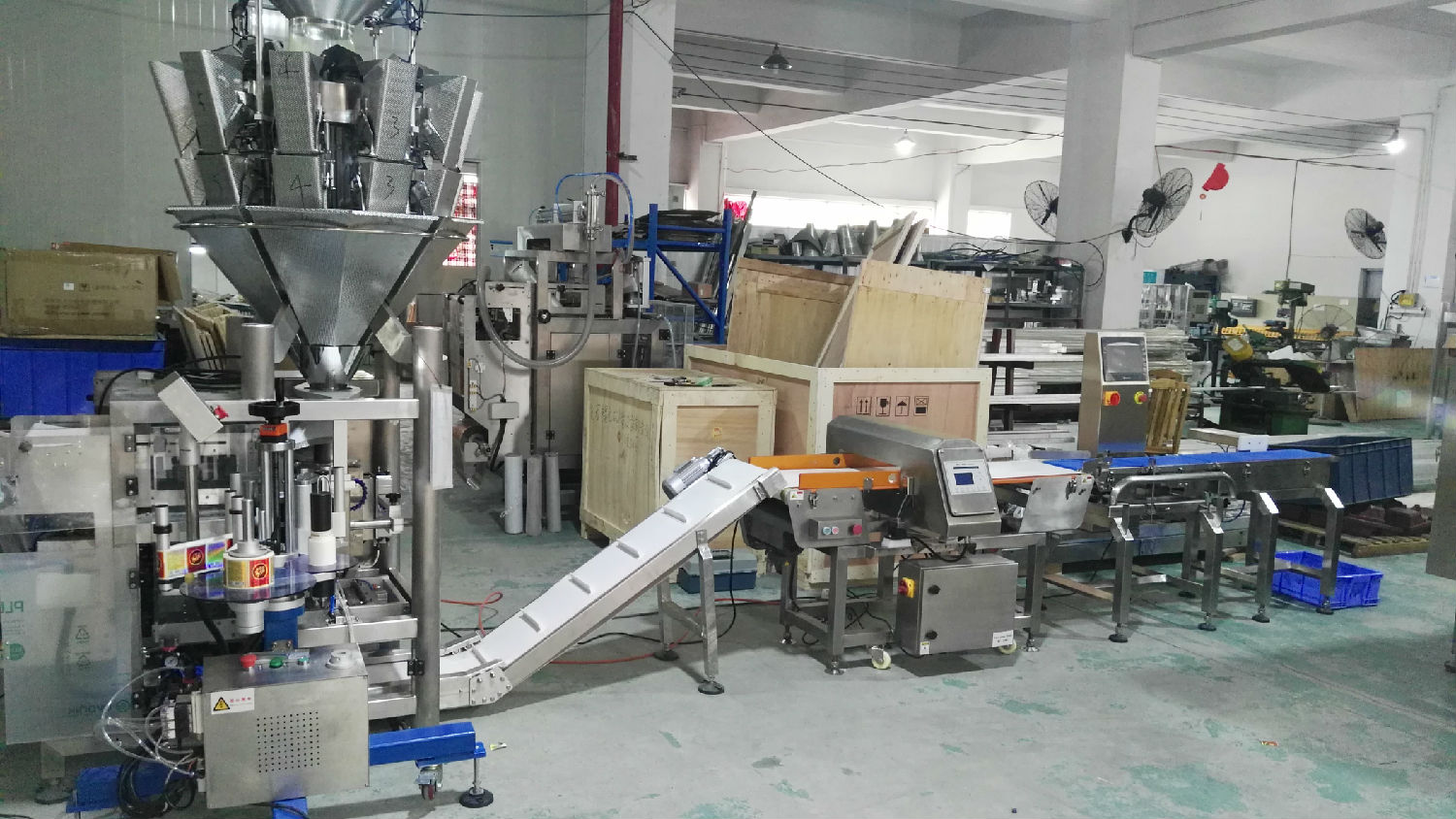

System Overview

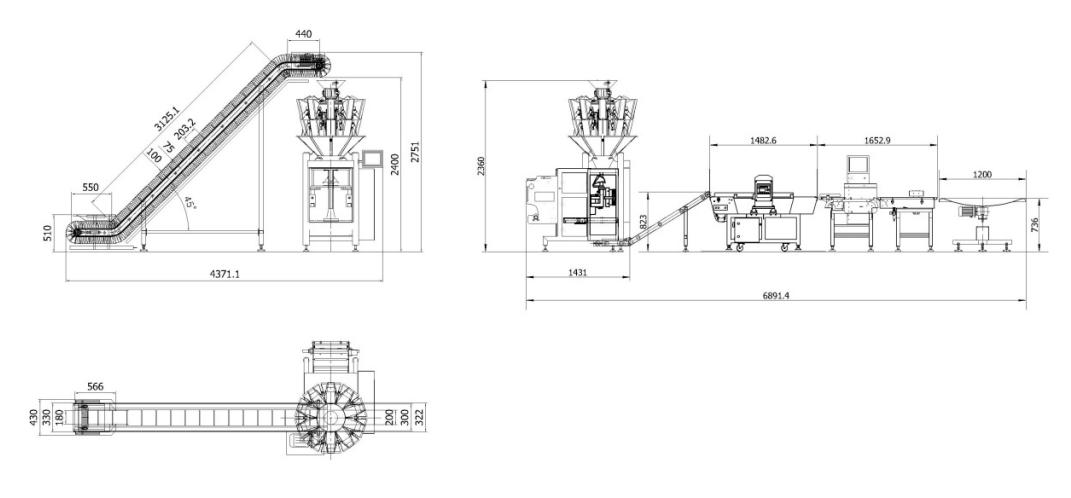

Packaging Line Layout

The system design as per the layout drawing below , can be installation reference

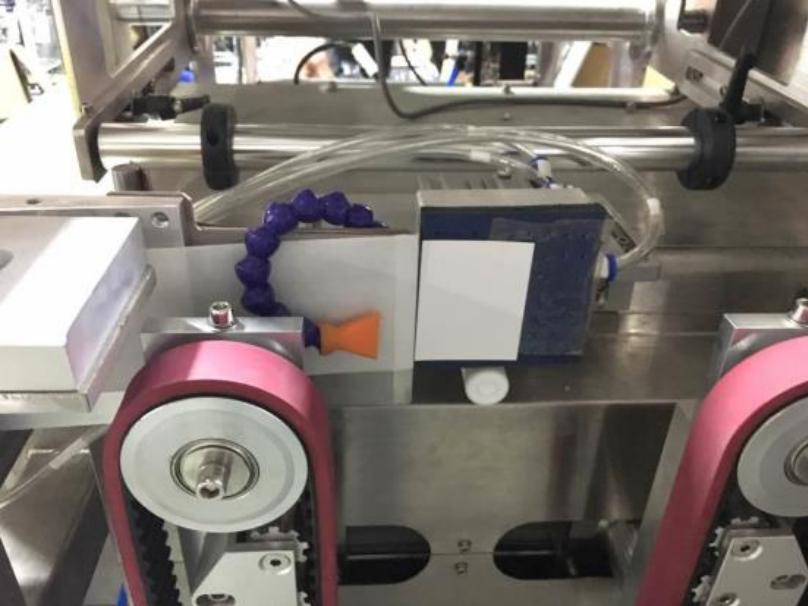

Labeling Head

Label blowing pipe installation , to make the proper direct of the air flow towards the label

sucking and reinforce plate , following is the reference photo


S‐shaped conveyor

Key detail of Conveyor

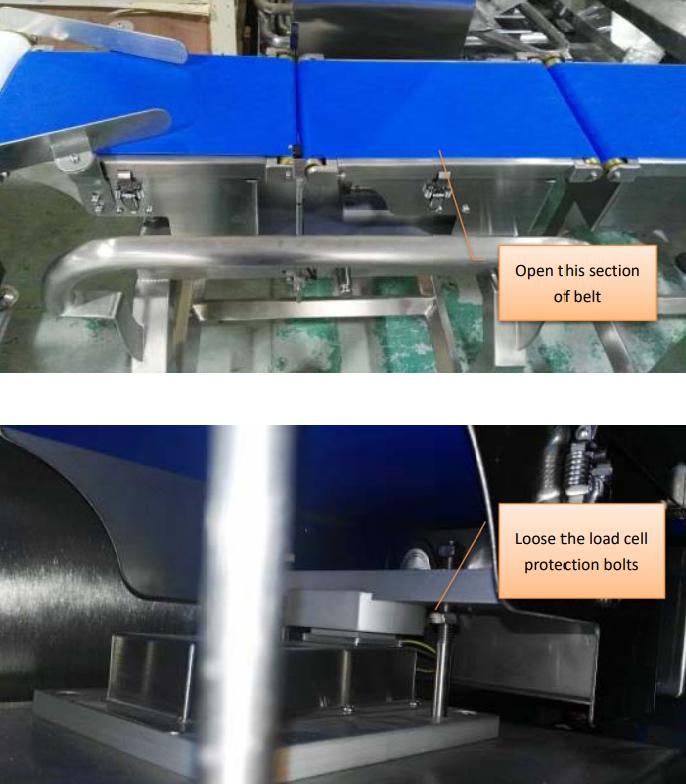

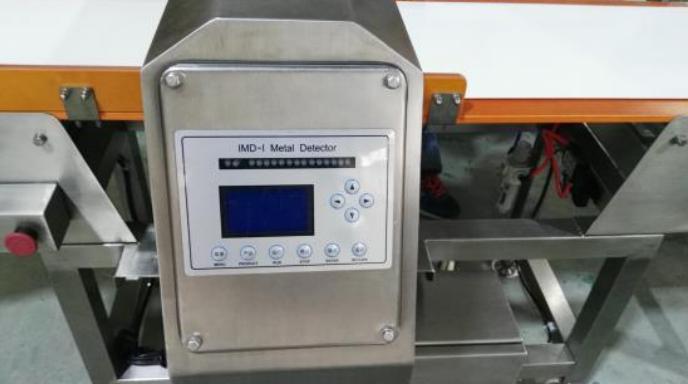

Check weigher                                                                      Metal Detector




Related Video


Following is the related video link on our Youtube site


1)320 mm length bag forming and sealing with twice film pulling

Please check video


2)270 mm length bag forming and sealing with single film pulling

Please check video



3)S-sharped conveyor

Please check video


4)Final Product Tuning Table

Please check video


5)Labeling while bag forming , filling and sealing

Please check video


6)Main Packaging Machine connect to metal detector and weight checker

Please check video



For more technical support,please contact us at cs@gloex.com.cn
